AR80.35-P-0001TB Remove/Install Keyless GO Control Module

AR80.35-P-0001TB Remove/Install Keyless GO Control Module
- with CODE (889) Keyless Go
- Interior compartment module control unit







1 Move selector lever to position "D"
2 Disconnect ground line of battery

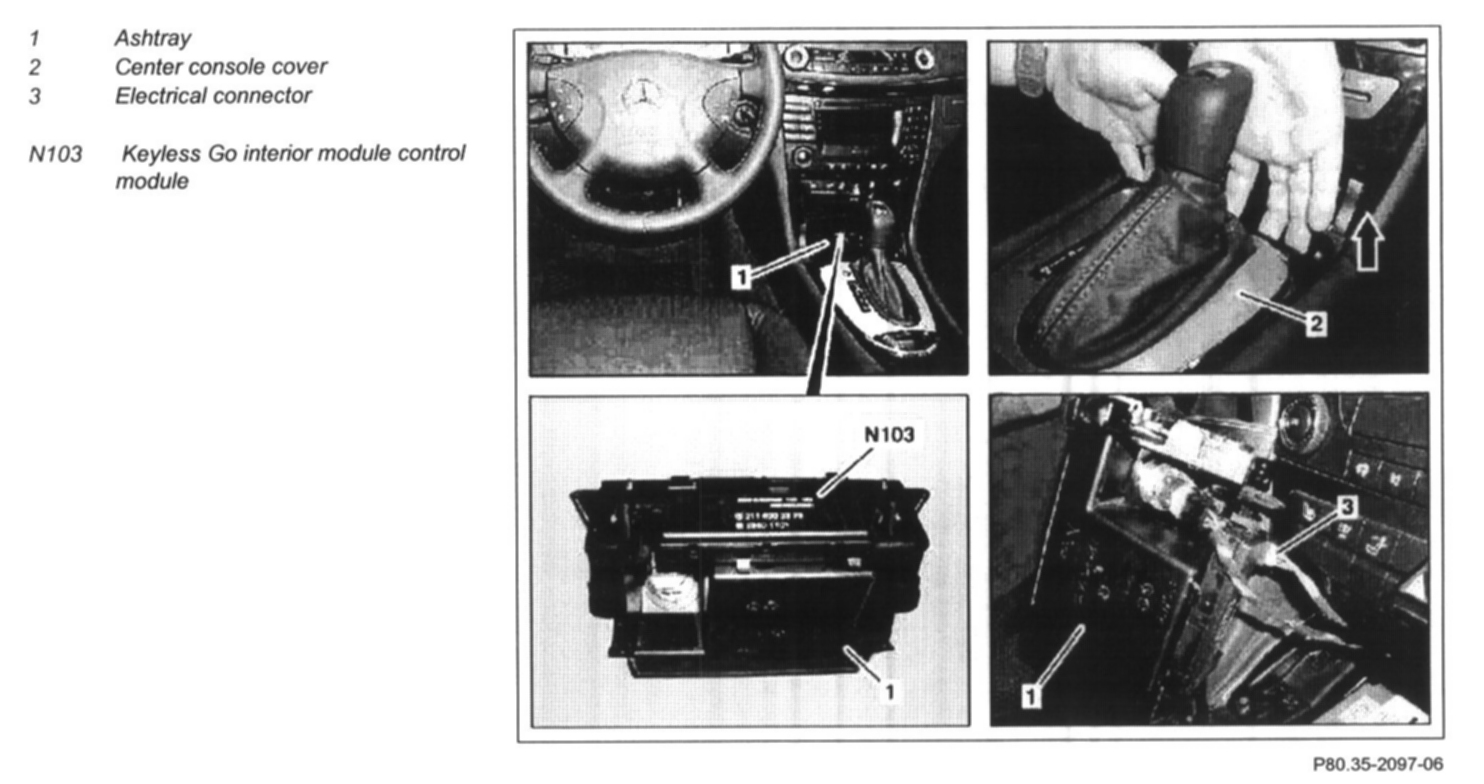

3 Open ashtray (1)
4 Unclip center console cover (2) in the direction of the arrow out of center console
5 Pull ashtray (1) out of center console until the electrical connector (3) is accessible
6 Separate electrical connector (3)
7 Unclip Keyless Go interior module control module (N103) from ashtray (1)
8 Install in the reverse order
