AR54.21-P-1258TA Remove/Install Sam With Fuse and Relay Box, Rear

AR54.21-P-1258TA Remove/Install Sam With Fuse and Relay Box, Rear

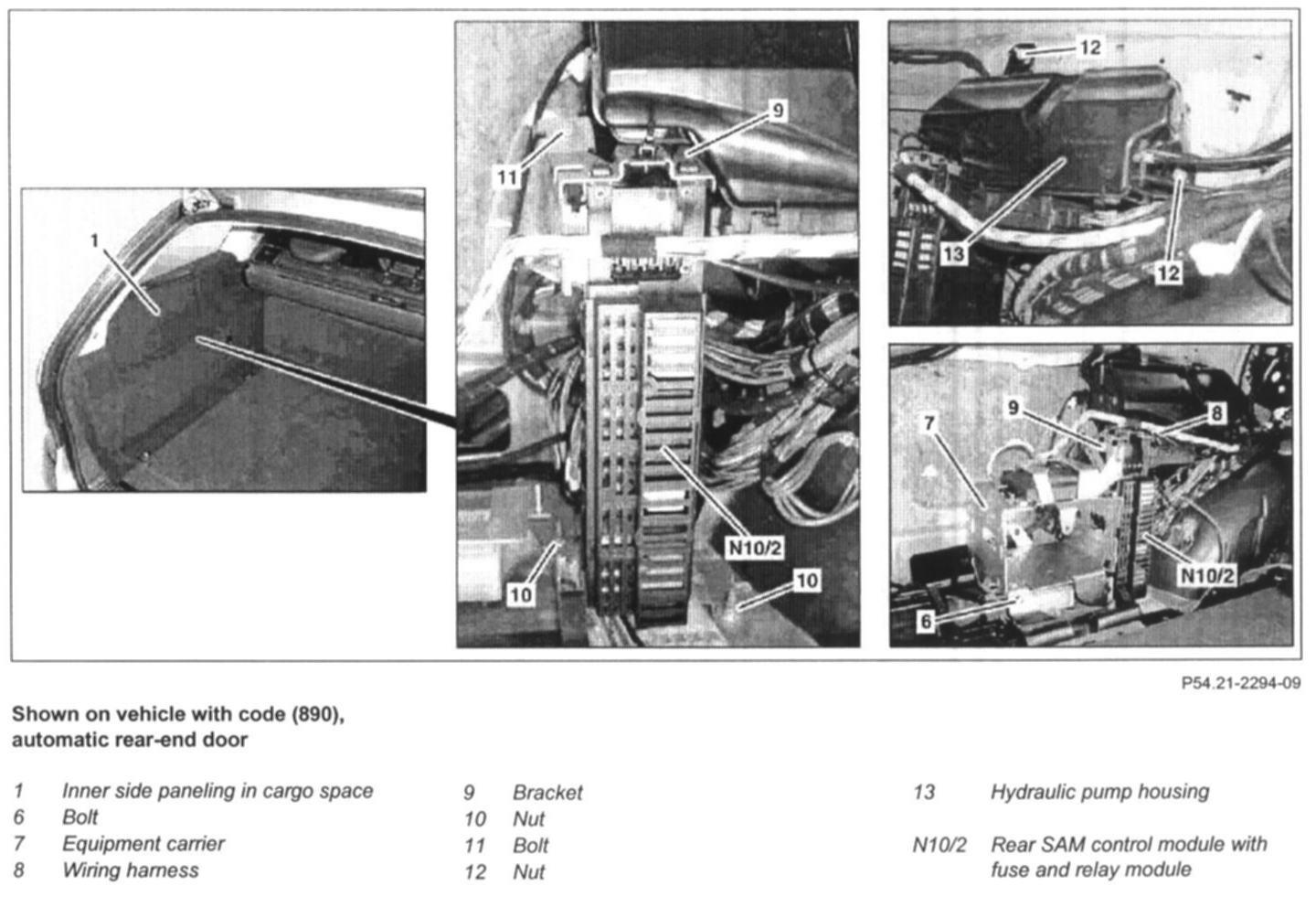

Shown On Vehicle With Code (890), Automatic Rear-end Door:

1 Connect STAR DIAGNOSIS and stage basic data from rear SAM control module with fuse and relay module (N10/2) in STAR DIAGNOSIS

NOTE
- Only when installing new rear SAM control module with fuse and relay module (N10/2)
- Installation: Transfer staged basic data to new rear SAM control module with fuse and relay module (N10/2)
- Diagnosis system STAR DIAGNOSIS

2 Disconnect ground cable of battery
3 Remove left side inner paneling of load compartment (1)
4 Remove left side paneling in rear
5 Remove hazard warning triangle
6 Unscrew bolt (6), remove equipment carrier (7) and place to one side
7 Remove wiring harness (8) from bracket (9) and place to one side

NOTE: Installation, replace tie straps

8 Unscrew nuts (10) and bolt (11)
9 Unscrew nuts (12) and place hydraulic pump housing (13) to one side
10 Unplug electrical connectors from rear SAM control module with fuse and relay module (N10/2) and remove rear SAM control module with fuse and relay module (N10/2) from load compartment

NOTE: Number of electrical connectors depends on equipment configuration.

11 Install in the reverse order
