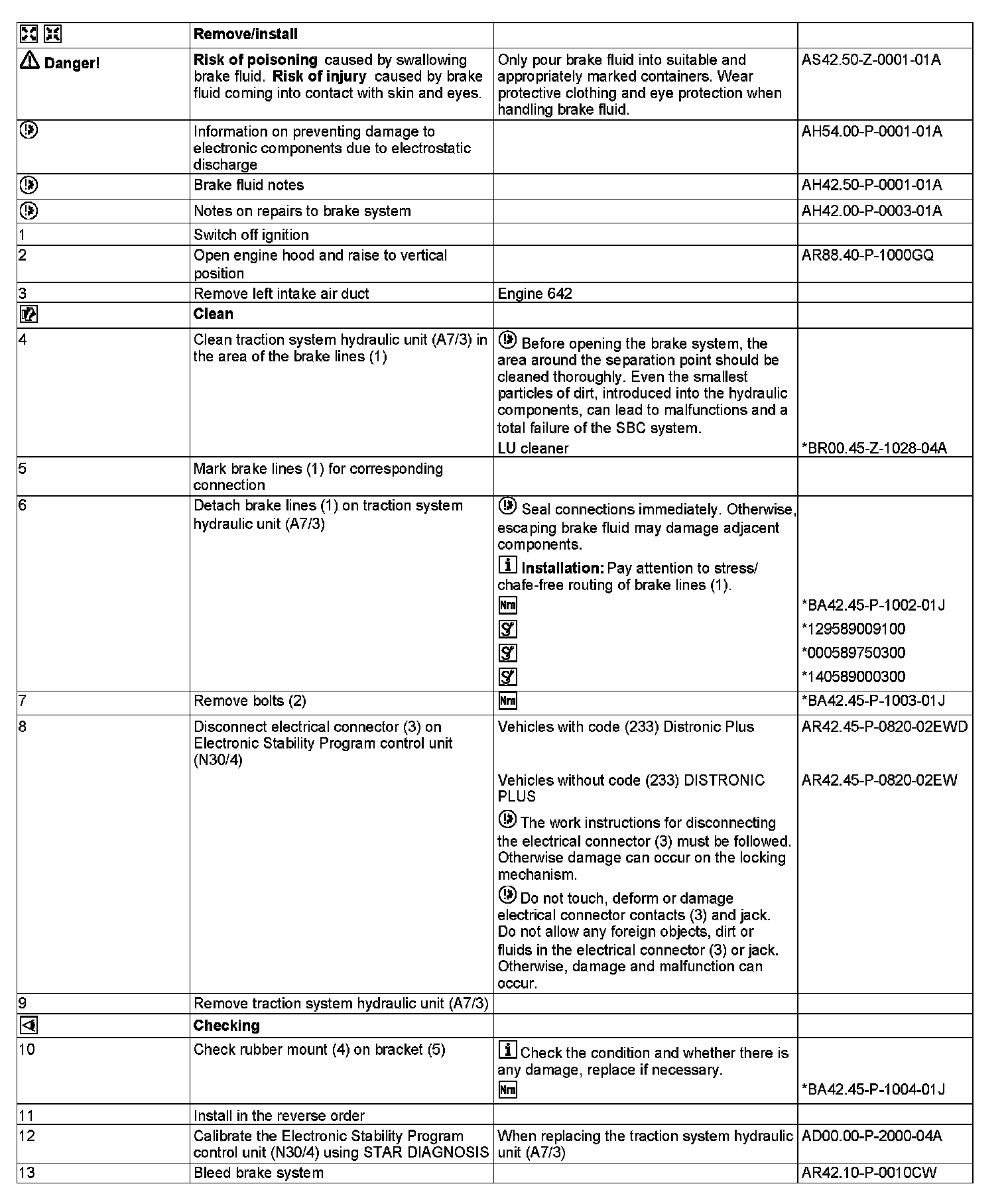

AR42.45-P-0817GQ Remove/Install Electronic Stability Program (ESP) Hydraulic Unit




AR42.45-P-0817GQ Remove/Install Electronic Stability Program (ESP) Hydraulic Unit
MODEL 166

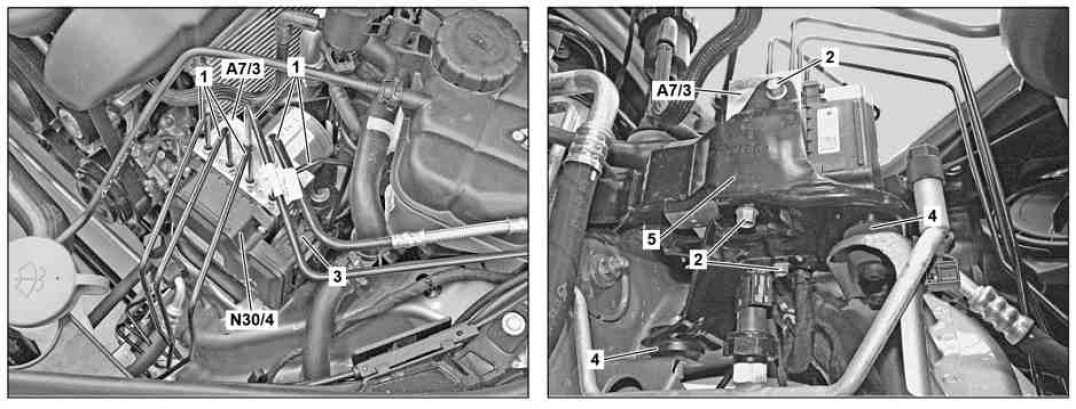

Shown on model 166.057

1 Brake line
2 Screw
3 Electrical connector
4 Rubber bushing
5 Bracket

A7/3 Traction system hydraulic unit
N30/4 Electronic Stability Program control unit











000 589 75 03 00
Box wrench bit





140 589 00 03 00
Box wrench bit





129 589 00 91 00
Set of stop plugs
