AR42.45-P-0820EW Remove/Install Electronic Stability Program (ESP) Control Unit



AR42.45-P-0820EW Remove/install electronic stability program (ESP) control unit

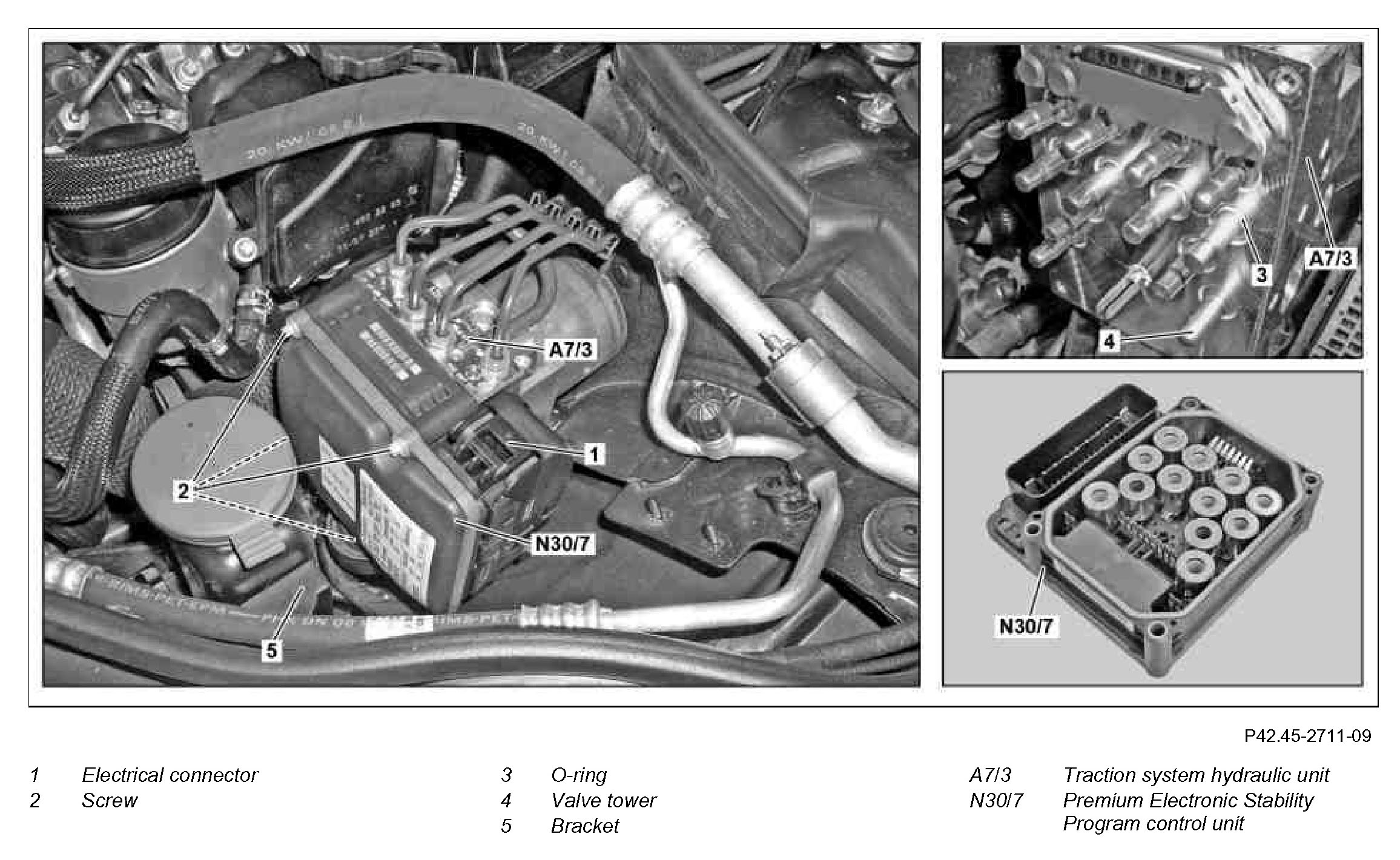

Component Identification:

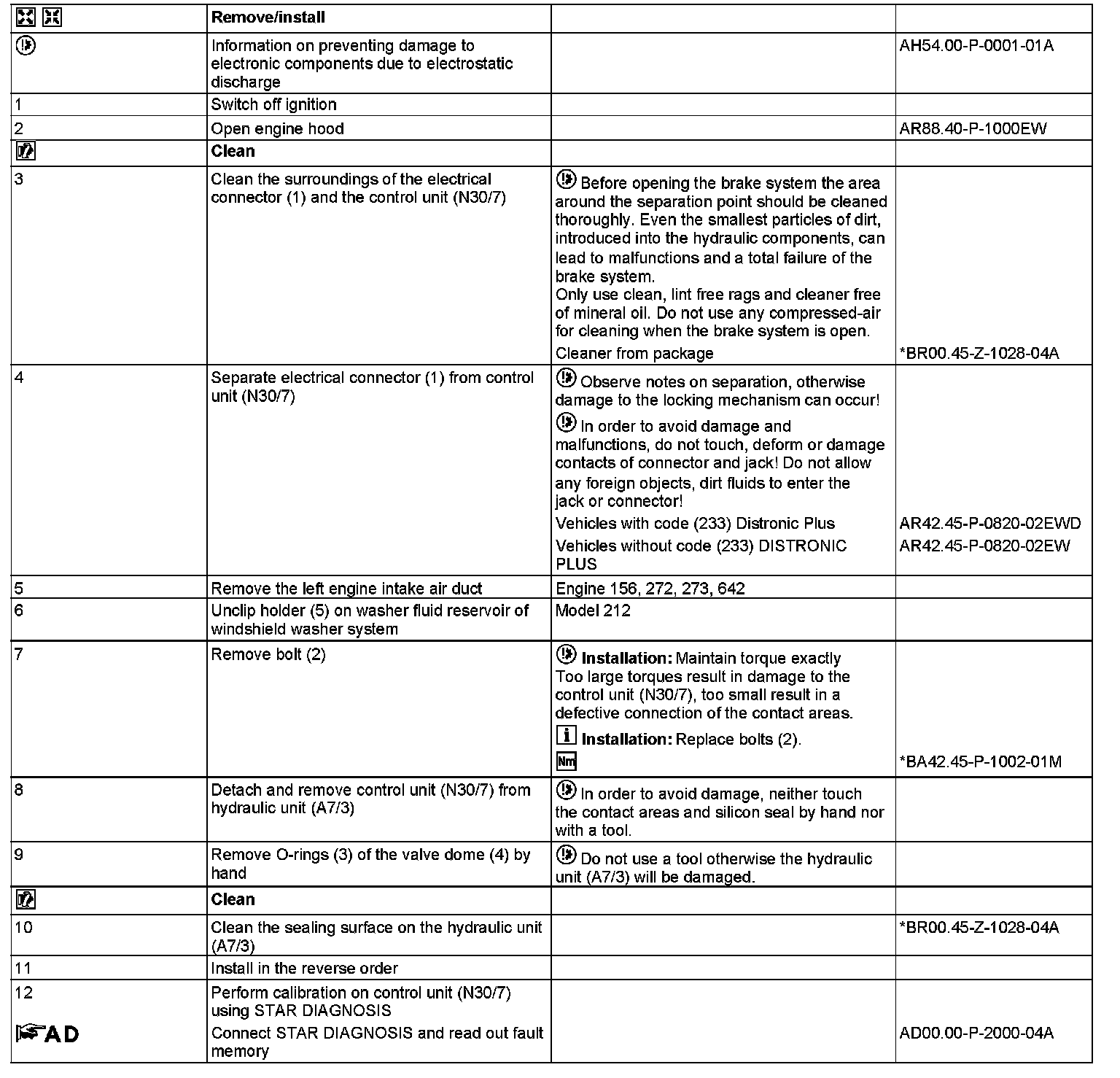

Steps 1-12:




Electronic Stability Program (ESP):




Repair Materials:
