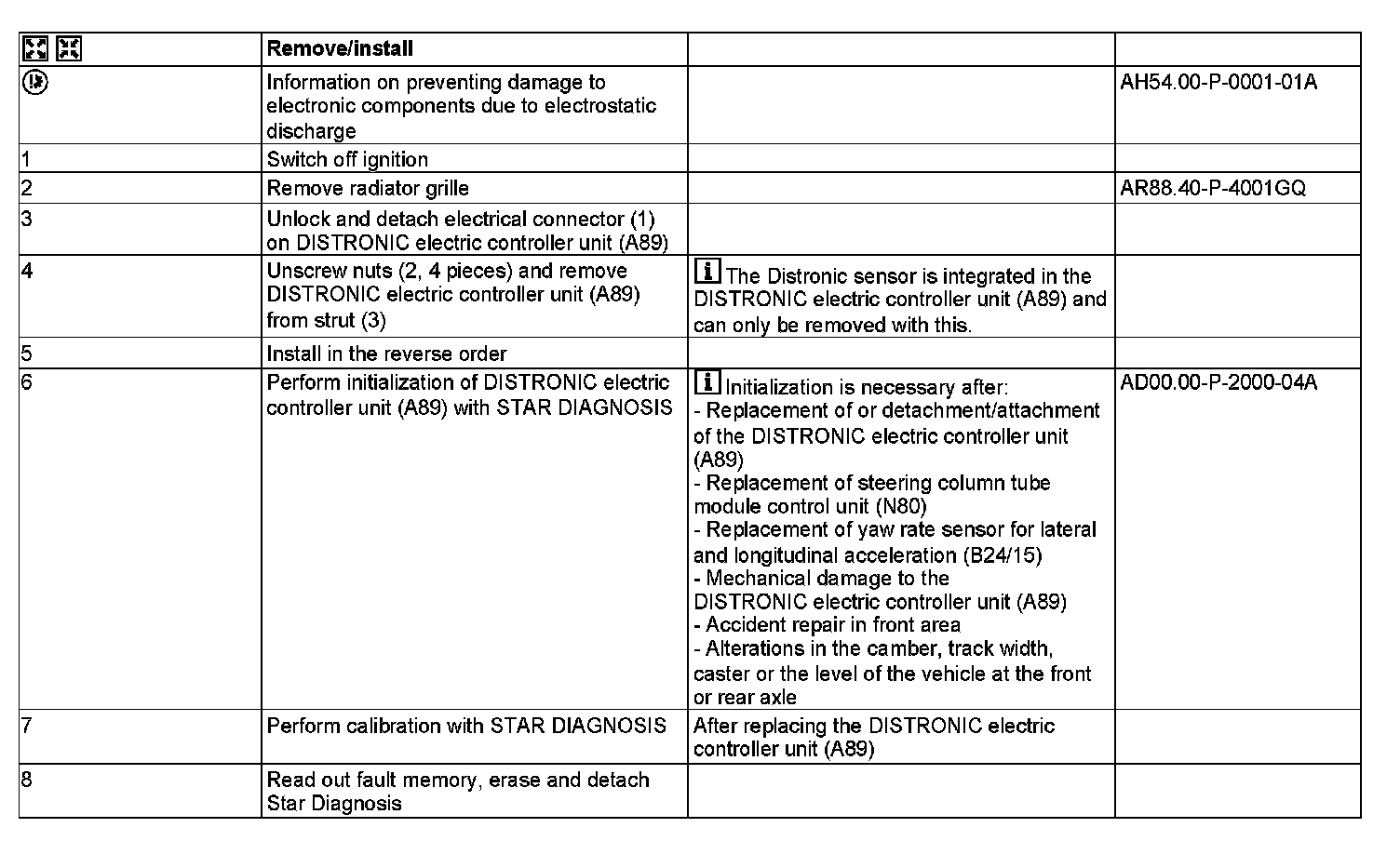

AR30.30-P-1010GQ Remove/Install Distronic Sensor (DTR)
AR30.30-P-1010GQ Remove/Install Distronic Sensor (DTR) MODEL 166
-
with CODE (233) the Plus

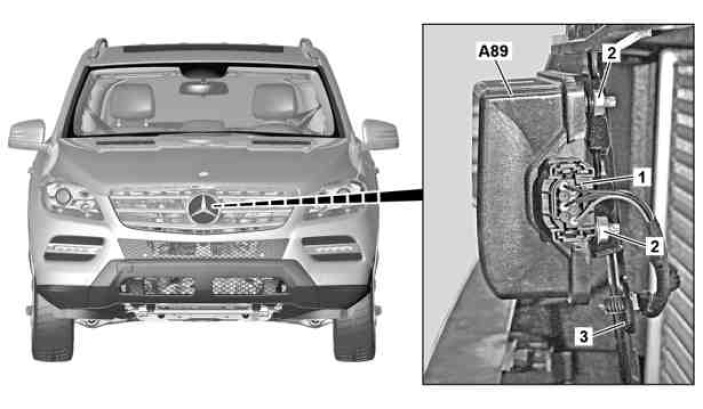

Shown: model 166.024 1 Electrical connector
2 Nut
3 Strut
A89 DISTRONIC electric controller unit
