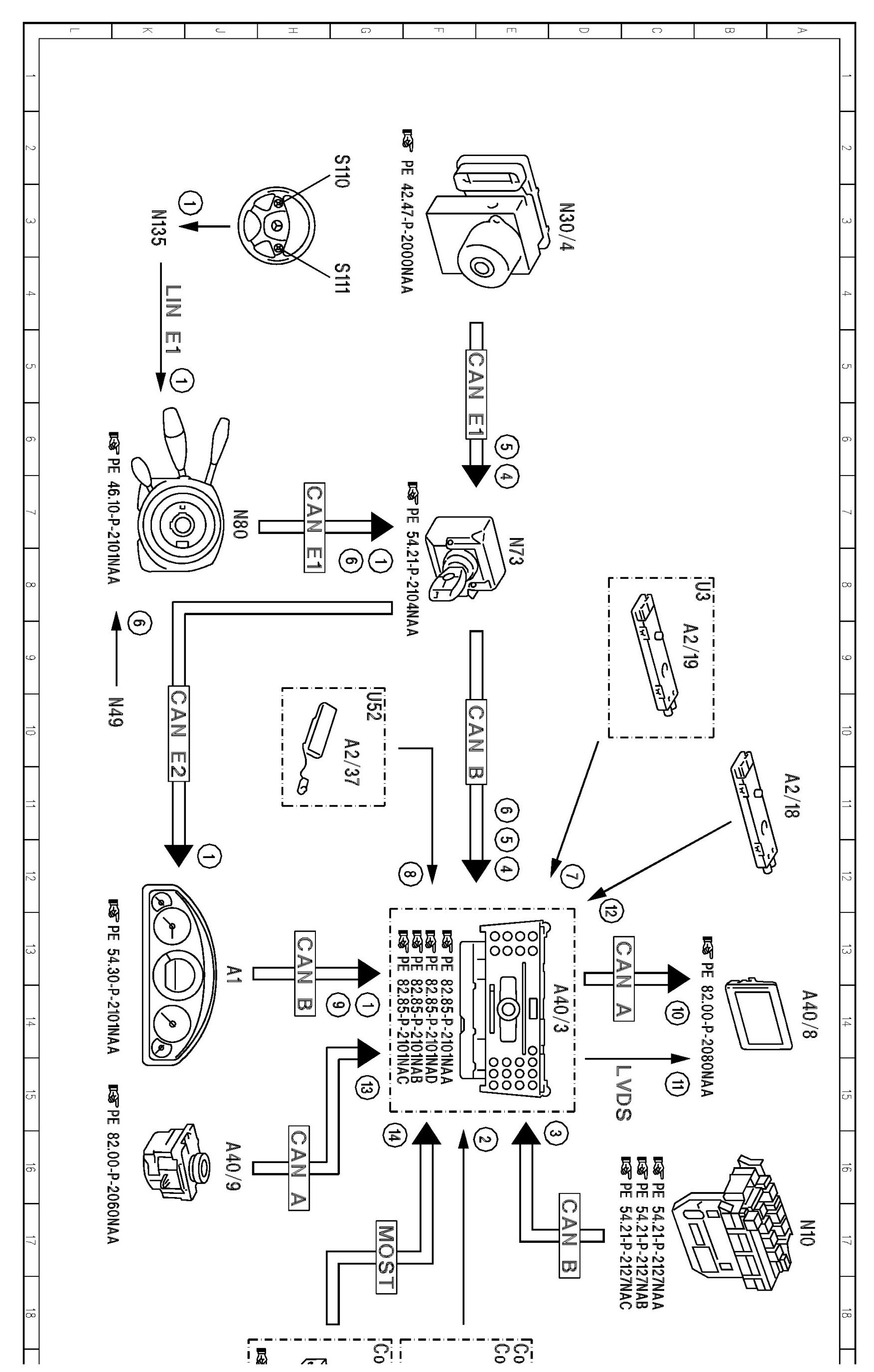

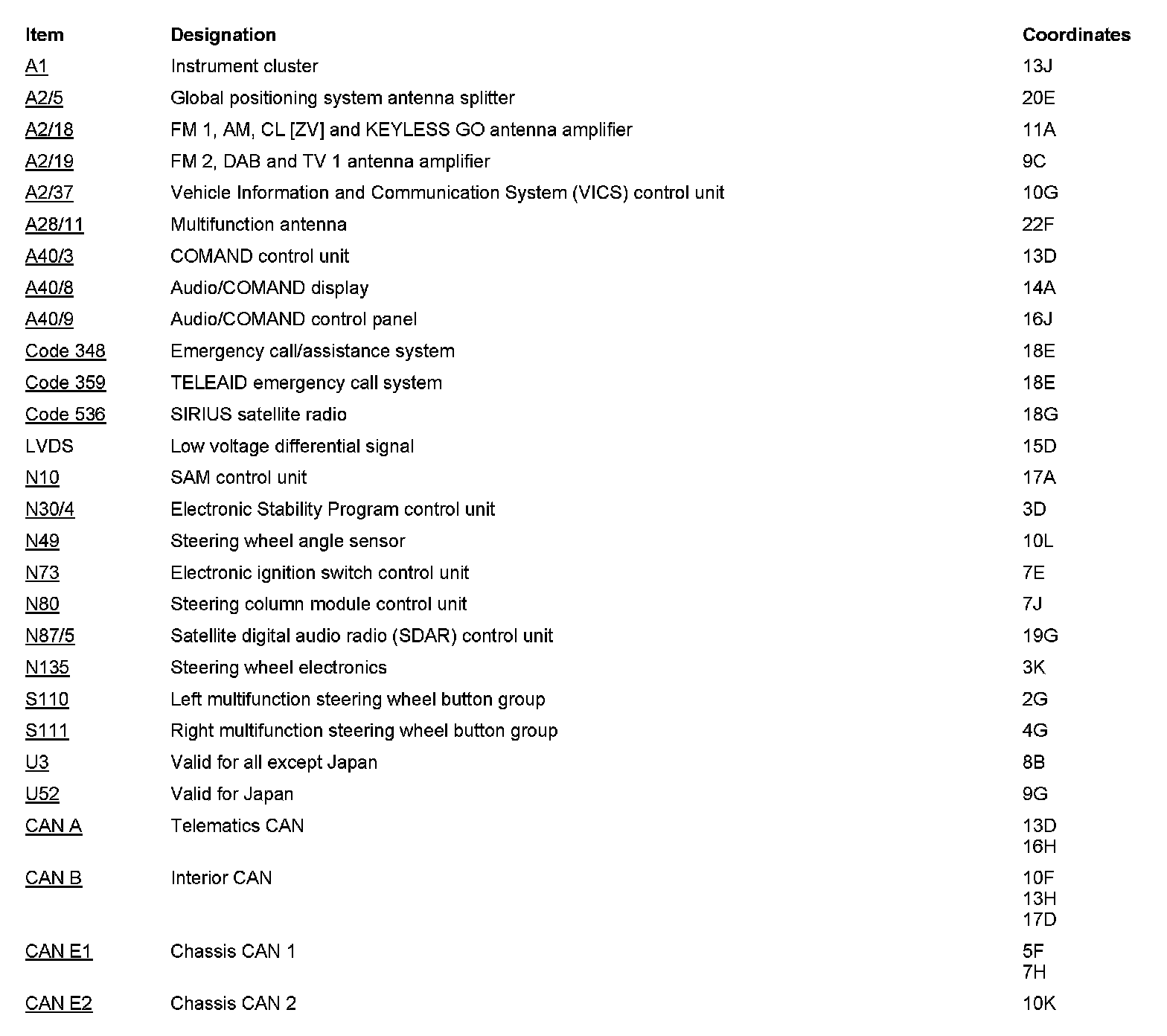

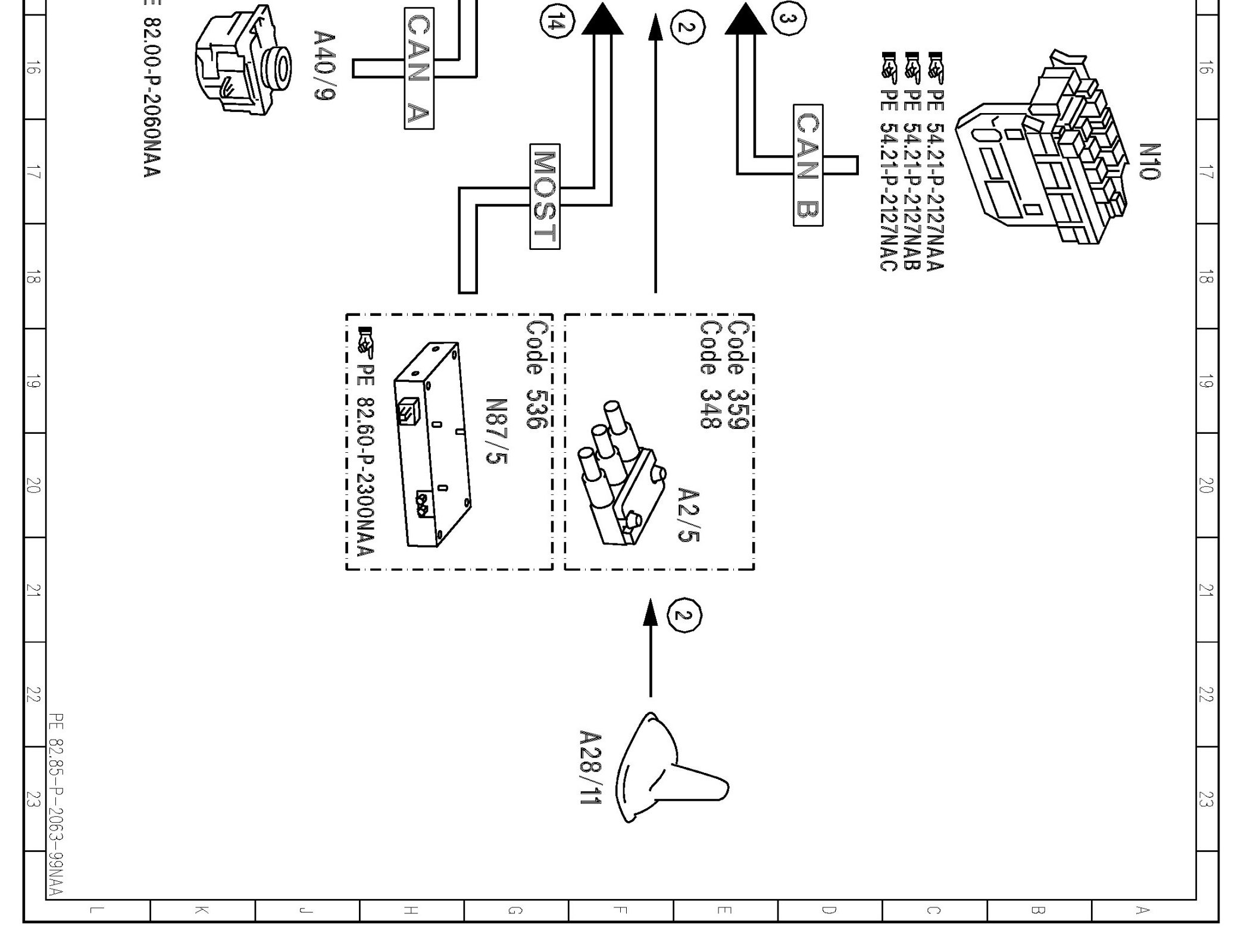

PE82.85-P-2063NAA Electrical Function Diagram For Navigation Mode (COMAND), Function



PE82.85-P-2063NAA Electrical Function Diagram For Navigation Mode (COMAND), Function
MODEL 166
with CODE (512) COMAND APS With DVD Changer
with CODE (527) COMAND APS With Single DVD Drive (With Navigation)






















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
