Electrical Diagrams

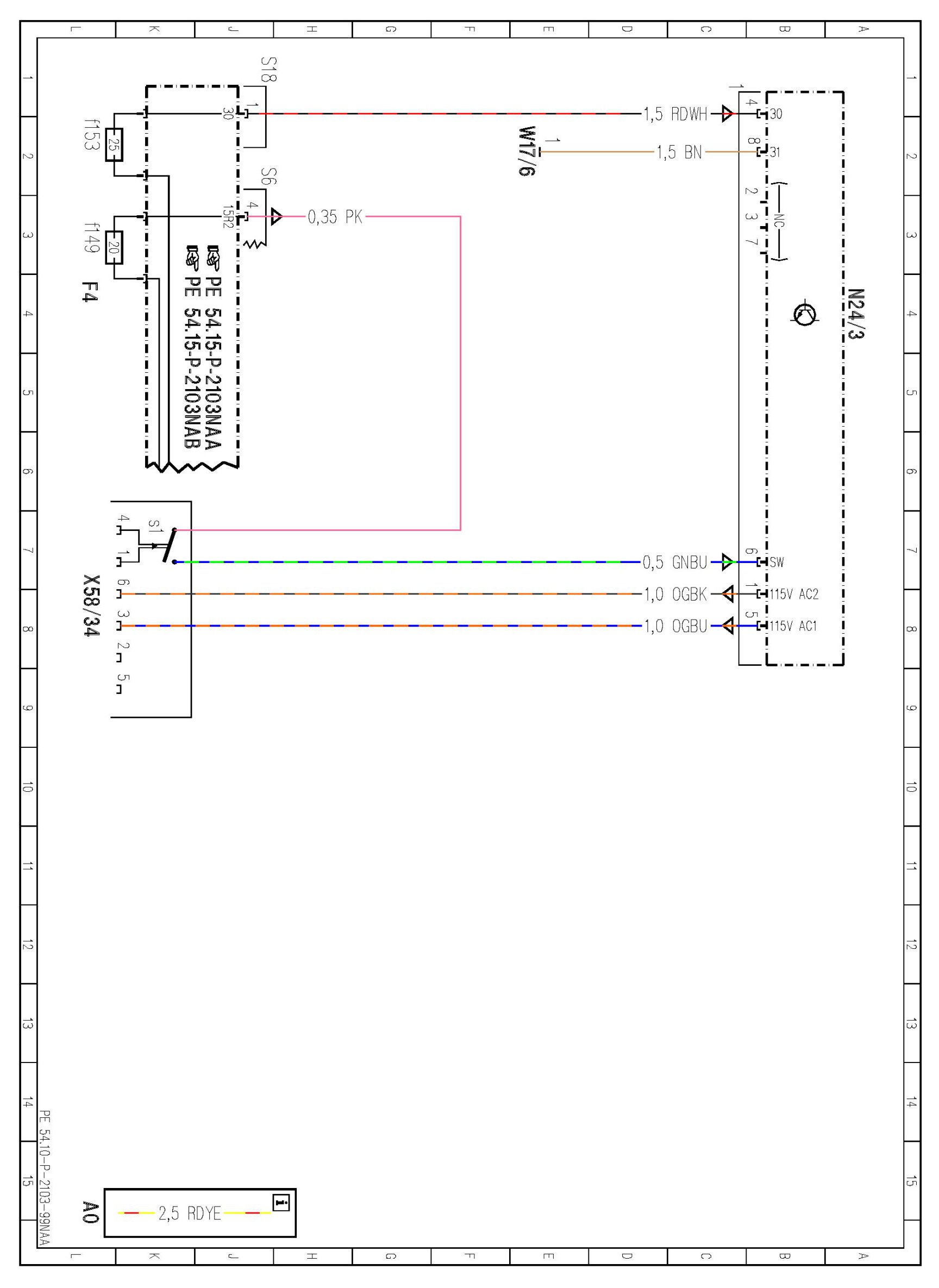

PE54.10-P-2103NAA Control Unit DC/AC Converter MODEL 166
-
with CODE (U80) 115 V Socket In Cargo Area
-
Control Unit N24/3
Component Locations: Component Location photographs can be found via their component names at the vehicle level.
Locations
