Data Link Connector: Diagrams

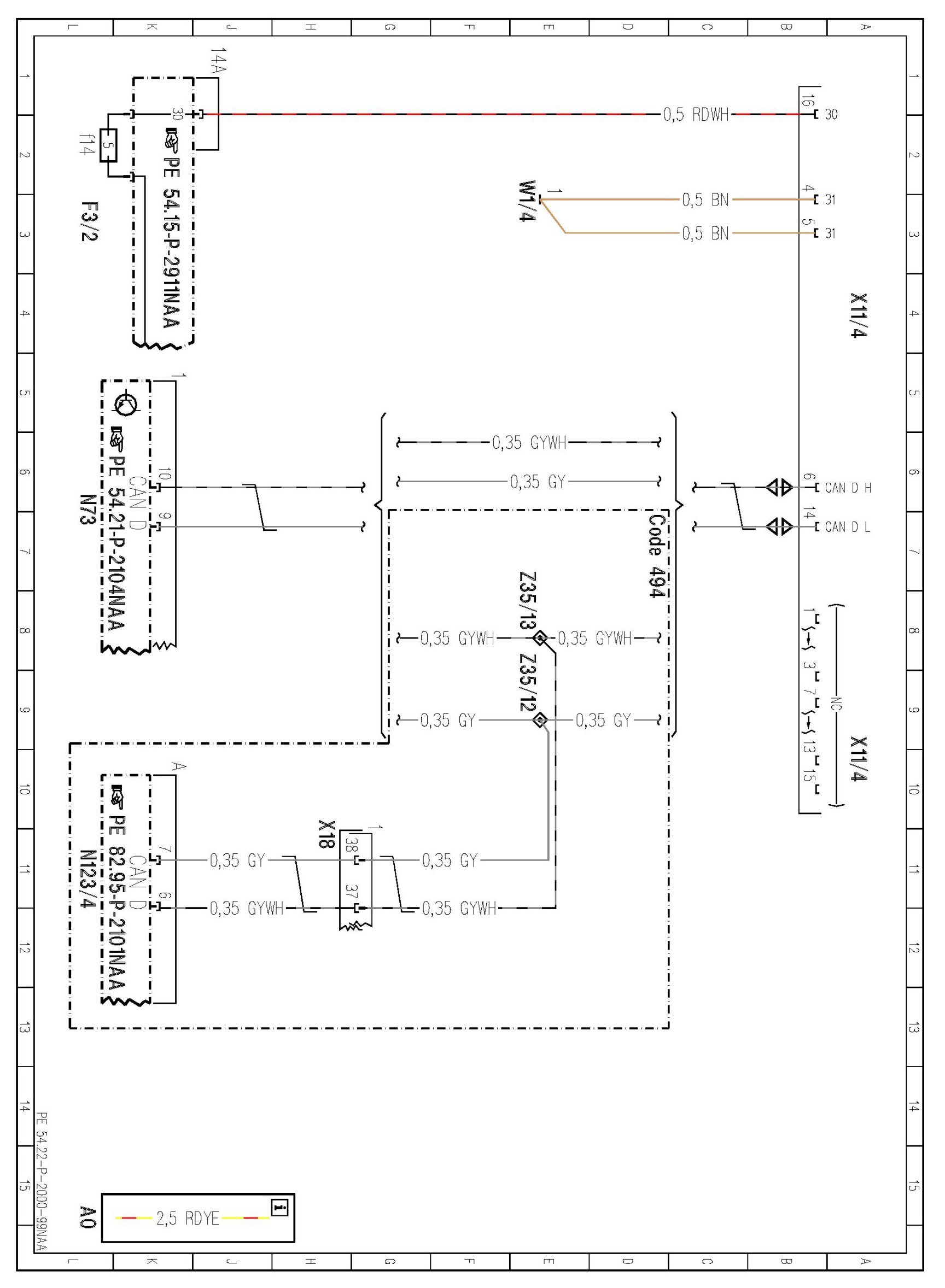

PE54.22-P-2000NAA Data Link Connector/Diagnostic Socket
MODEL 166
Diagnostic Socket X11/4

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
