PE07.10-P-2722NAE Electrical Function Schematic For Engine Control, Start/Stop

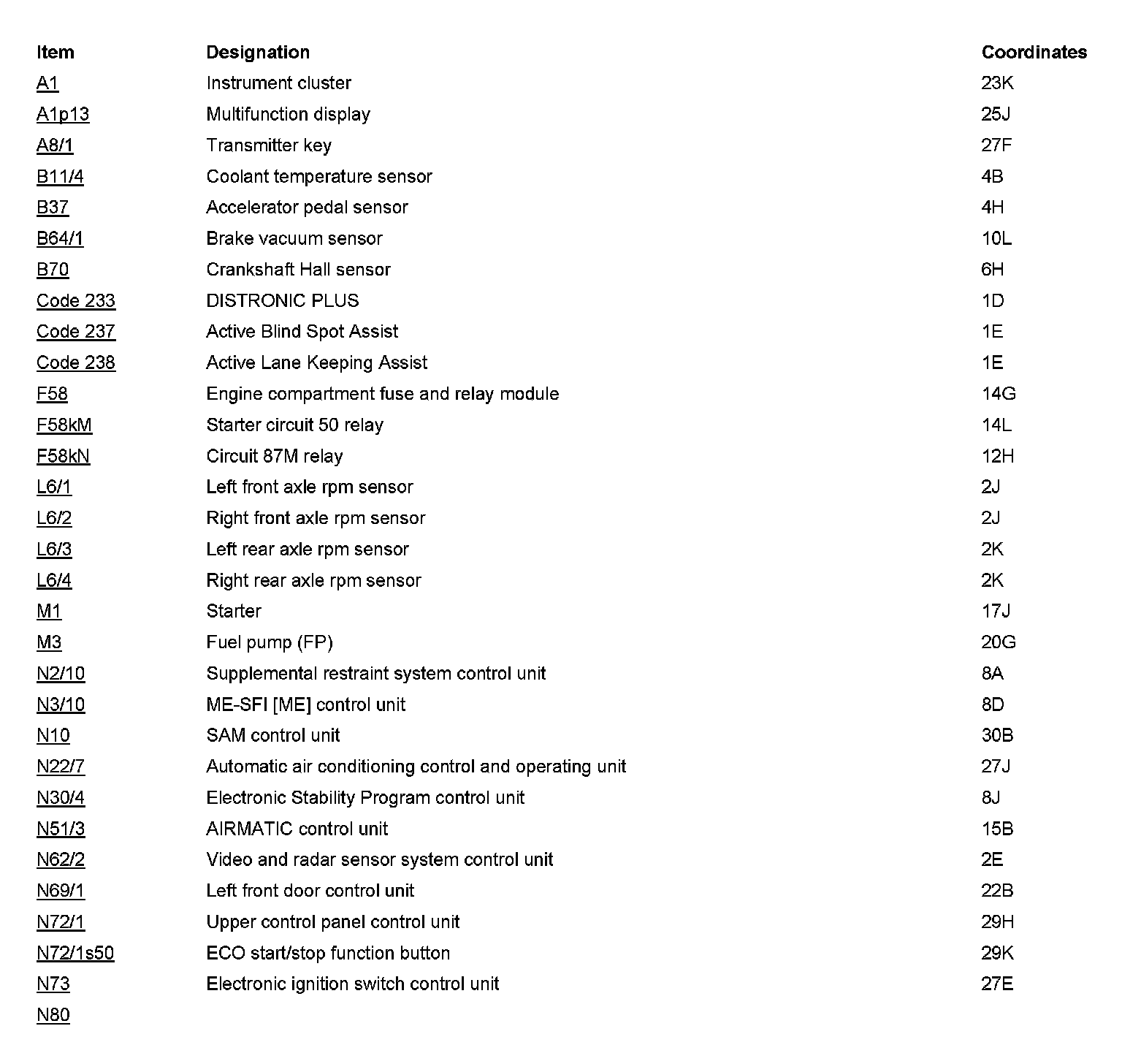

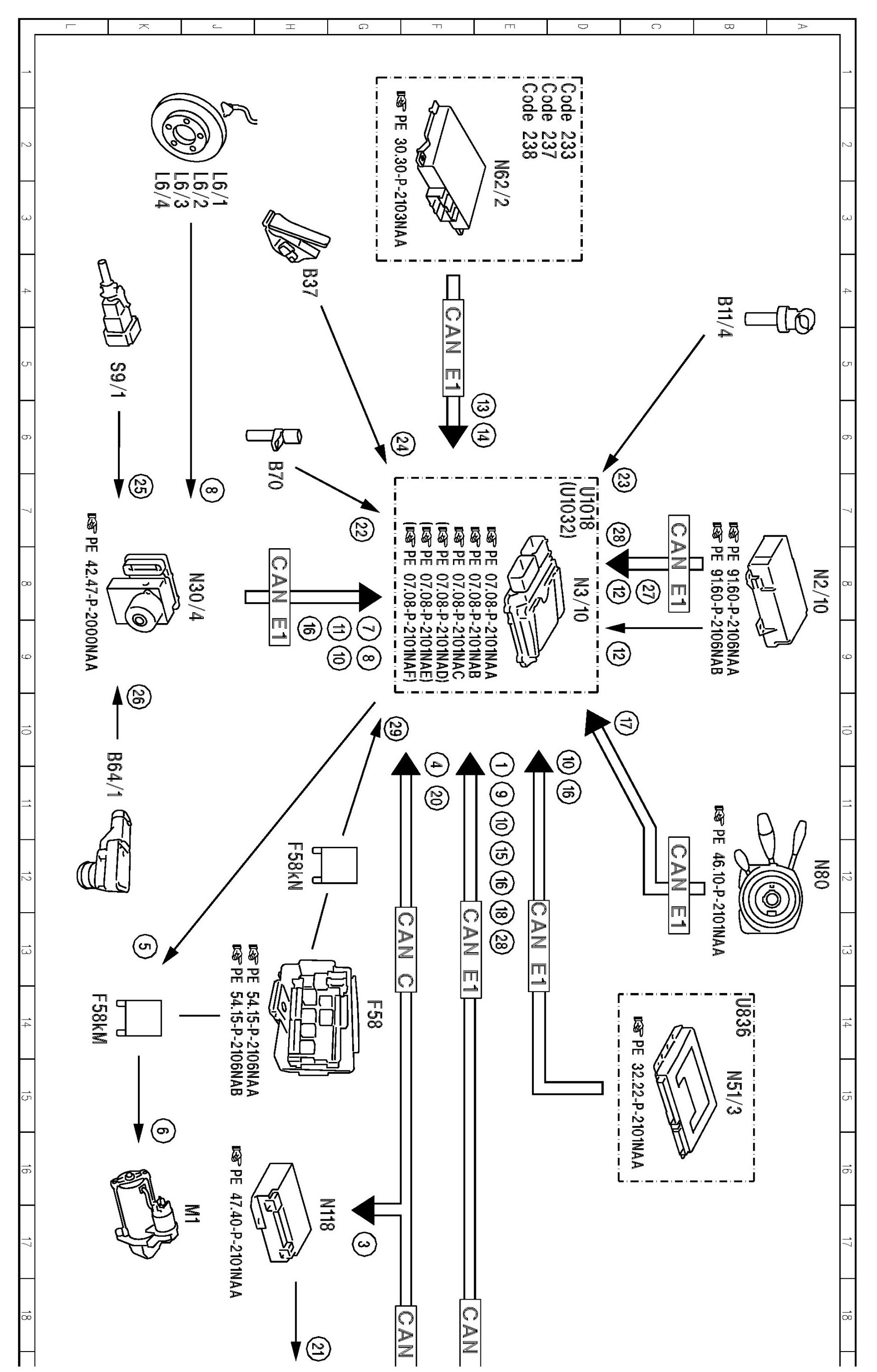

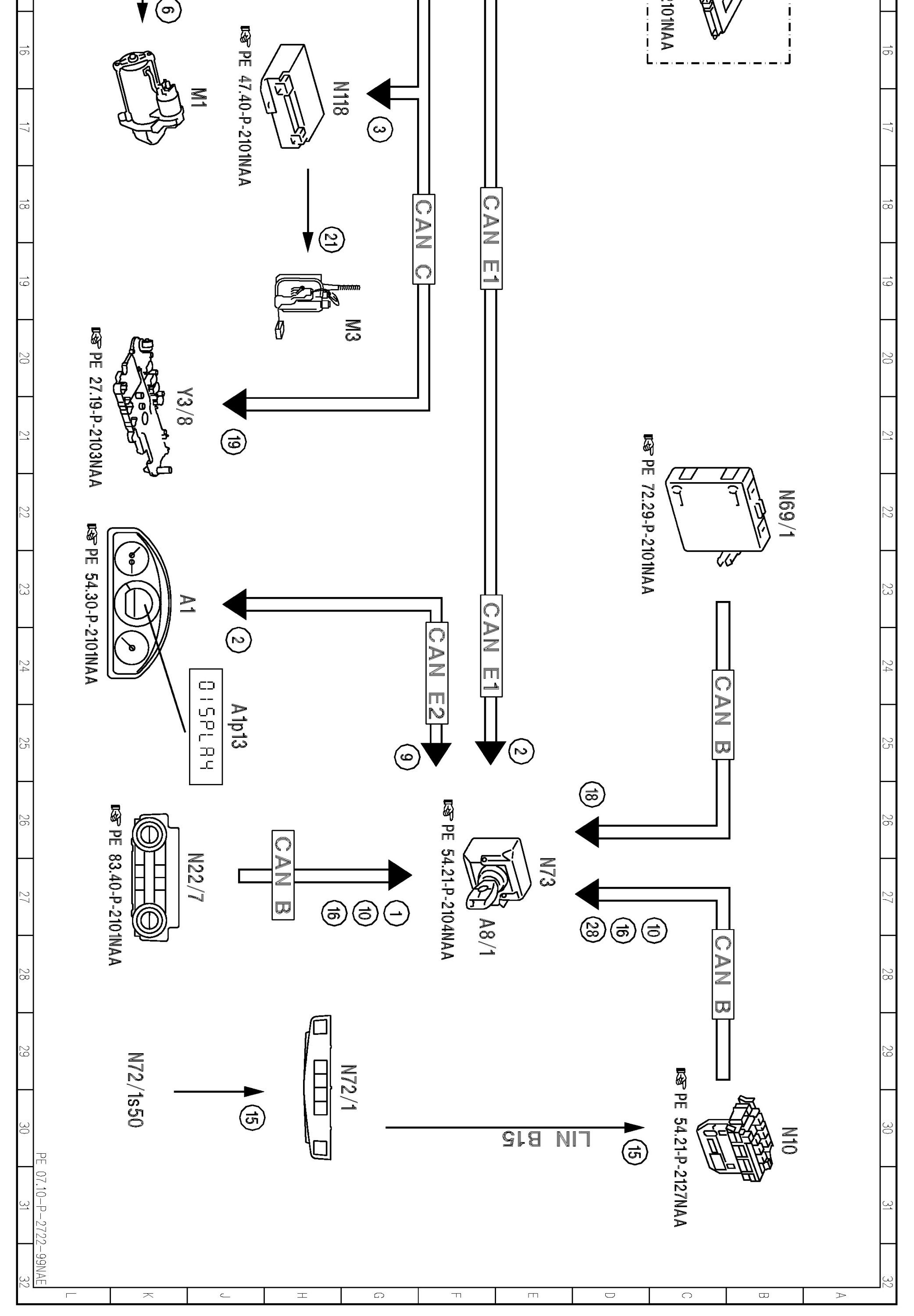

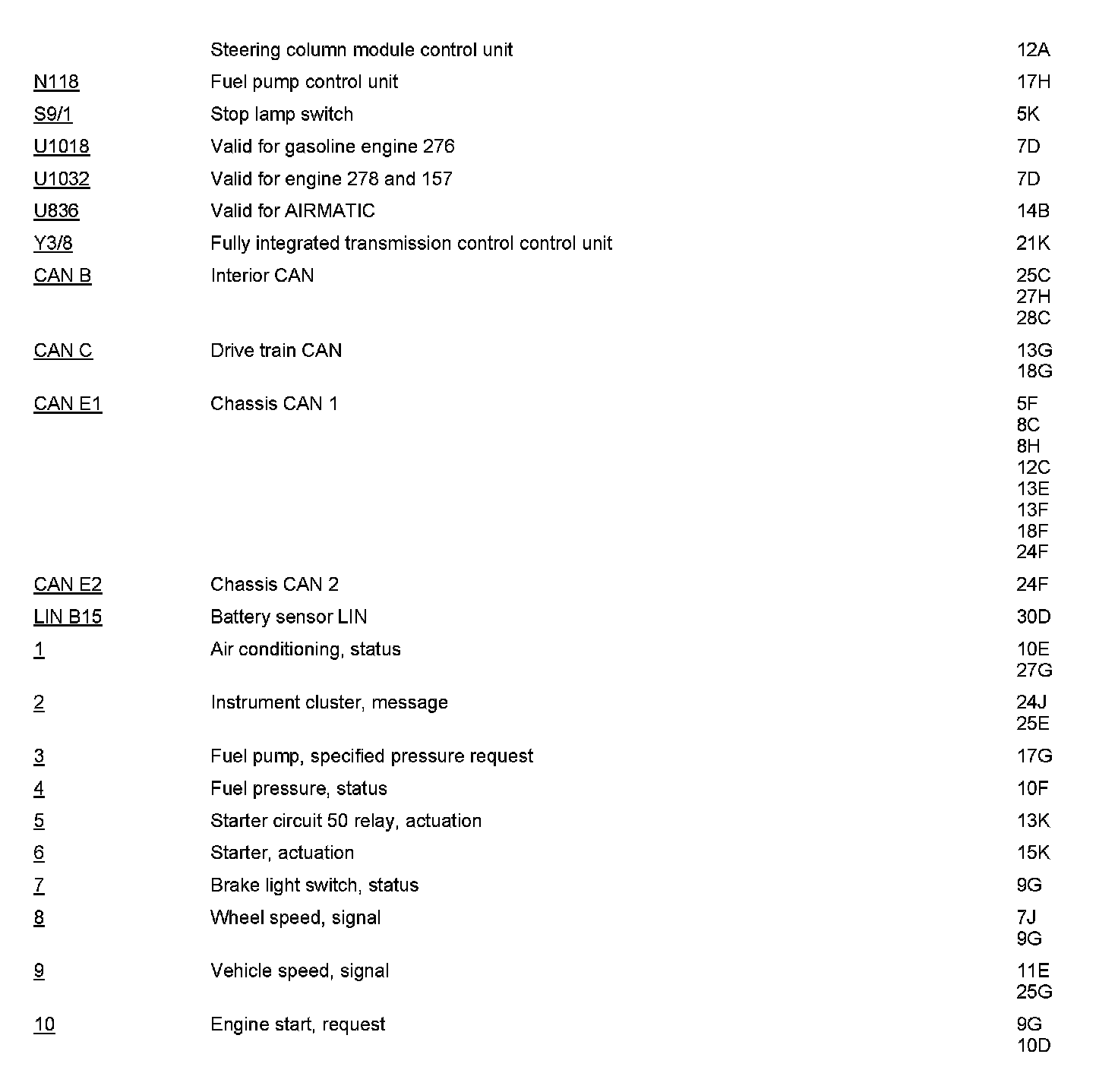

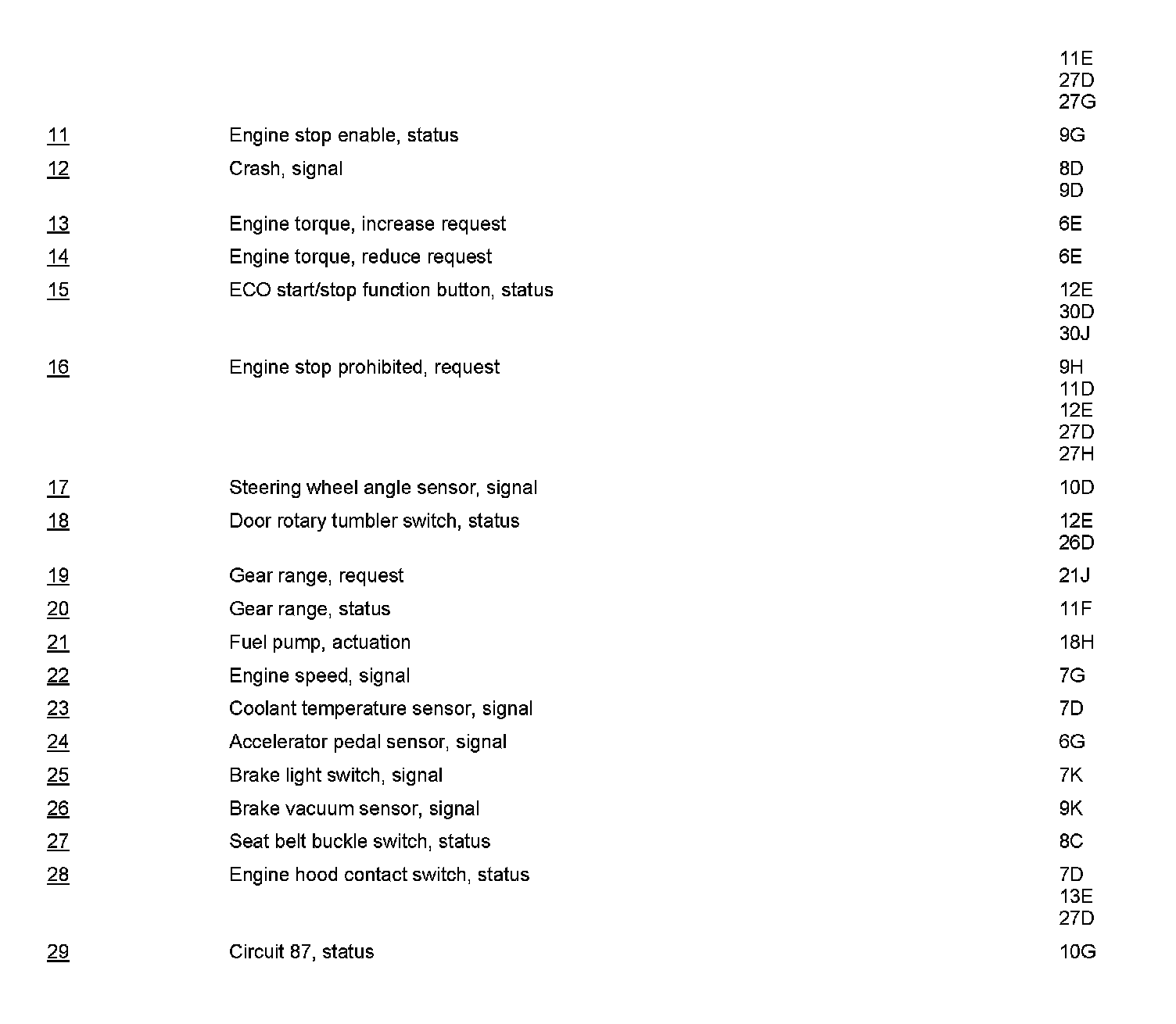

PE07.10-P-2722NAE Electrical Function Schematic For Engine Control, Start/Stop ENGINES 157, 276, 278 in MODEL 166
Component Locations: Component Location photographs can be found via their component names at the vehicle level.
Locations
