Engine Mount

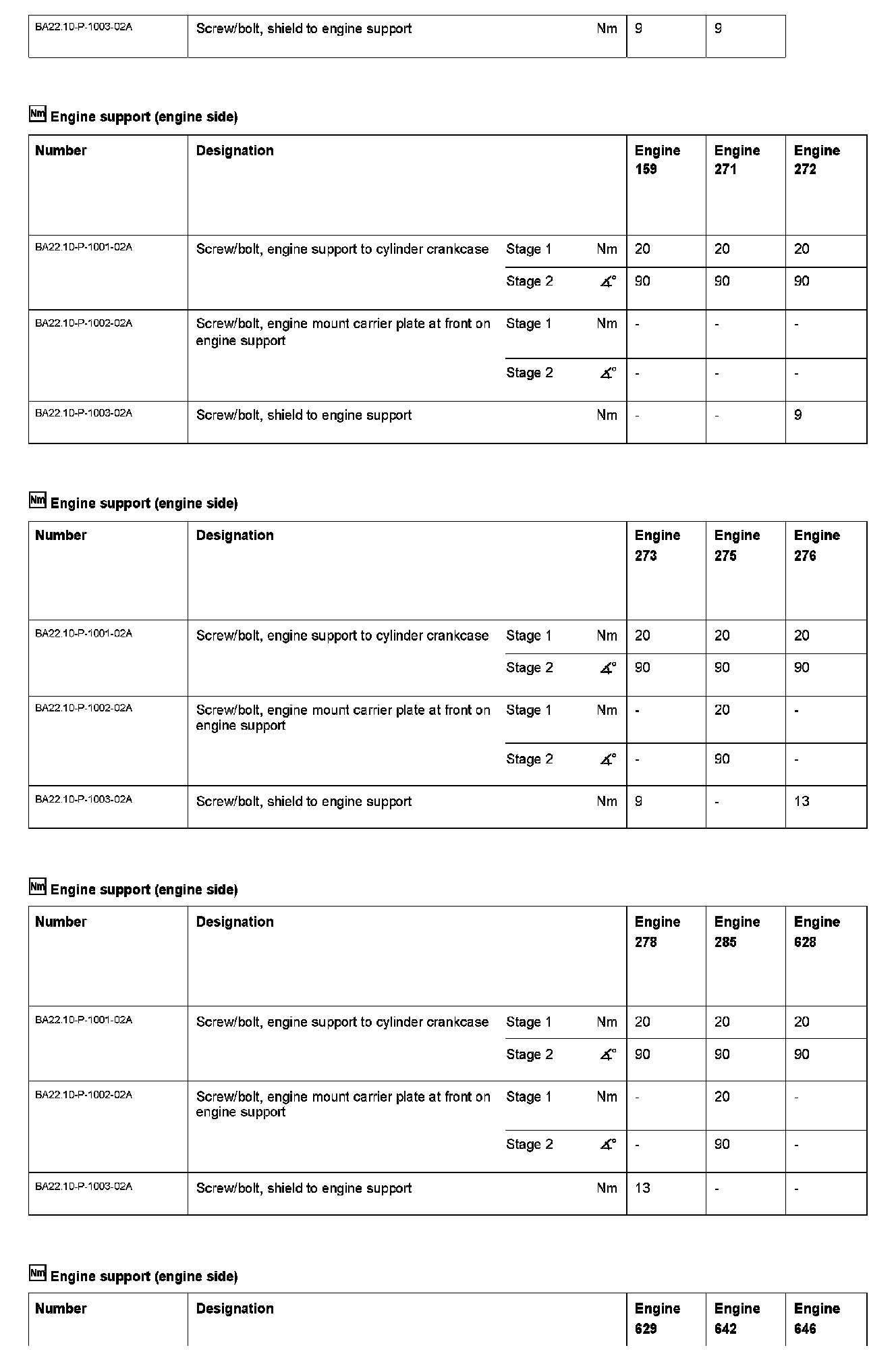

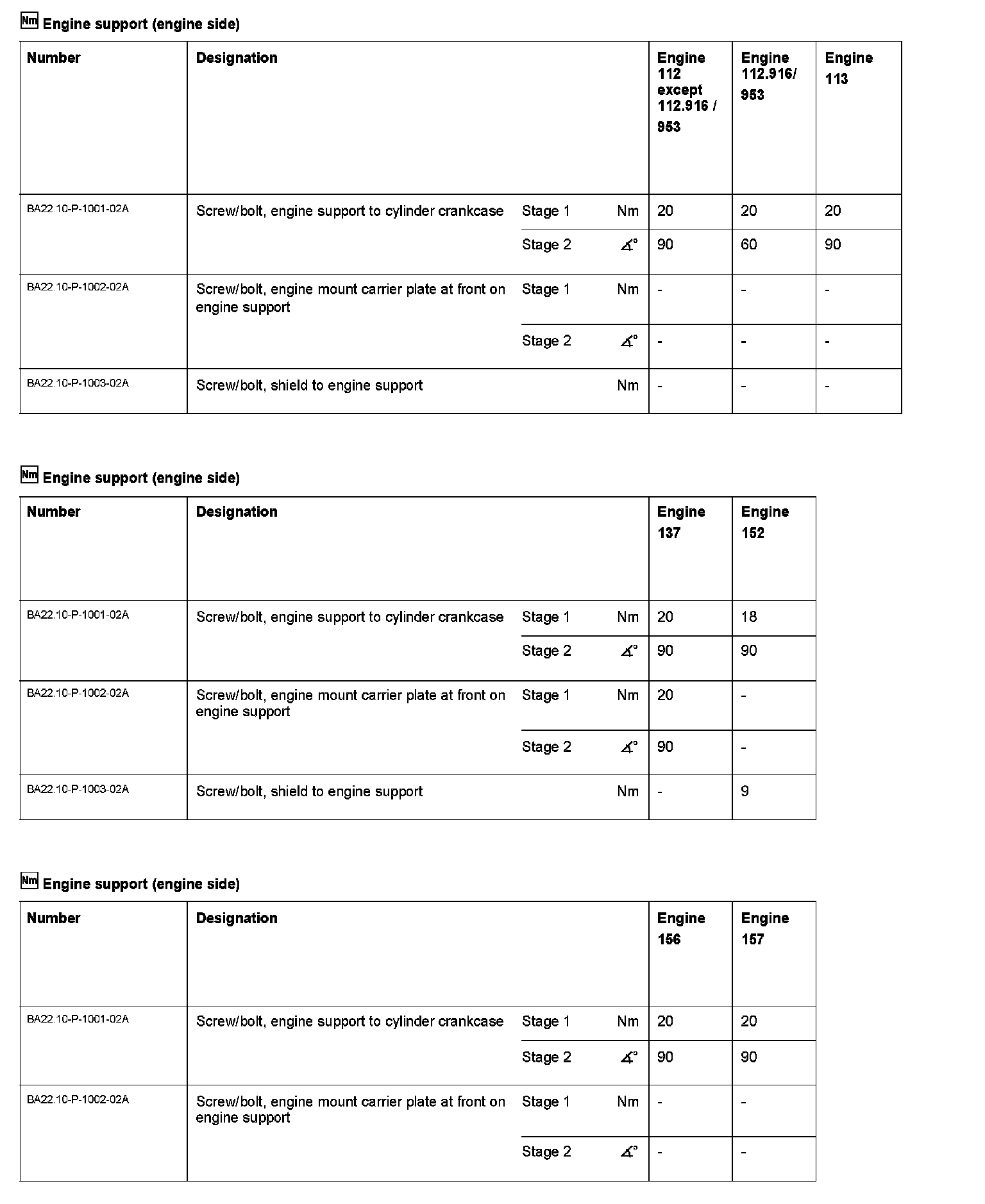

BA22.10-P-1000-02A Engine Support (Engine Side)
ENGINE 112, 113, 137, 152, 156, 157, 159, 271, 272, 273, 275, 276, 278, 285, 628, 629, 642, 646, 651
