AR54.25-P-2802-02CW Separate/Connect Electrical Connector At Steering Column Switch Module



AR54.25-P-2802-02CW Separate/connect Electrical Connector At Steering Column Switch Module

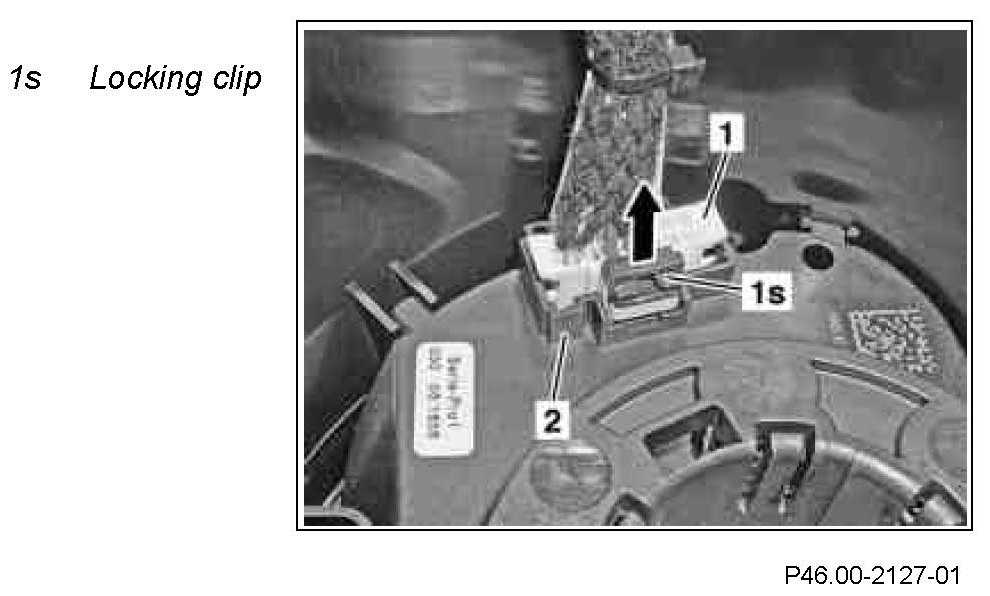

Component Identification:






Separating
1. Detach circlip (1s) in the direction of the arrow. When the circlip is pulled out it is destroyed and must be replaced.

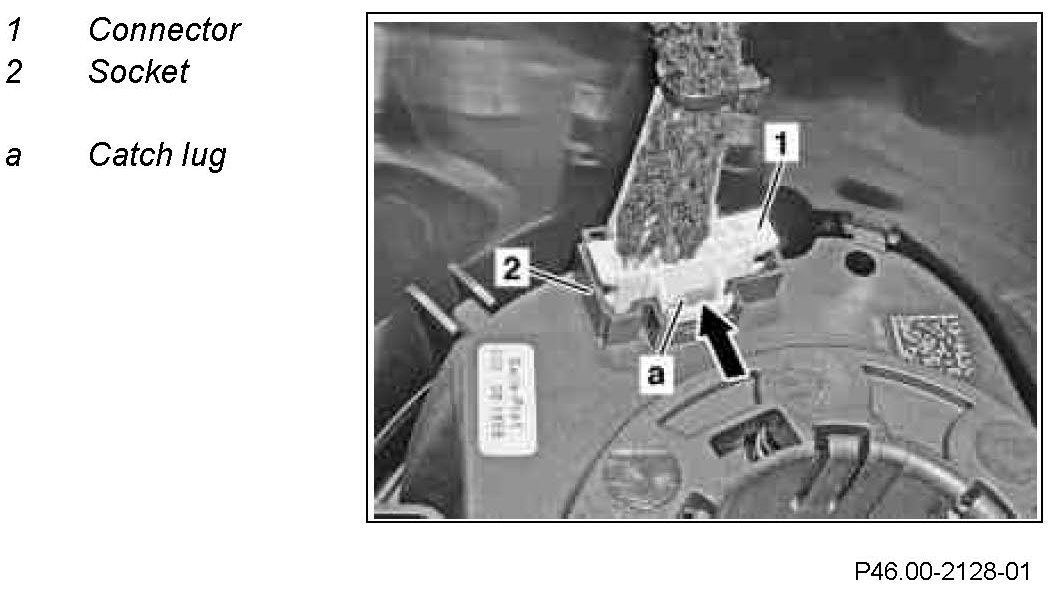

Component Identification:






2. Unlock the electrical connector by operating the catch tab (a) and pull connector (1) upwards out of the jack (2).
3. Connect in reverse order.
