ENGINE MOUNTS - 3.8L - SERVICE PARTS APPLICATION AND USAGE

Article No. 89-5-12

FORD: 1986-88 THUNDERBIRD

LINCOLN-MERCURY: 1986-88 COUGAR


ISSUE: The total number of engine mount service parts has been decreased to reduce replacement part complexity.

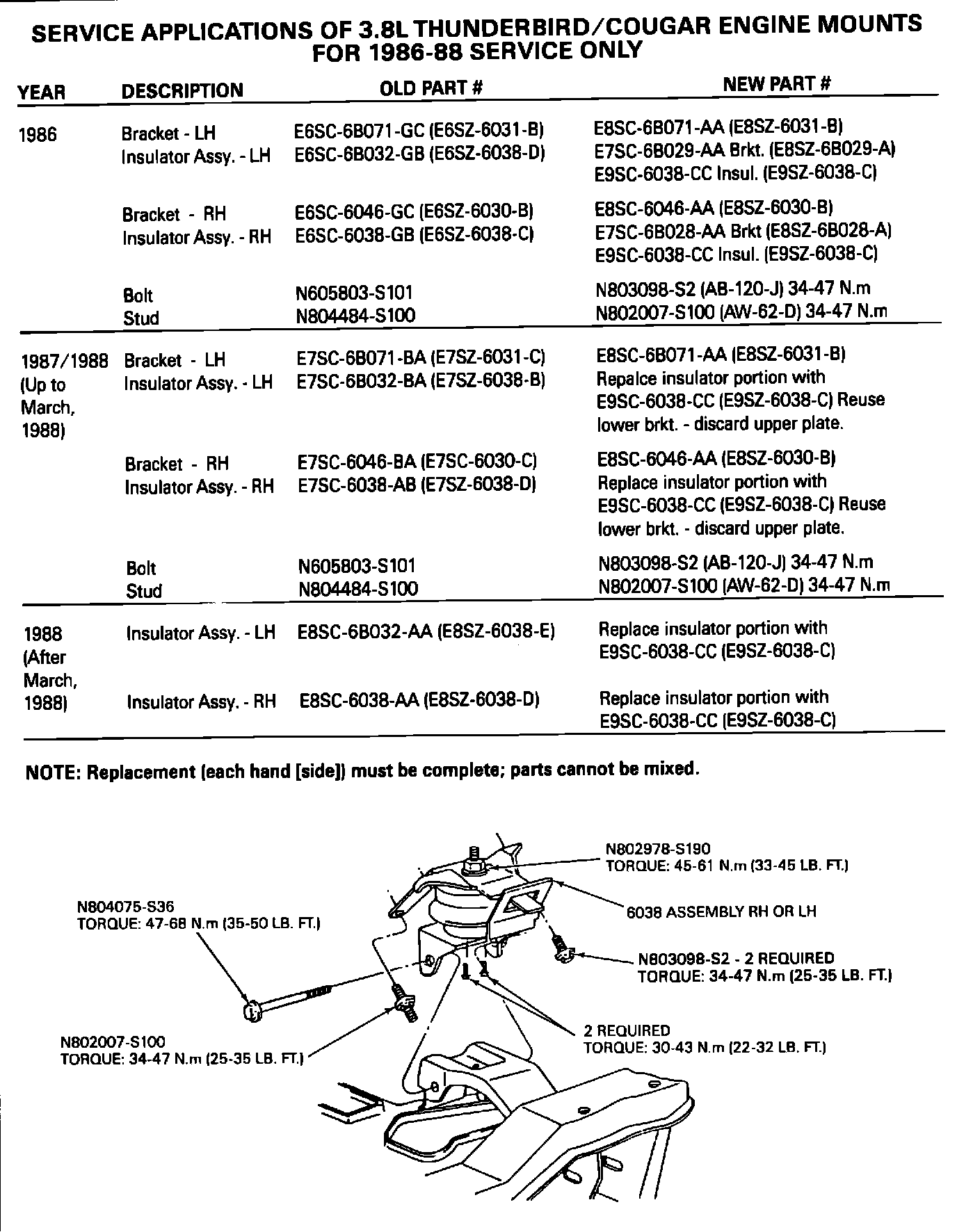

FIGURE 1:

ACTION: Replacement engine mount insulators, brackets, bolts and studs are specified in the service part application chart contained in Figure 1 of this TSB article.

PART NUMBER PART NAME CLASS

E8SZ-6031-B Engine Mount - Bracket B
E8SZ-6030-B Engine Mount - Bracket B
E8SZ-6B029-A Engine Mount - Bracket C
E8SZ-6B028-A Engine Mount - Bracket C
E9SZ-6038-C Insulator B
N803098-S2 Bolt S
N802007-S100 Stud S

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 4700, 4800
