EEC-IV - Time Delay Relay, Shop Manual Correction


87ford01

EEC-IV TIME DELAY RELAY - 1.9L CFI - Article No.
SHOP MANUAL CORRECTION 87-14-10

FORD: 1987 ESCORT, EXP

LINCOLN-MERCURY: 1987 LYNX

ISSUE: The EEC-IV time delay relay location is incorrectly listed in the 1987 Engine/Emission Diagnosis Shop Manual, Volume H, Section 3-60.

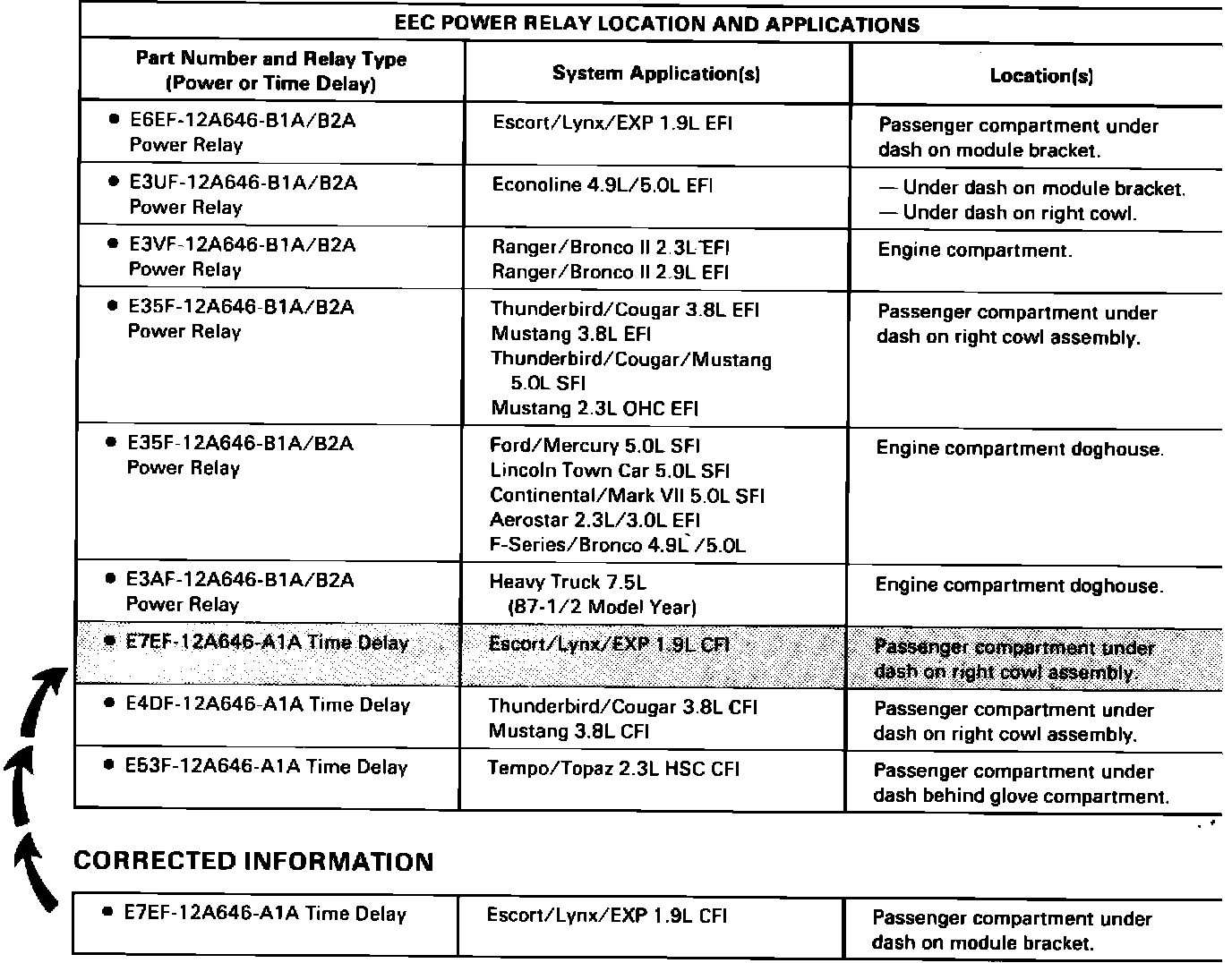

EEC POWER RELAY LOCATION AND APPLICATIONS:





ACTION: If service is required, the EEC-IV time delay relay is located in the passenger compartment under the dash on the module bracket. Please correct your shop manual as shown in the EEC-IV time delay relay location and application chart on page 20 of this TSB.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
