Main Relay (Computer/Fuel System): Locations

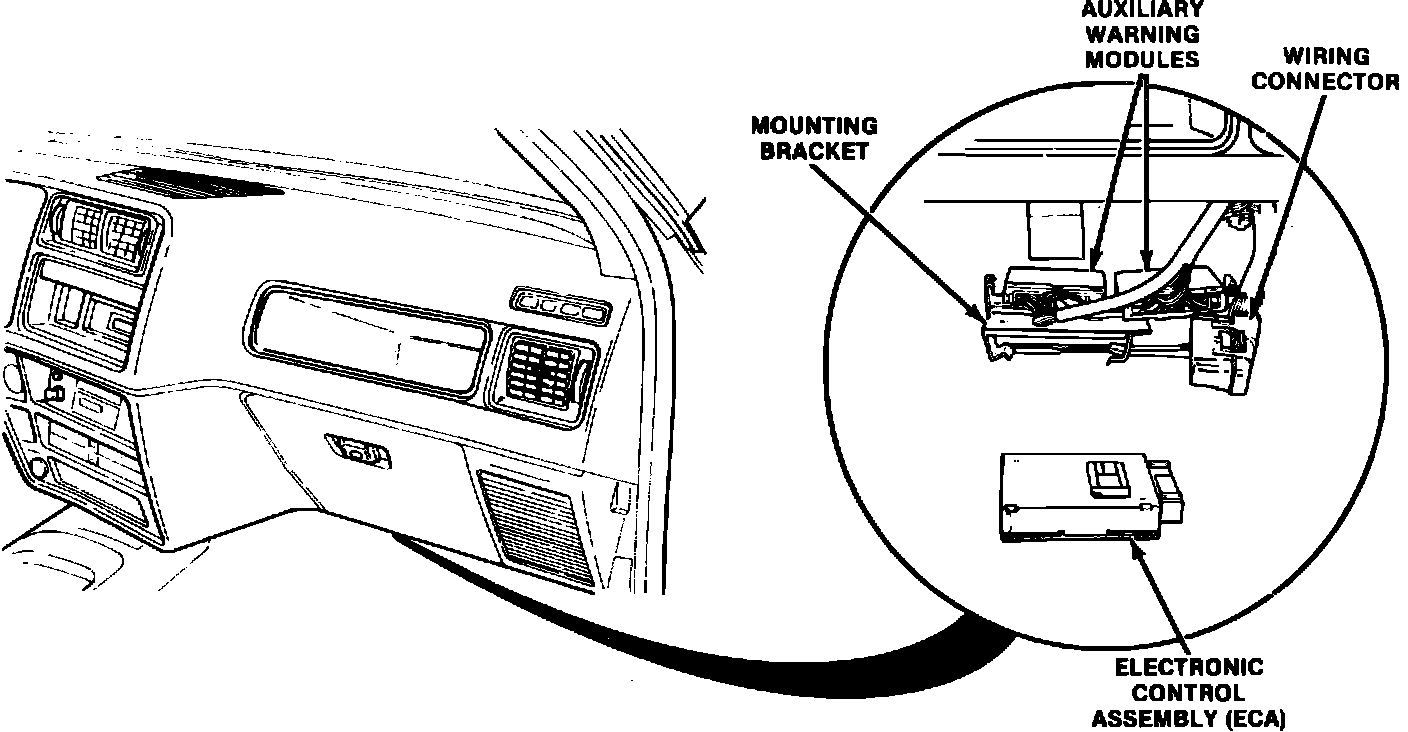

Fig. 28 Electronic control assembly location. Scorpio and XR4Ti:






Computer Relay Location
Attached To Lower Right Cowl near ECA (R/LG,Blk,Yel,Red wire color code)
