Test G: The Autolock Does Not Operate Correctly

PINPOINT TEST G: THE AUTOLOCK DOES NOT OPERATE CORRECTLY

G1:

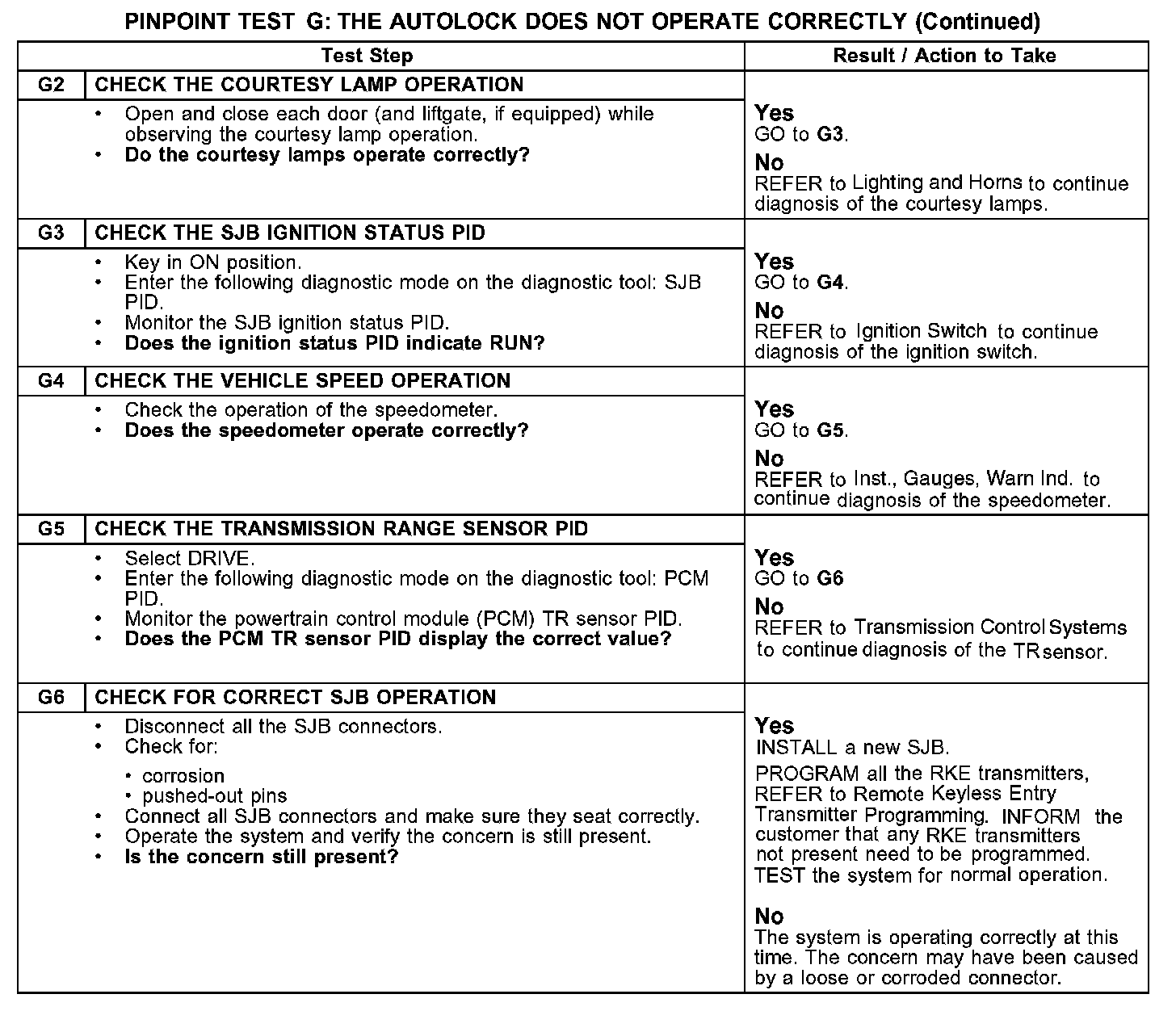

G2-G6:

Normal Operation
During autolock operation, the smart junction box (SJB) energizes the lock relay based upon input from the ajar switches, the CAN network message for the PRNDL position, the stoplamp switch input and the vehicle speed signal. The SJB locks the doors when it senses the doors are closed and the vehicle is in motion.

Possible Causes
- SJB
