Circuit Diagrams

PART 1 OF 5

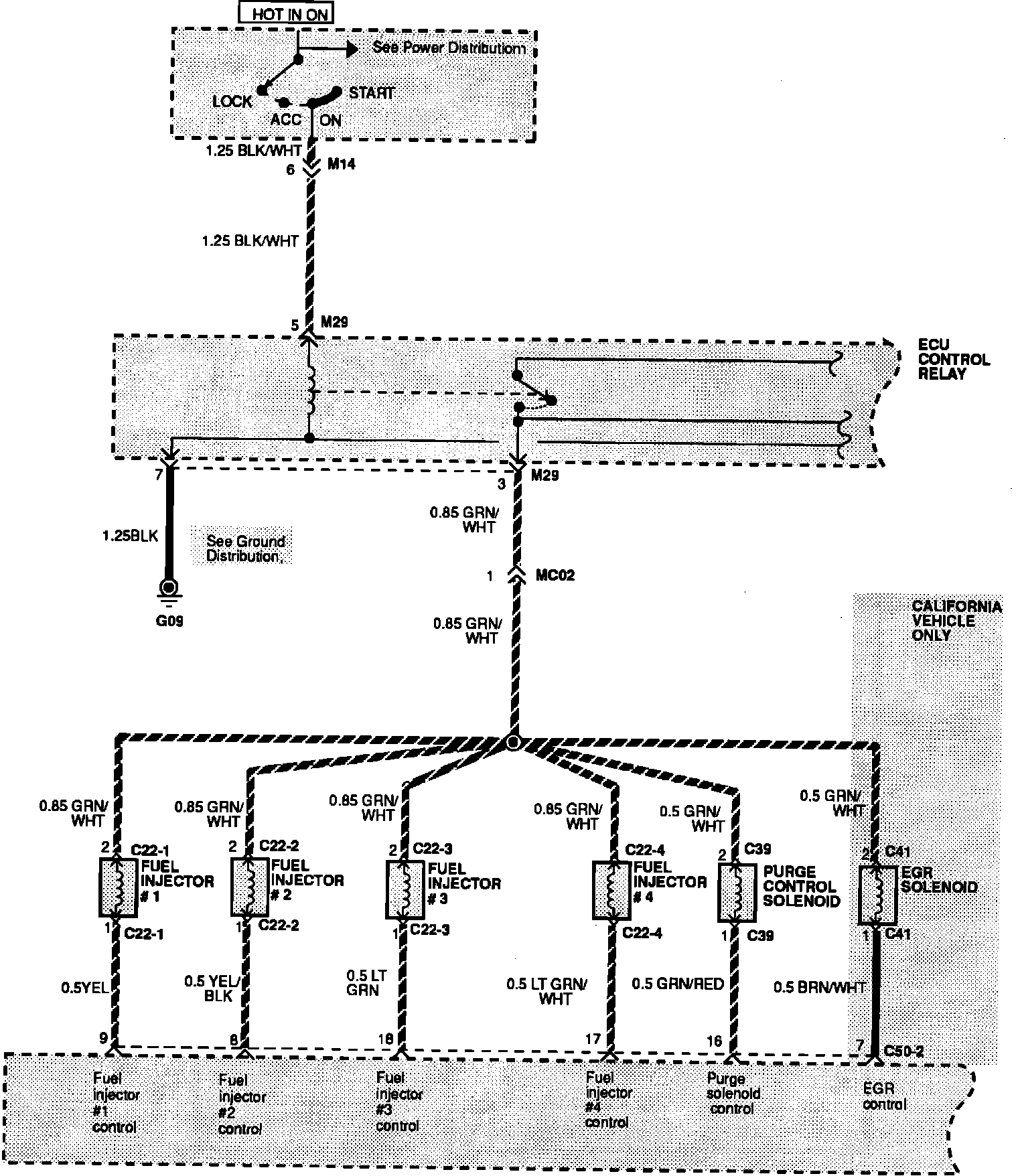

Fuel Injection Diagram (Part 1 Of 5):





PART 2 OF 5

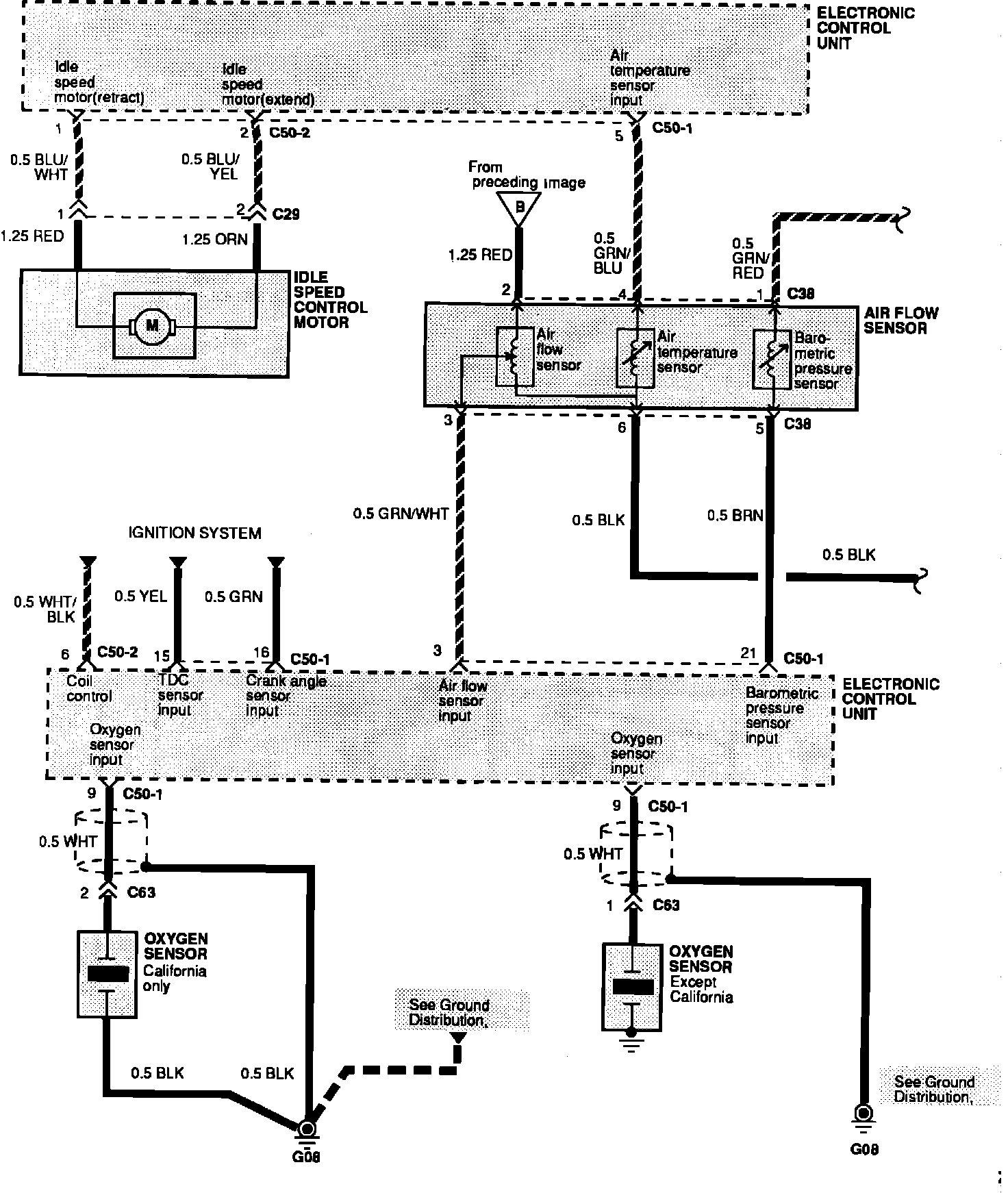

Fuel Injection Diagram (Part 2 Of 5):





PART 3 OF 5

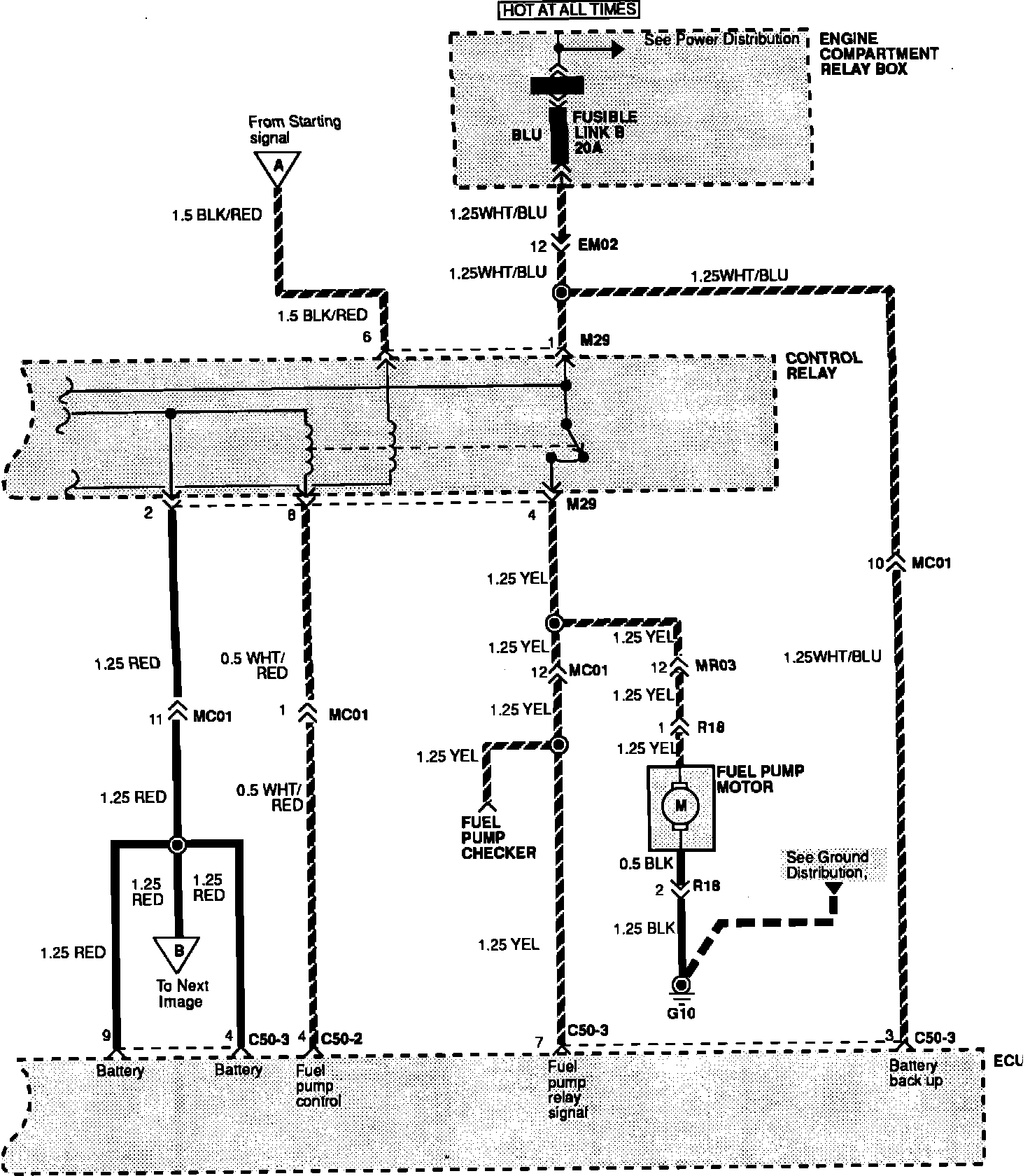

Fuel Injection Diagram (Part 3 Of 5):





PART 4 OF 5

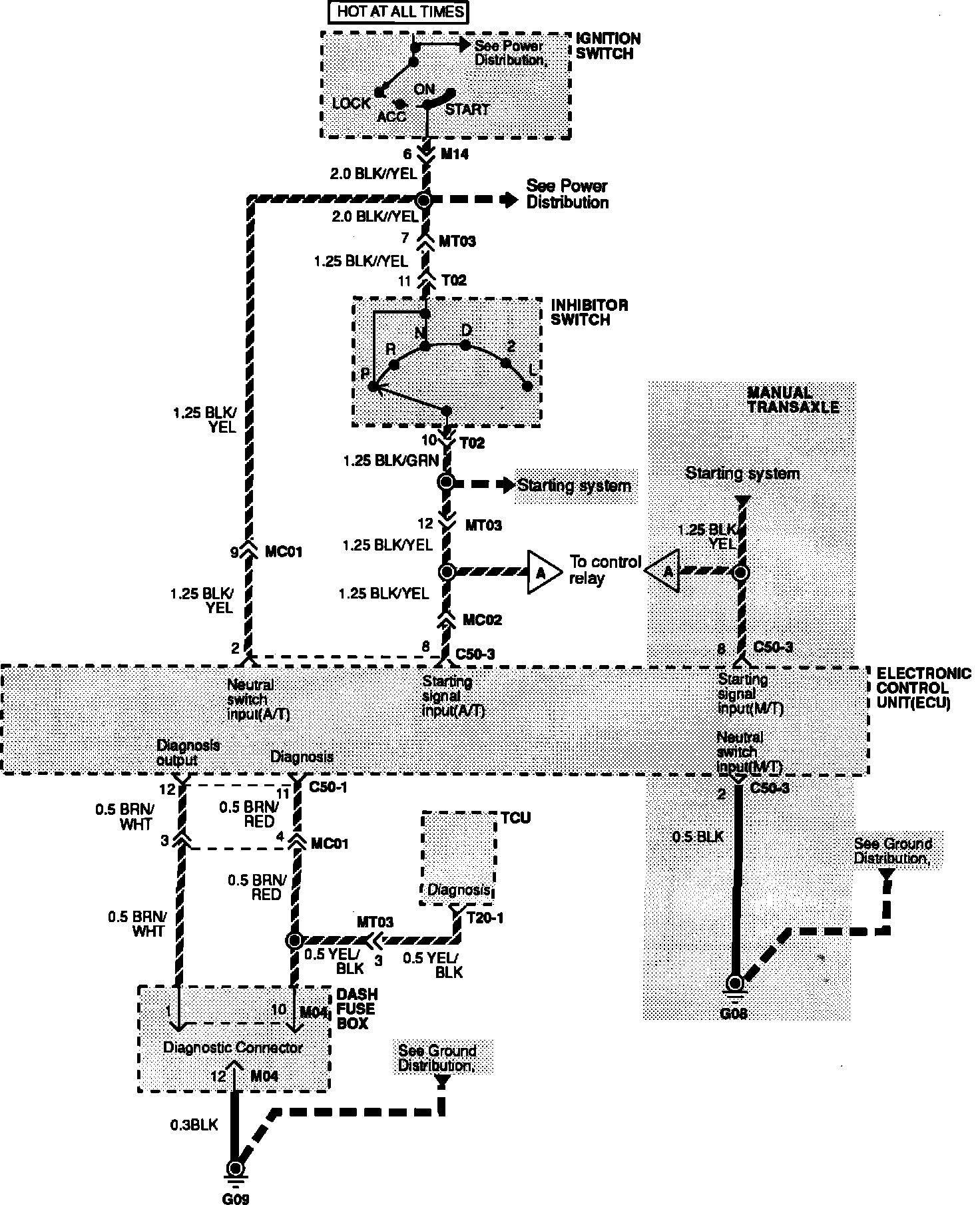

Fuel Injection Diagram (Part 4 Of 5):





PART 5 OF 5

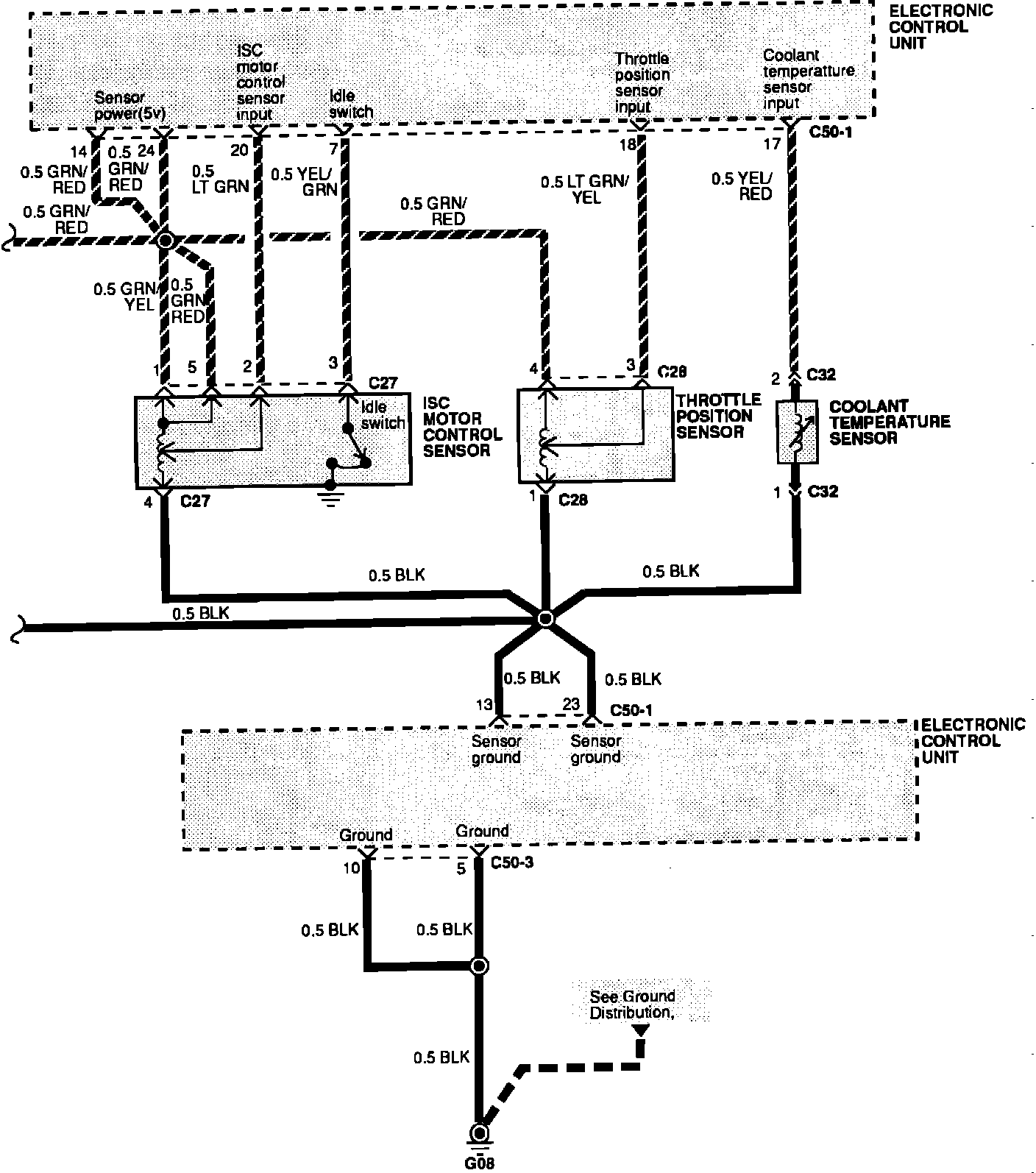

Fuel Injection Diagram (Part 5 Of 5):





For further information refer to CHASSIS ELECTRICAL DIAGRAMS
