Paint - Exterior Color Code & Applications

9215mitsubishi01

NO.: TSB-91-51-005 REVISION

DATE: December, 1991

MODEL: All 1992 Models


SUBJECT: 1992 EXTERIOR COLOR CODES -
AND APPLICATIONS


NOTE: This bulletin supersedes TSB-91-51-005 dated August 1991. Please discard the old bulletin and file this bulletin in its place.

PURPOSE

This bulletin contains complete exterior color information on all 1992 Mitsubishi Motors vehicles, including the 1992 Montero. It also includes a new table (Table IV) which shows the type of finish used on 1991 and 1992 models. The tables are:

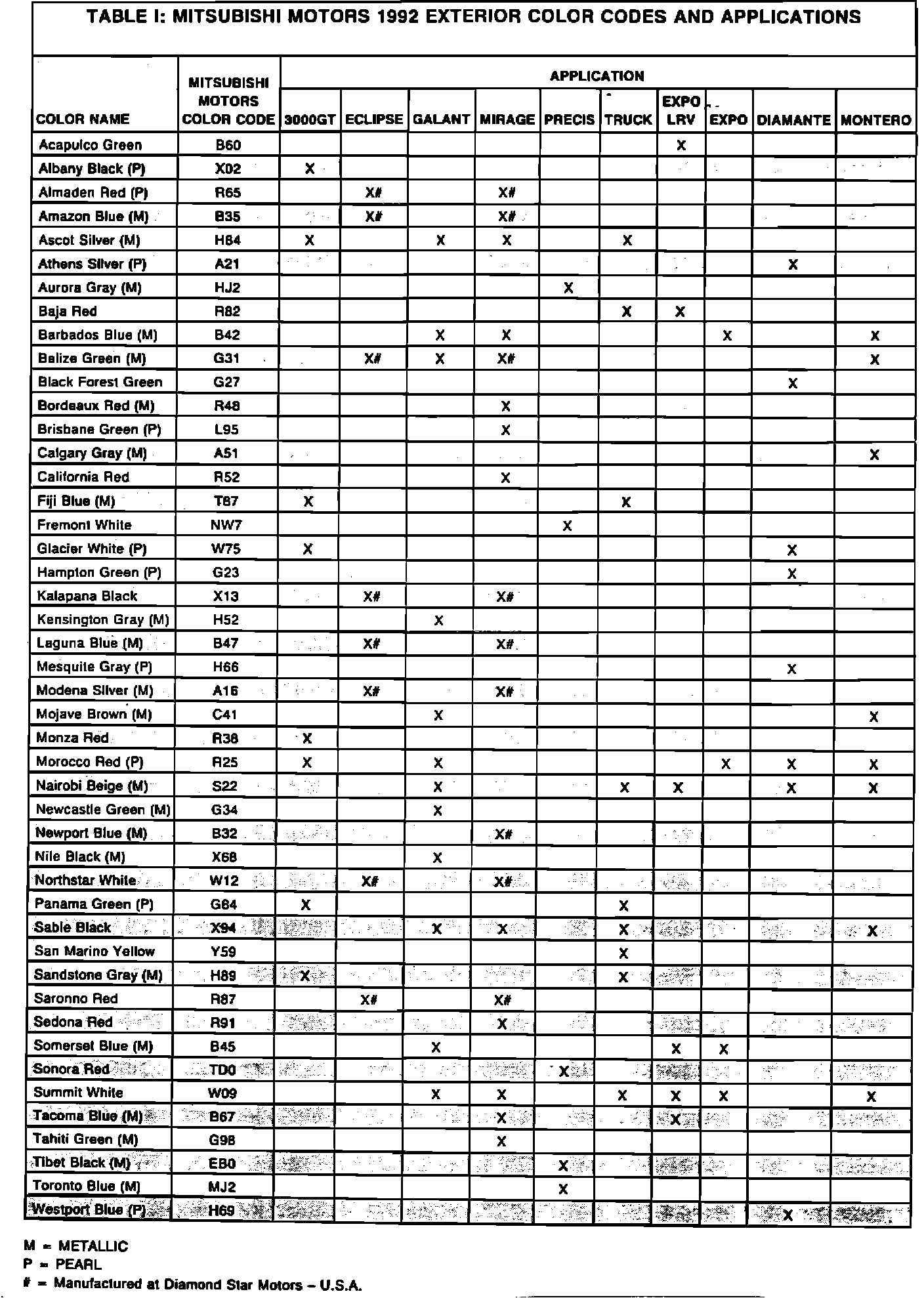

I. 1992 Exterior Color Codes and Applications.





II. Paint Manufacturers' Stock Numbers for Exterior Refinishing.





III. Two-Tone Combinations.





IV. Type of Finish (Single-Stage, Base/Clear, Three-Coat [Pearl], other).


Use these tables when ordering refinishing materials from your local automotive paint dealer.

1992 EXTERIOR COLORS

There are forty-six exterior colors for 1992. Twenty-eight are carried over from 1991, eighteen are new.

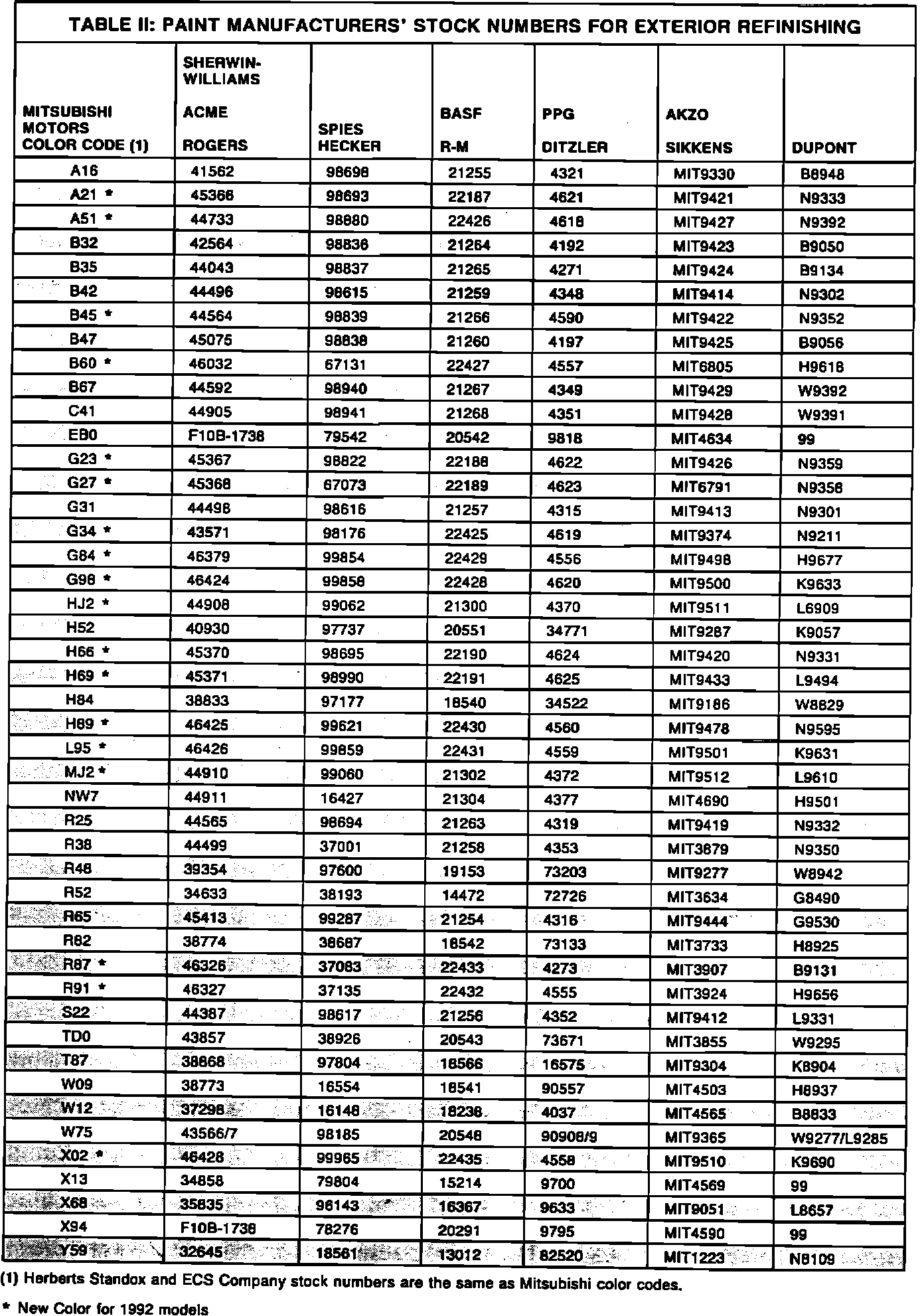

In Table II the new colors are identified by asterisks (*). Also included in Table II are the manufacturers' stock numbers which correspond with the Mitsubishi Motors Color Codes shown in Table I.

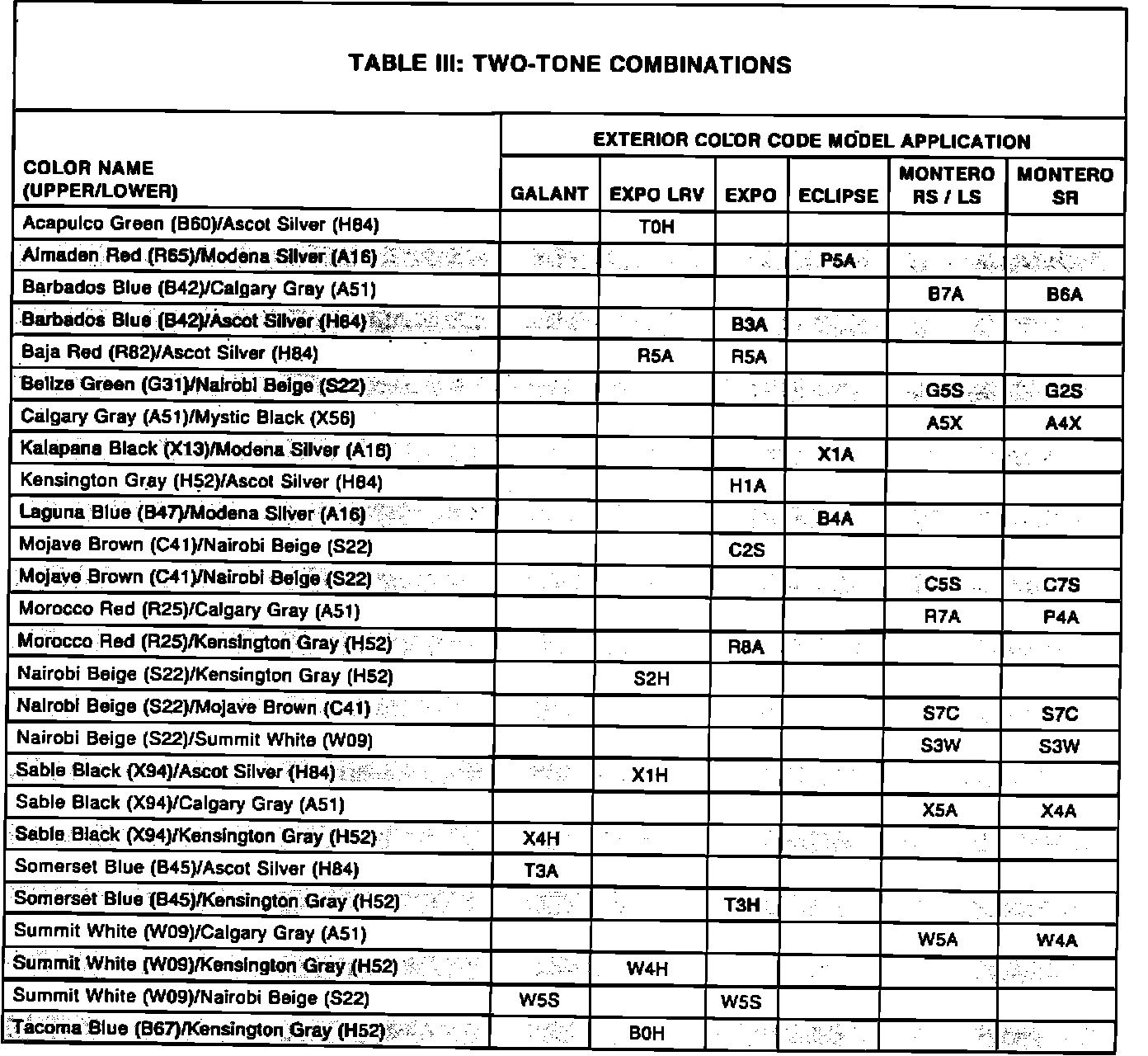

Table III shows the two-tone color combinations for 1992 models.

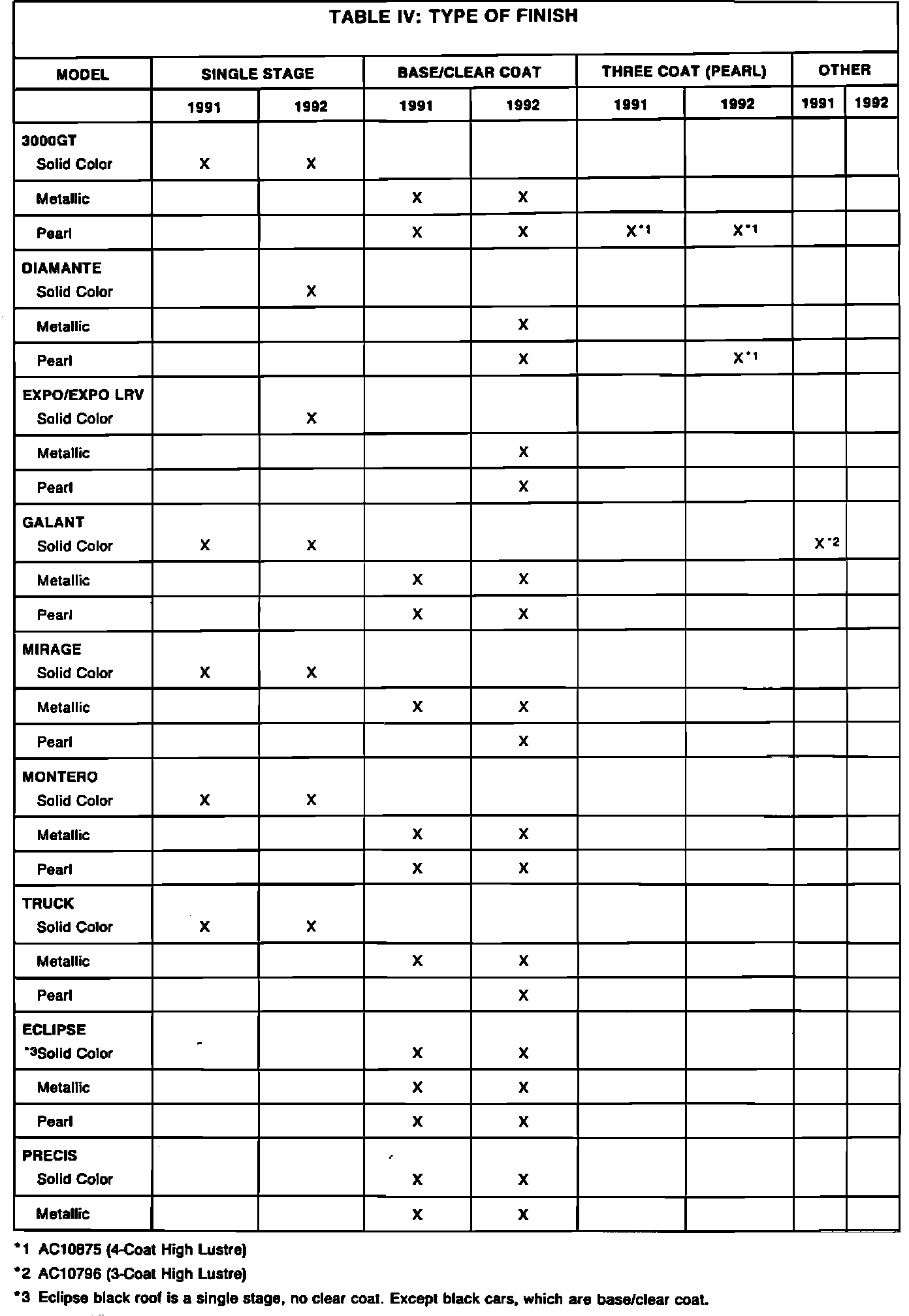

Table IV shows the types of finish for all 1991 and 1992 models.
