O2 Sensor - Revised Resistance Values
NO.: TSB-96-13-021DATE: November, 1996
MODEL: 1994-96 Galant
SUBJECT:
REVISED HEATED OXYGEN SENSOR HEATER
RESISTANCE - SERVICE MANUAL REVISION
TSB Revision TSB-96-13-021
PURPOSE
This bulletin contains revised resistance values for the heated oxygen sensor heater. The correct resistance value is 2.5 - 5.0 ohms
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
1994-96 Galant
AFFECTED SERVICE MANUALS
1994-95 Galant Service Manual, Volume 1, Pages 13A-93, 13A-124/125/126
1996 Galant Service Manual, Volume 1, Pages 13A-93/94, 13A-115/116/117
SERVICE MANUAL REVISIONS

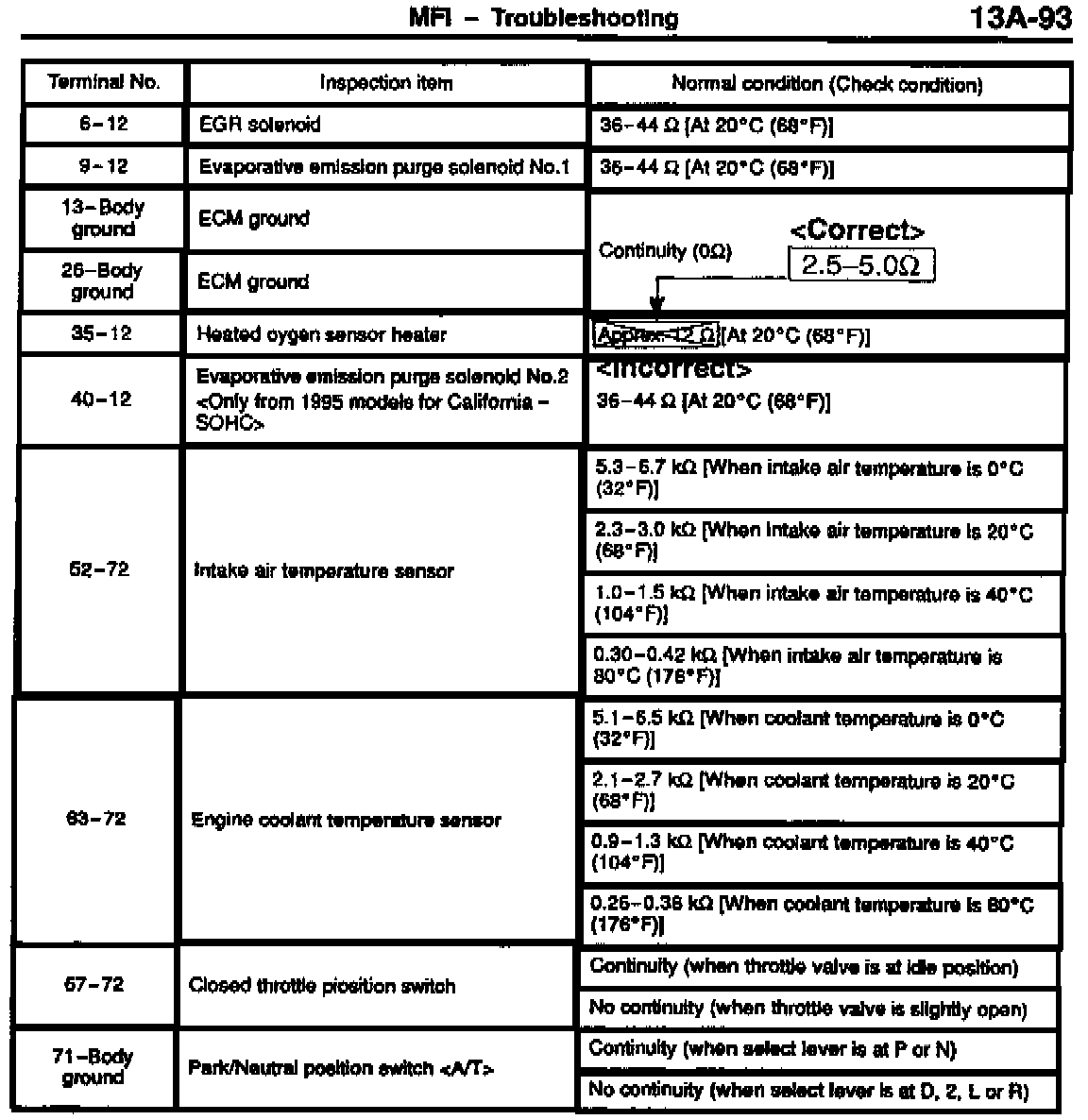

1994-95 Galant Service Manual, Volume 1, Page 13A-93
Change the heated oxygen sensor heater resistance value as shown.

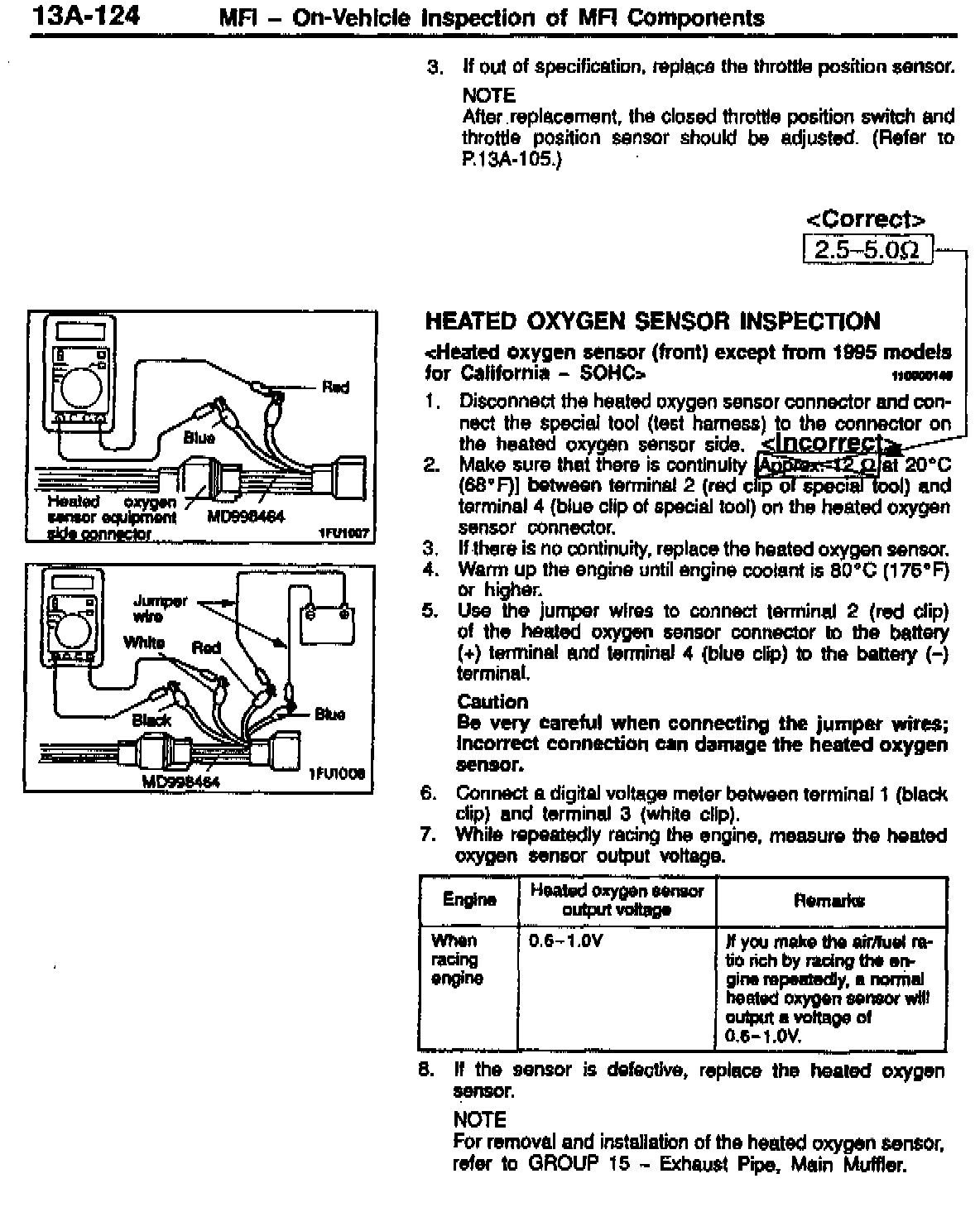

1994-95 Galant Service Manual, Volume 1, Page 13A-124
Change the heated oxygen sensor heater resistance value as shown.

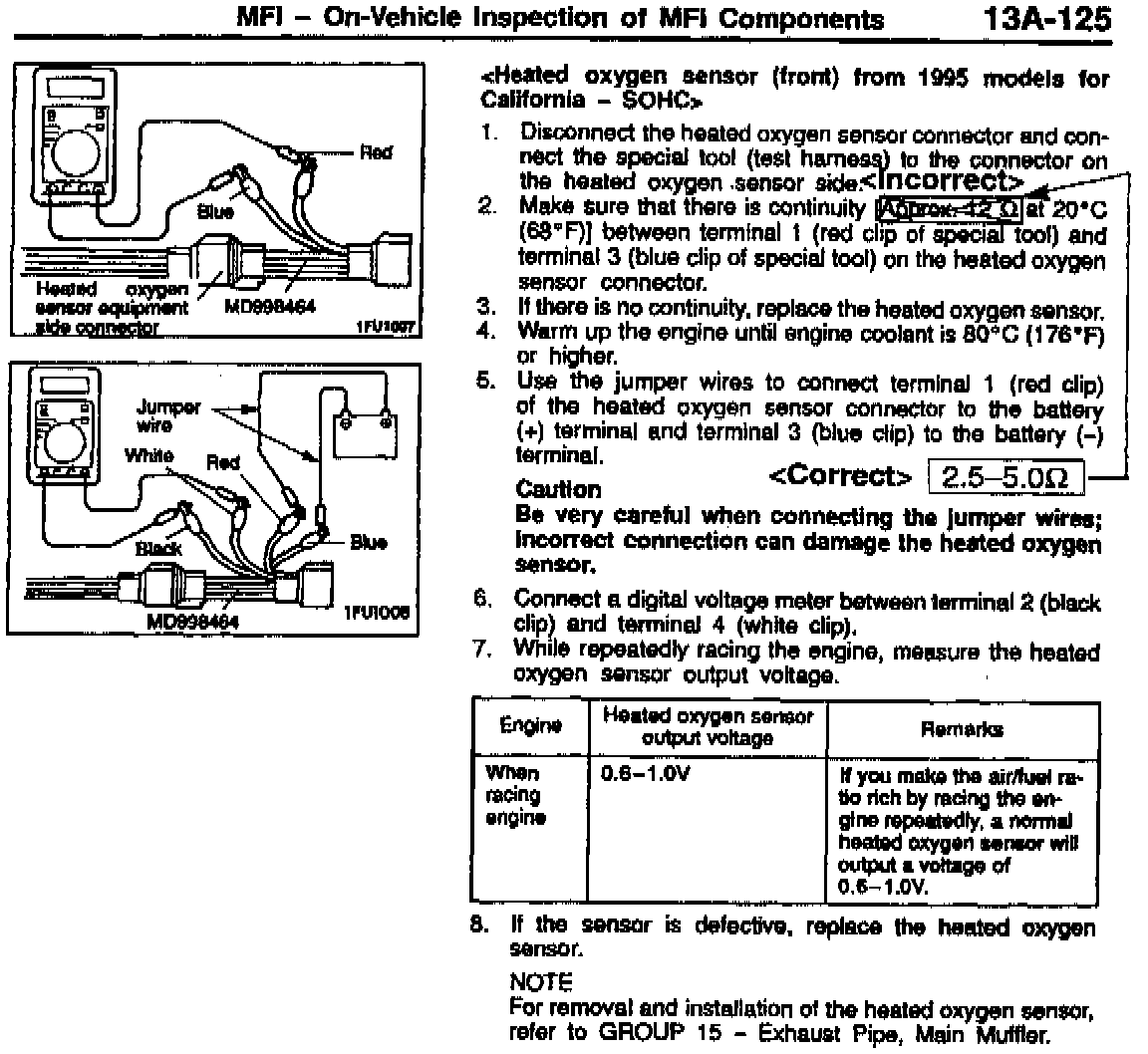

1994-95 Galant Service Manual, Volume 1, Page 13A-125
Change the heated oxygen sensor heater resistance value as shown.

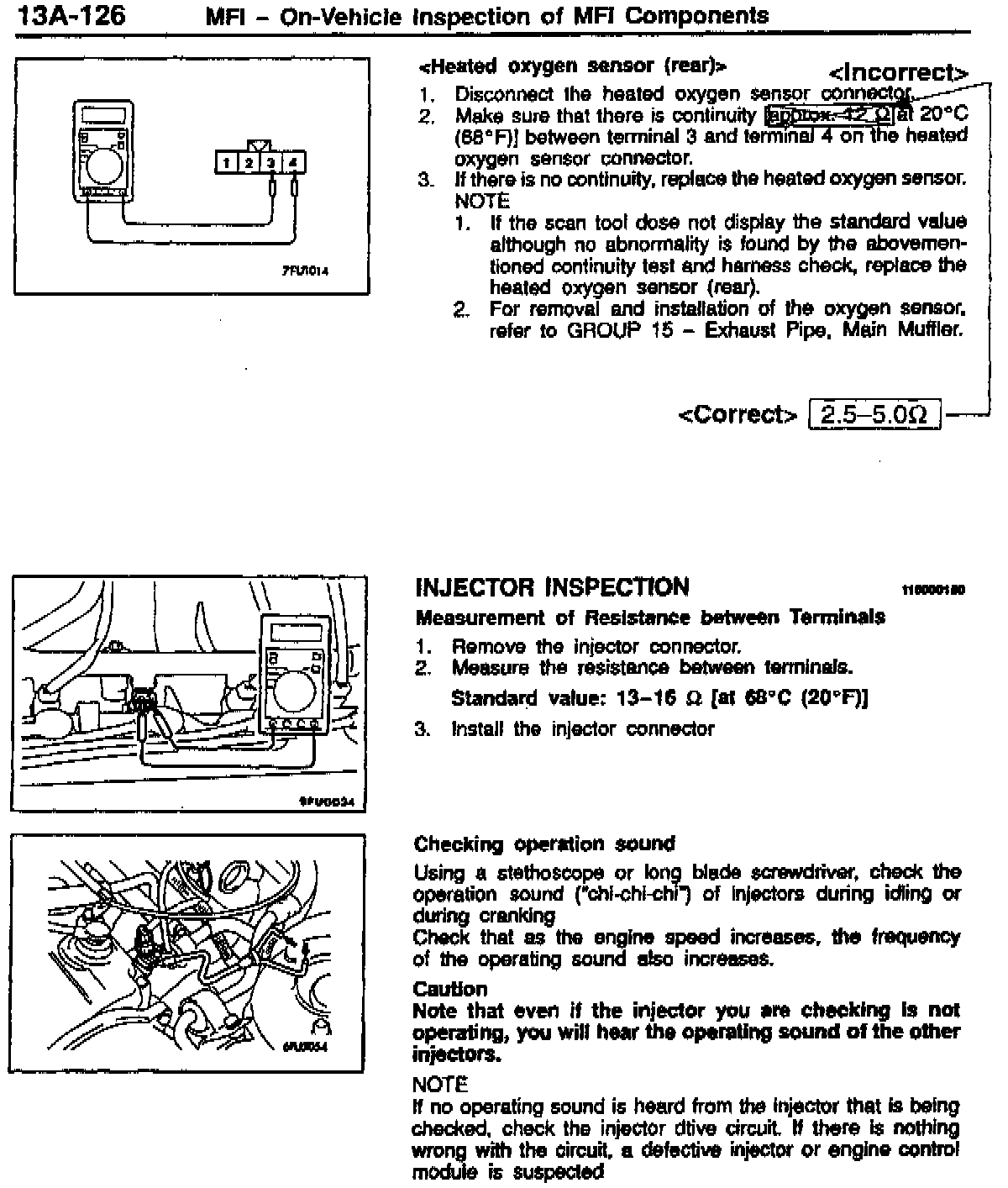

1994-95 Galant Service Manual, Volume 1, Page 13A-126
Change the heated oxygen sensor heater resistance value as shown.

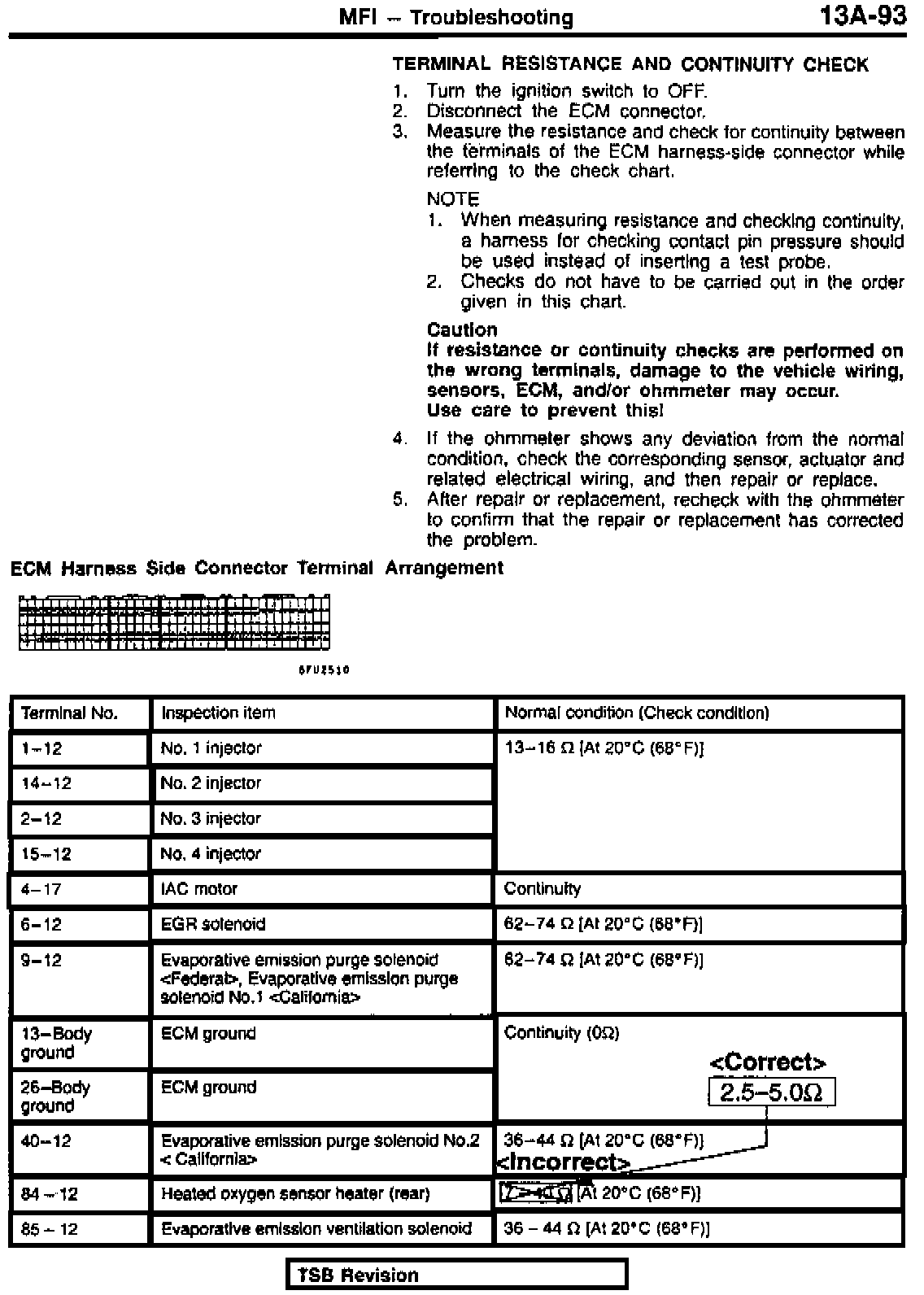

1996 Galant Service Manual, Volume 1, Page 13A-93
Change the heated oxygen sensor heater resistance value as shown.

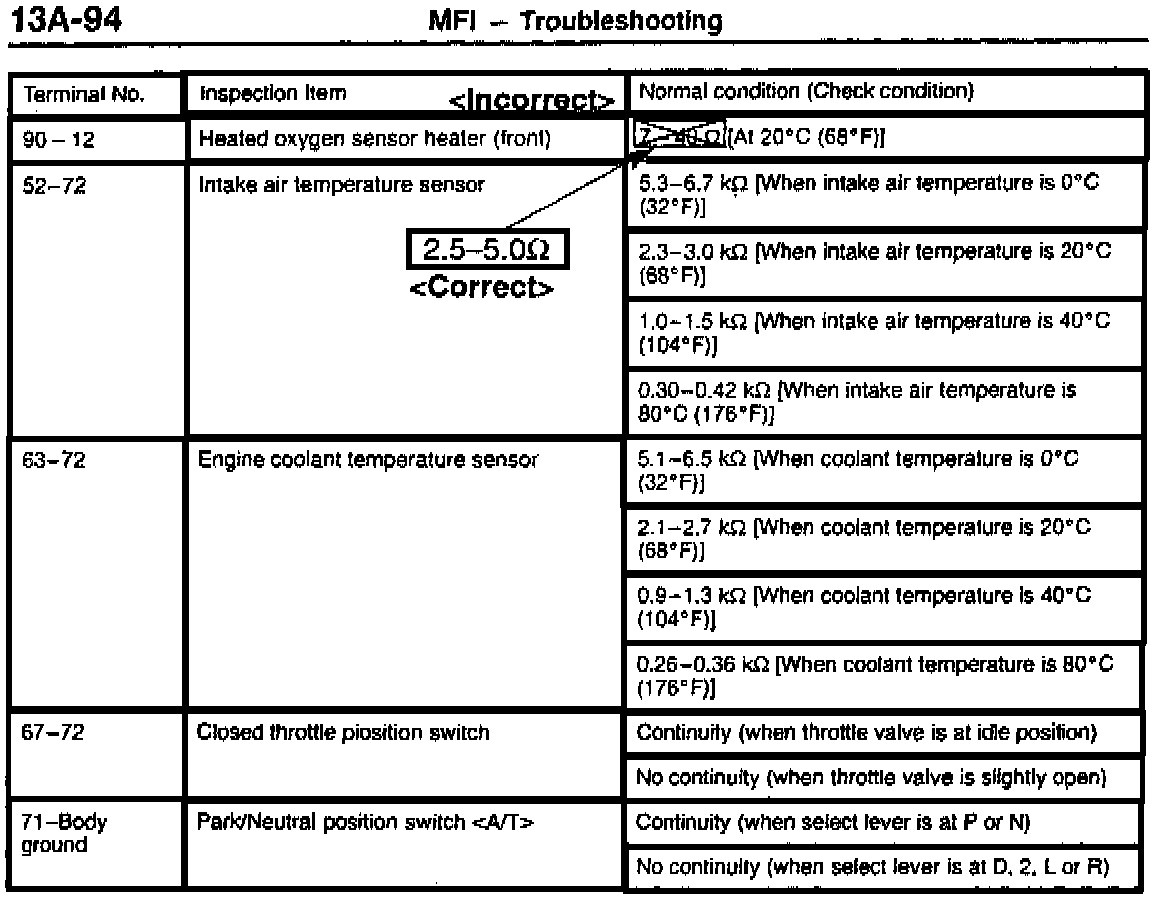

1996 Galant Service Manual, Volume 1, Page 13A-94
Change the heated oxygen sensor heater resistance value as shown.
1996 Galant Service Manual, Volume 1, Page 13A-115
Change the heated oxygen sensor heater resistance value as shown.

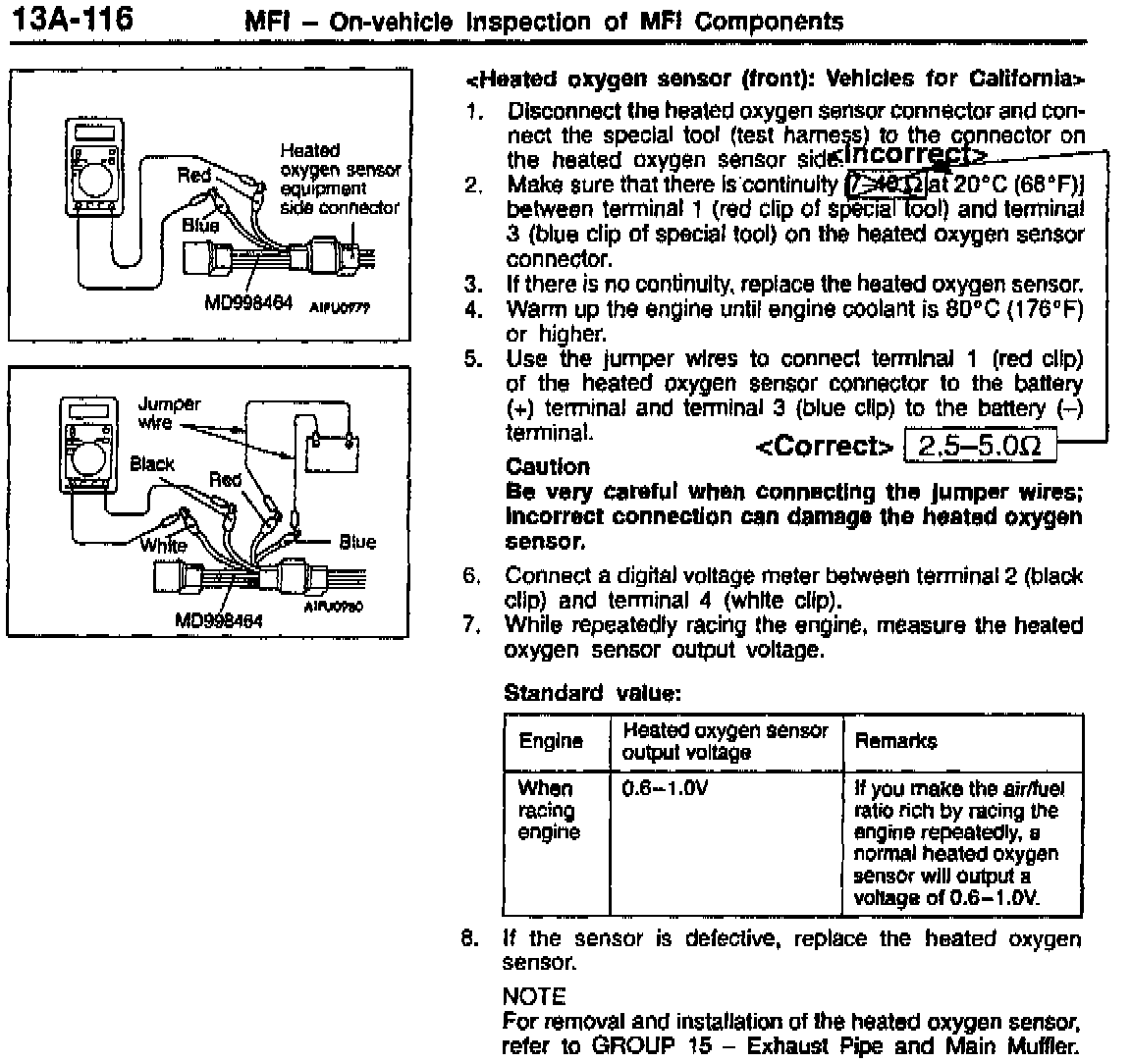

1996 Galant Service Manual, Volume 1, Page 13A-116
Change the heated oxygen sensor heater resistance value as shown.

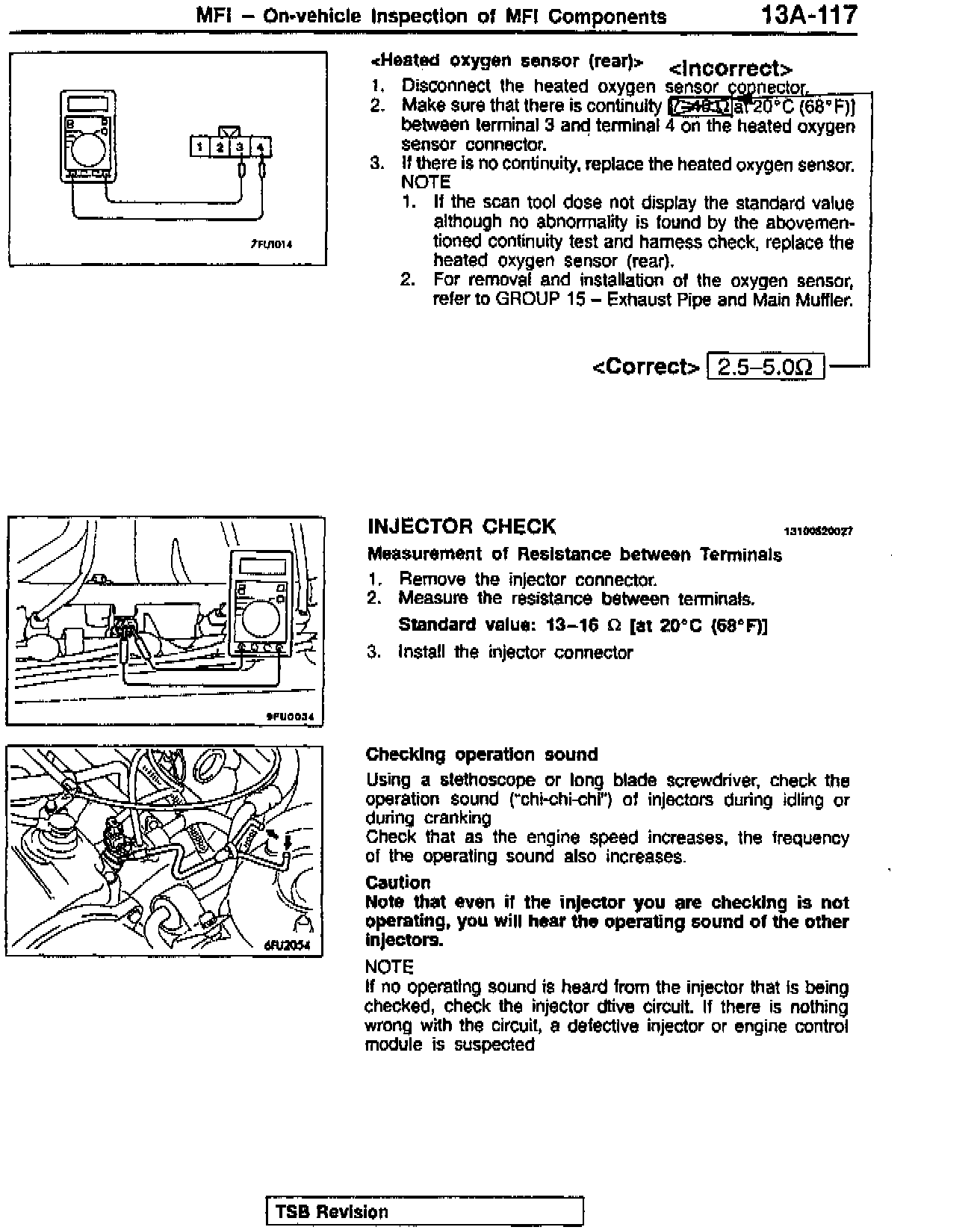

1996 Galant Service Manual, Volume 1, Page 13A-117
Change the heated oxygen sensor heater resistance value as shown.
