Speedometer Inspection

Speedometer Inspection (Part 1 Of 4):

1. Adjust the pressure of the types to the specified level.

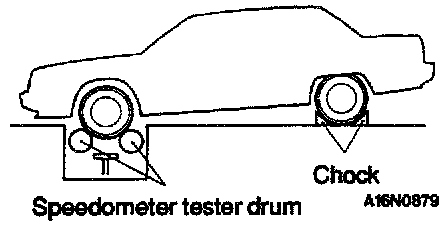

2. Place the vehicle on a speedometer tester drum.
3. Make sure the parking brake been set.

Speedometer Inspection (Part 2 Of 4):

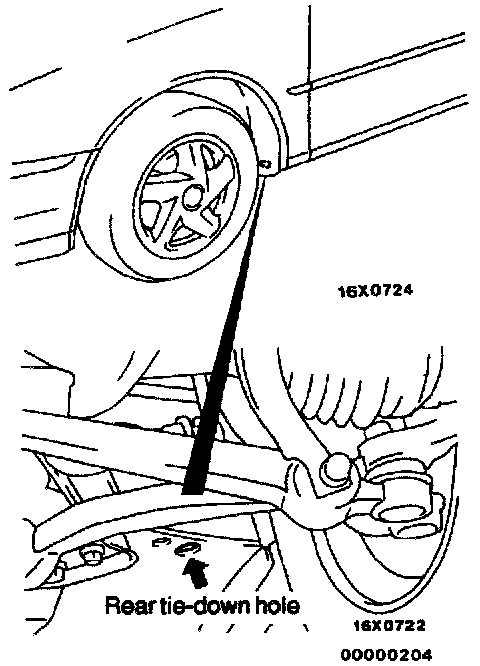

4. Attach a chain or wire to the rear tie-down holes. Make sure the end of the wire or chain is secured firmly.
5. Take all other necessary precautions.

Speedometer Inspection (Part 3 Of 4):

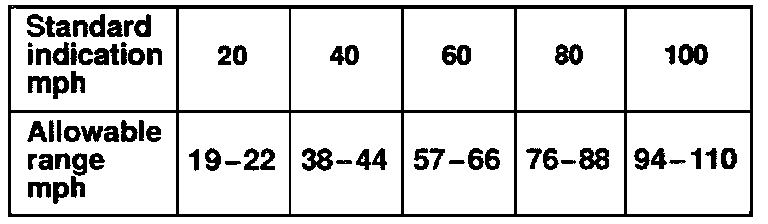

6. Check if the speedometer indication range is within the standard values.

CAUTION: Do not operate the clutch suddenly or increase/decrease speed rapidly while testing.
