Removal and Replacement

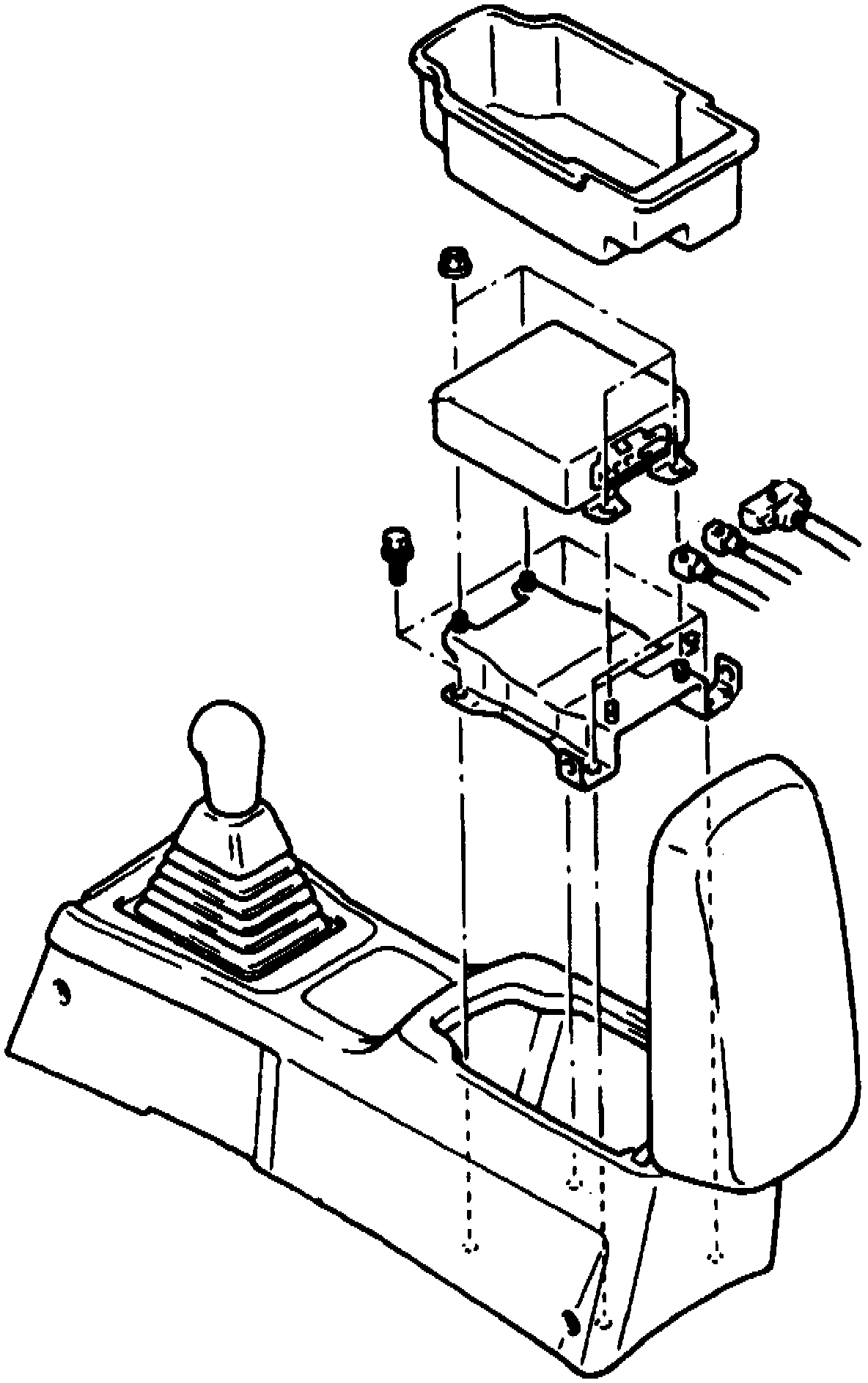

Fig. 34 SDU Replacement:
1.
Remove floor console,
Fig. 34.
2.
Remove SDU and harness.
Fig. 38 SRS-ECU Harness:
3.
Place flat tip screwdriver against connector metal lock spring, then push spring toward inside of SDU and disconnect harness,
Fig. 38.
4.
Reverse procedure to install.
