Intake Air Temperature Sensor
1.

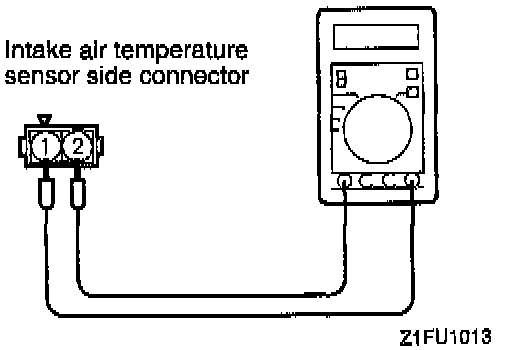

Disconnect the
intake air temperature sensor connectors.
2.

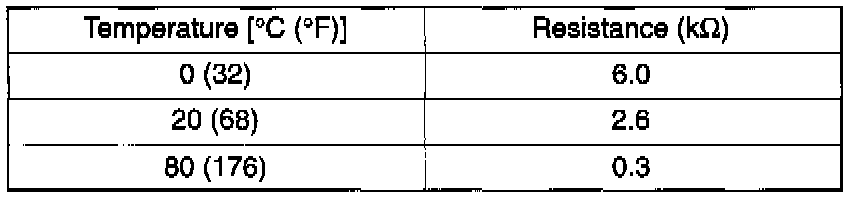

Measure resistance between terminals No. 1 and No. 2.
3.
Remove
intake air temperature sensor from intake manifold.
4.

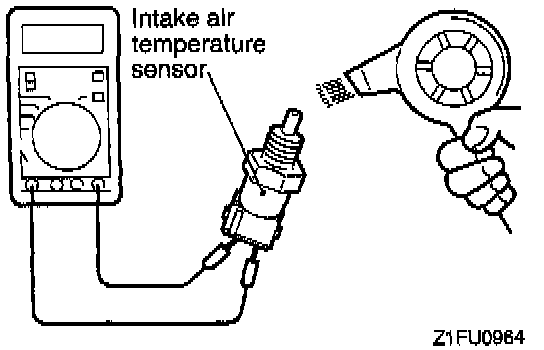

Measure resistance while heating the sensor using a hair drier.
5.

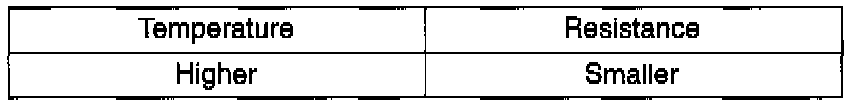

If resistance does not decrease as heat increase or the resistance remains unchanged, replace the
intake air temperature sensor.
