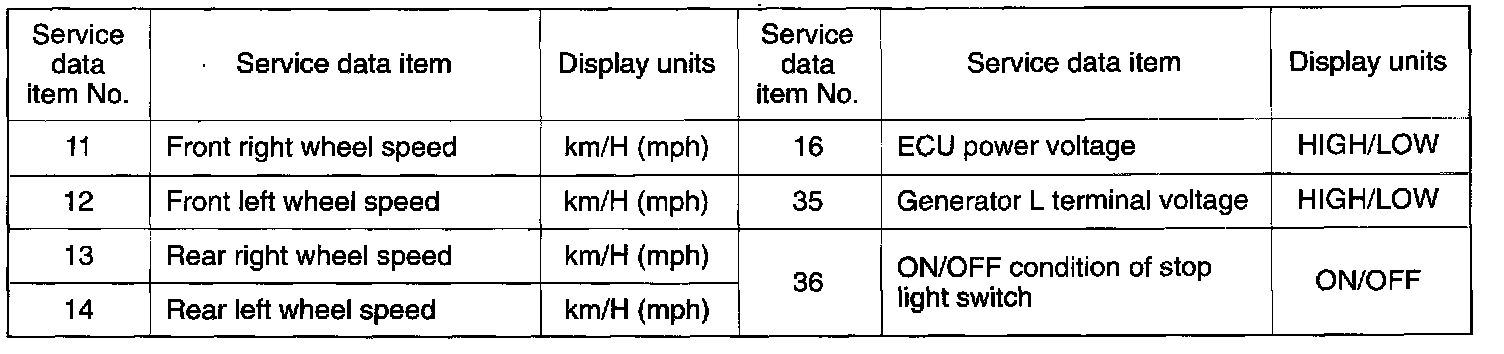

Service Data Reference Table
The following items can be read by the scan tool from the ABS-ECU input data.
WHEN THE SYSTEM IS NORMAL WHEN SYSTEM IS ISOLATED BY THE ABS-ECU When the ABS-ECU function is being stopped by the on-board diagnostic function, the above code nos. 11 - 14 for each wheel speed are not displayed. The normal scan tool display data is "
0.0 km/h (0.0 mph)".
