Service Data Reference Table

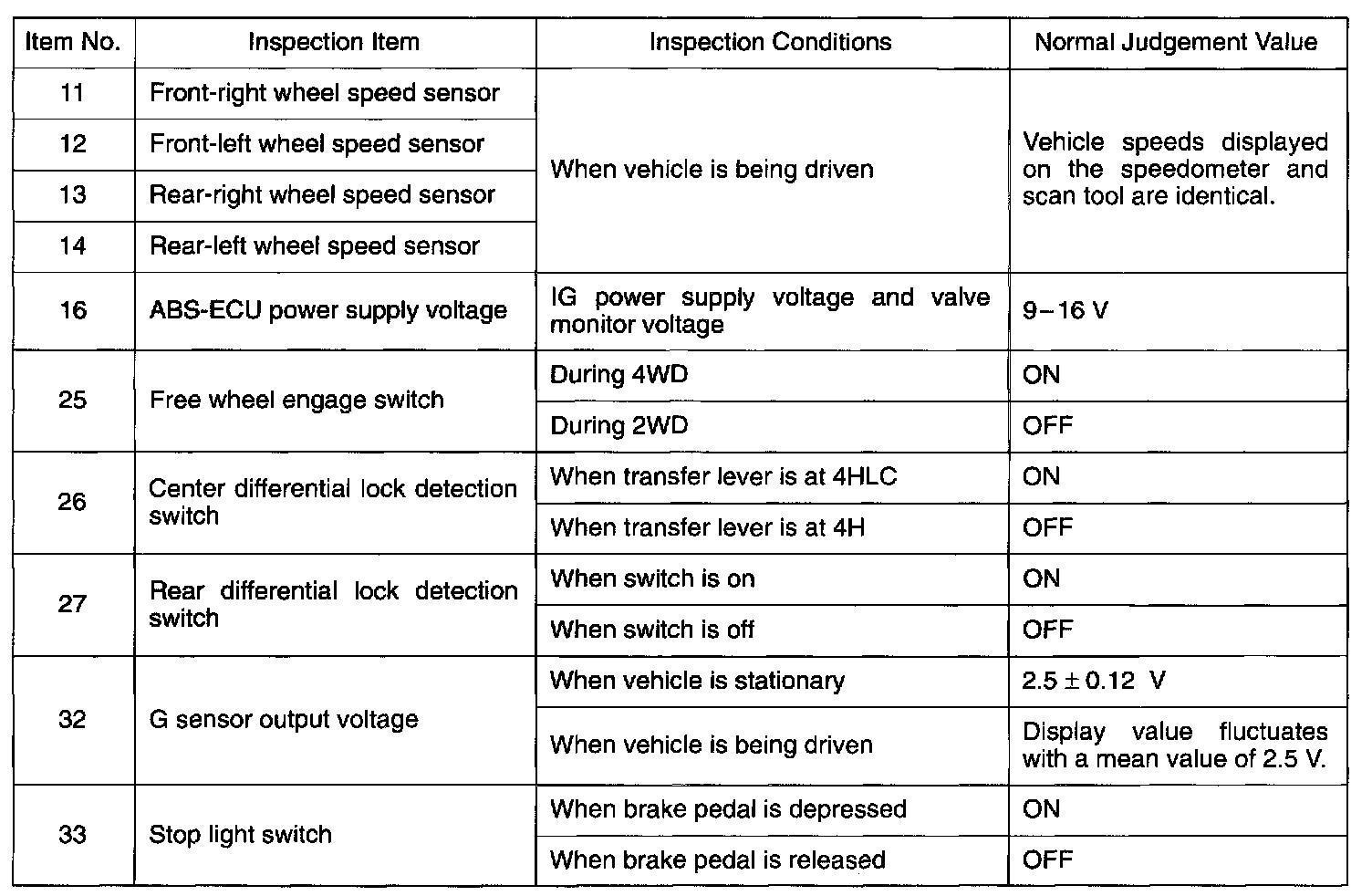

SERVICE DATA INSPECTION TABLEThe following items can be read by the scan tool from the ABS-ECU input data.
1.
When the system is normal
2.
When system is isolated by the ABS-ECU
When the functioning of the ABS-ECU has been stopped by the on-board diagnostics, the scan tool display data will be different from actual conditions.
