Component Tests and General Diagnostics

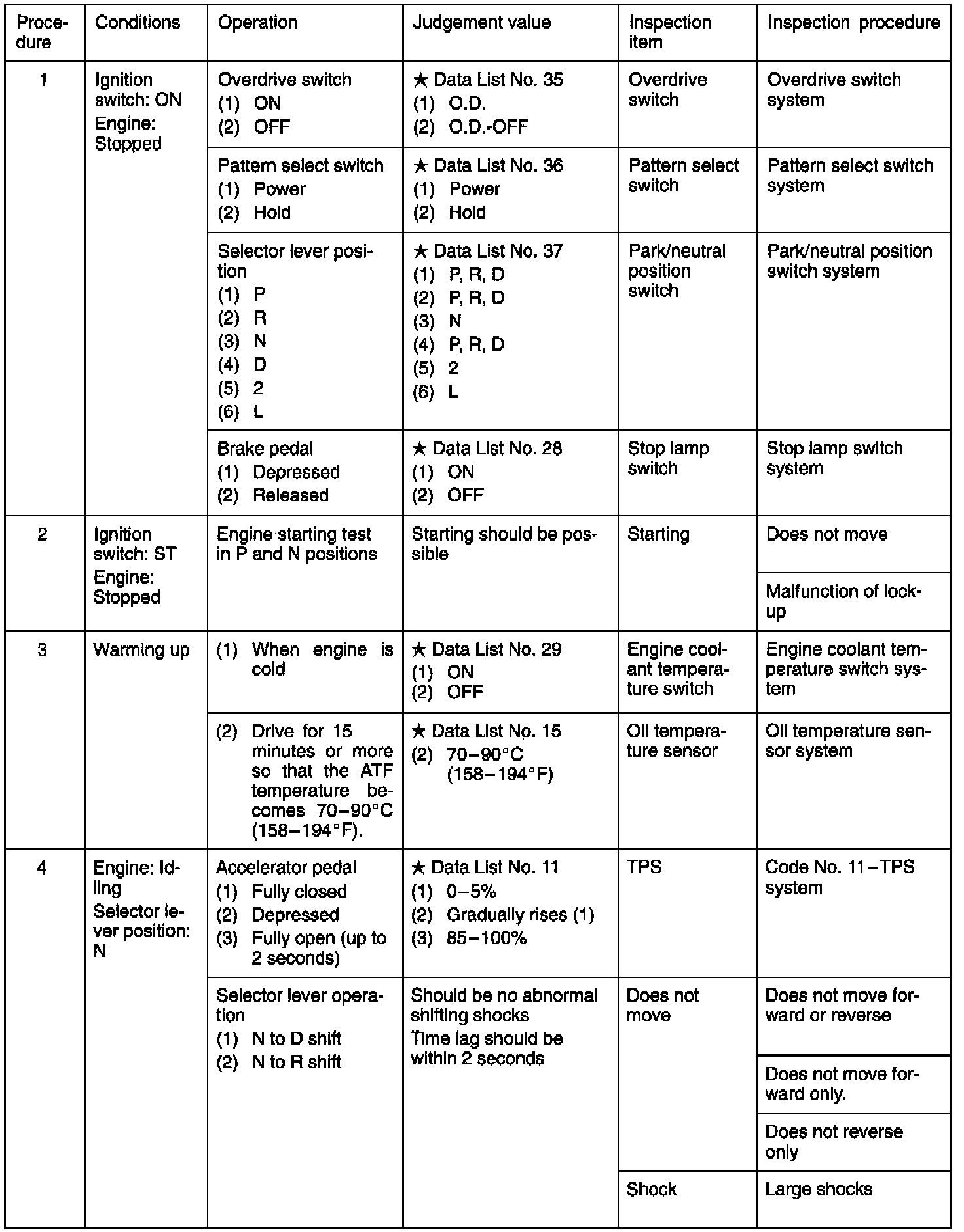

Road Test Chart 1 of 3:




Image 1 of 3

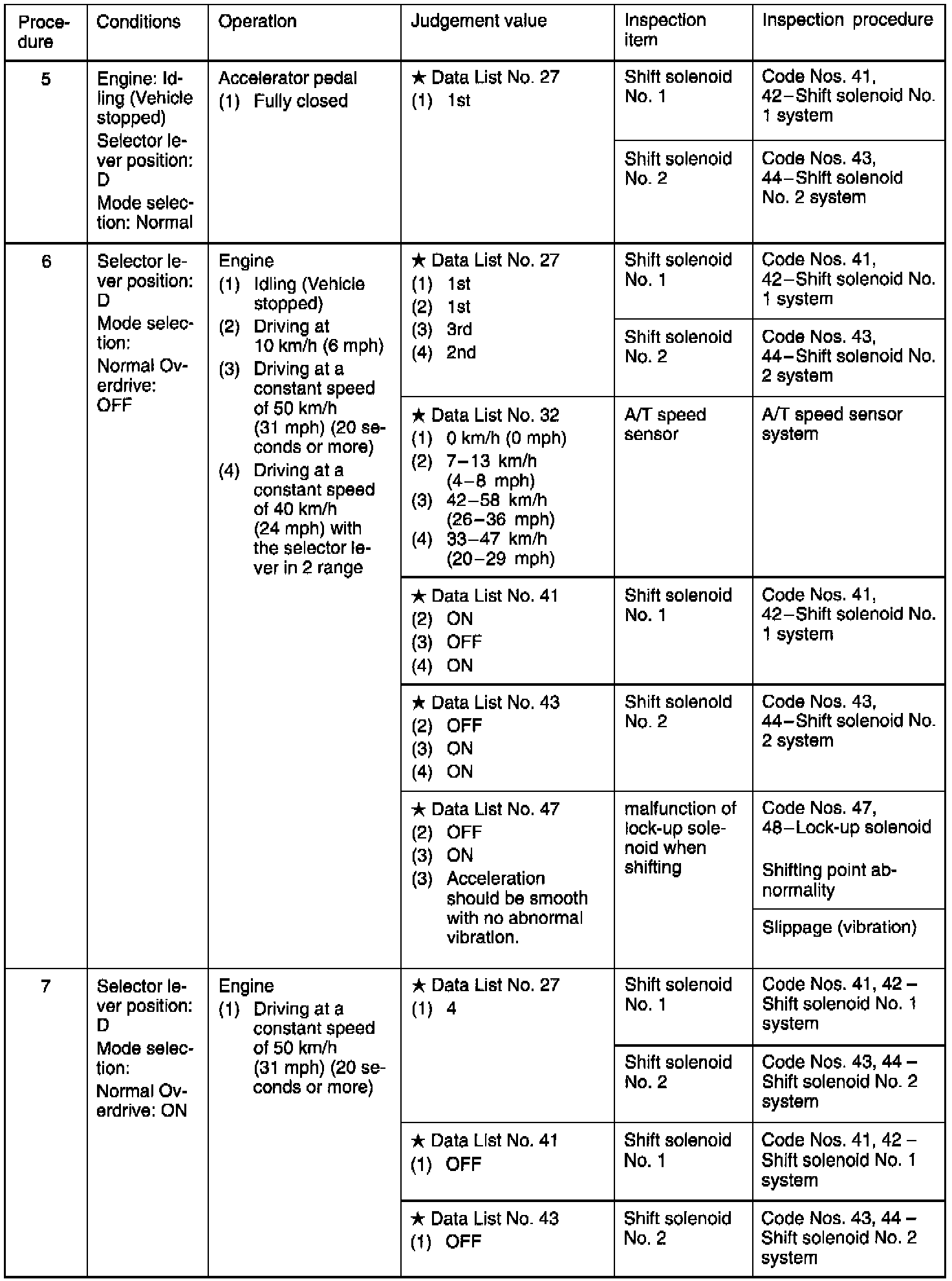

Road Test Chart 2 of 3:




Image 2 of 3

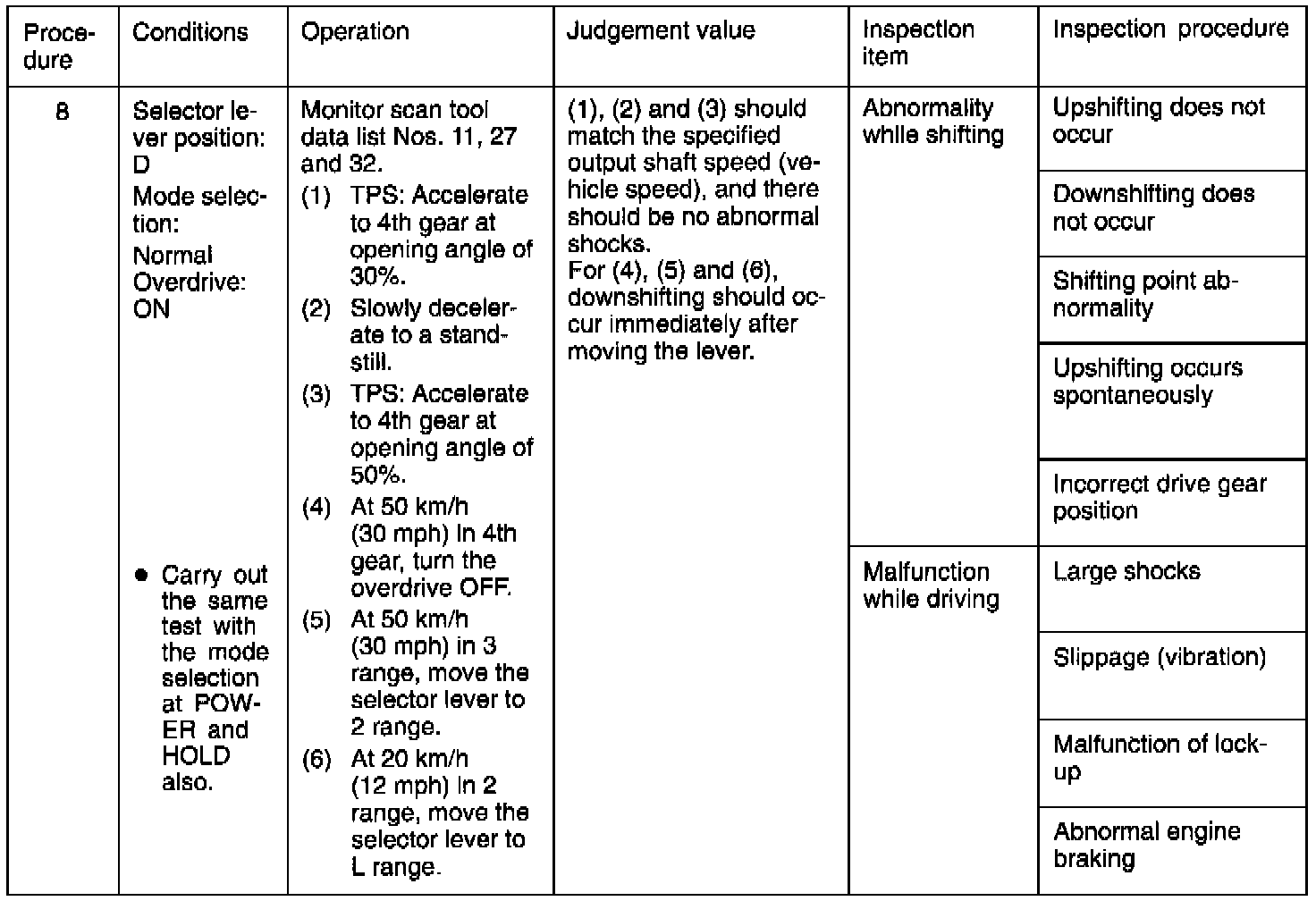

Road Test Chart 3 of 3:




Image 3 of 3
ROAD TEST PROCEDURE
NOTE: Perform road test with transfer lever in the 4H position.
