Blower Motor: Service and Repair

1. Disconnect battery ground cable.
2. Remove glove compartment housing cover assembly, then the lower crash pad assembly.
3. Disconnect resistor and blower motor electrical connectors.
4. Disconnect ventilation tube from blower motor.

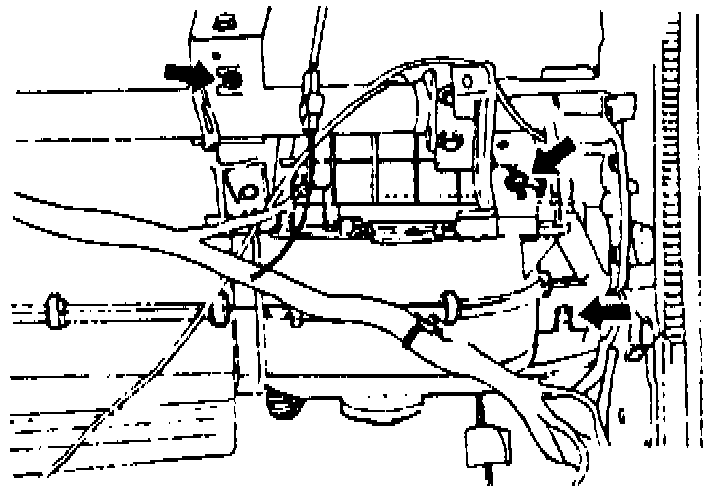

Fig. 11 Blower Unit Attaching Bolt Locations:

5. Remove blower unit attaching bolts, Fig. 11.
6. Pull blower unit out slightly, then disconnect recirculation vacuum connector.
7. Remove blower motor from blower unit.
8. Reverse procedure to install.
