Fastener Tightening Specifications

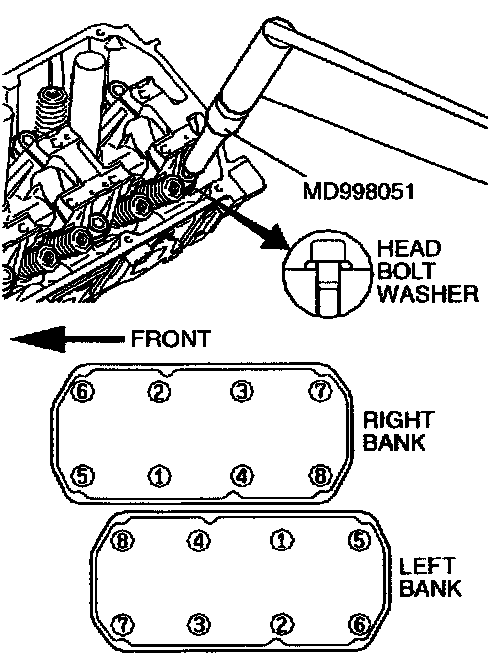

CYLINDER HEAD BOLT INSTALLATION CAUTION: Attach the head bolt washer in the direction shown in the figure.
1.
Tighten the bolts in two three stages in the illustrated sequence.
Tightening torque:
108 ± 5 Nm (80 ± 4 ft. lbs.) 2.
Back off the bolts once and tighten them to the specified torque in the same procedure in step (1).
RELATED TIGHTENING SPECIFICATIONS:
