Heating System Troubleshooting - Manual Type

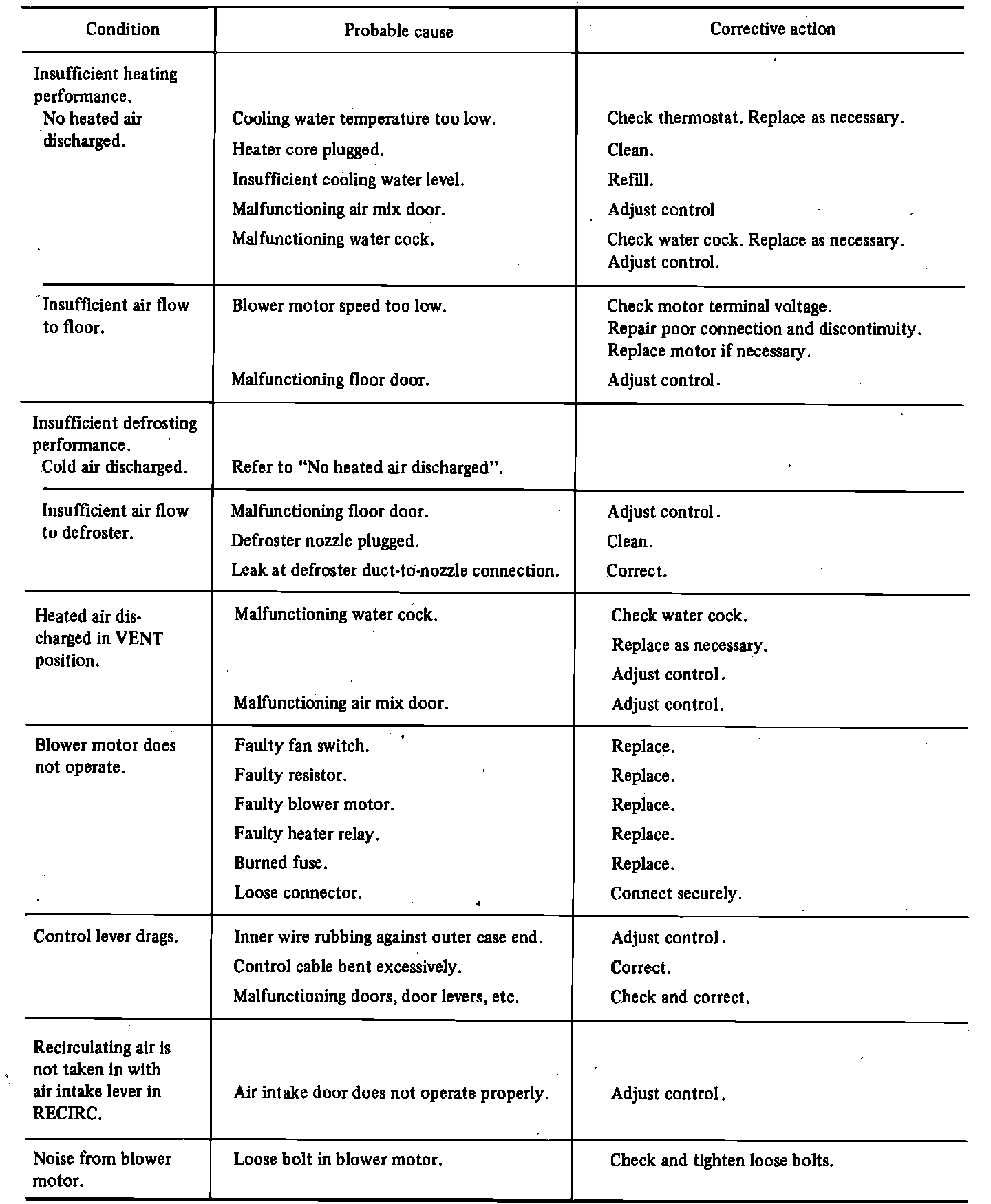

Fig. 25 Heater diagnosis chart:
When diagnosing heater operation, refer to
Fig. 25.NOTE: Components described are those found in both Manual A/C and Automatic Temperature Control systems. Refer to "Automatic Temperature Control" for diagnosis and testing of components unique to that system.
