Vacuum Control Flap Switchover Valve: Testing and Inspection

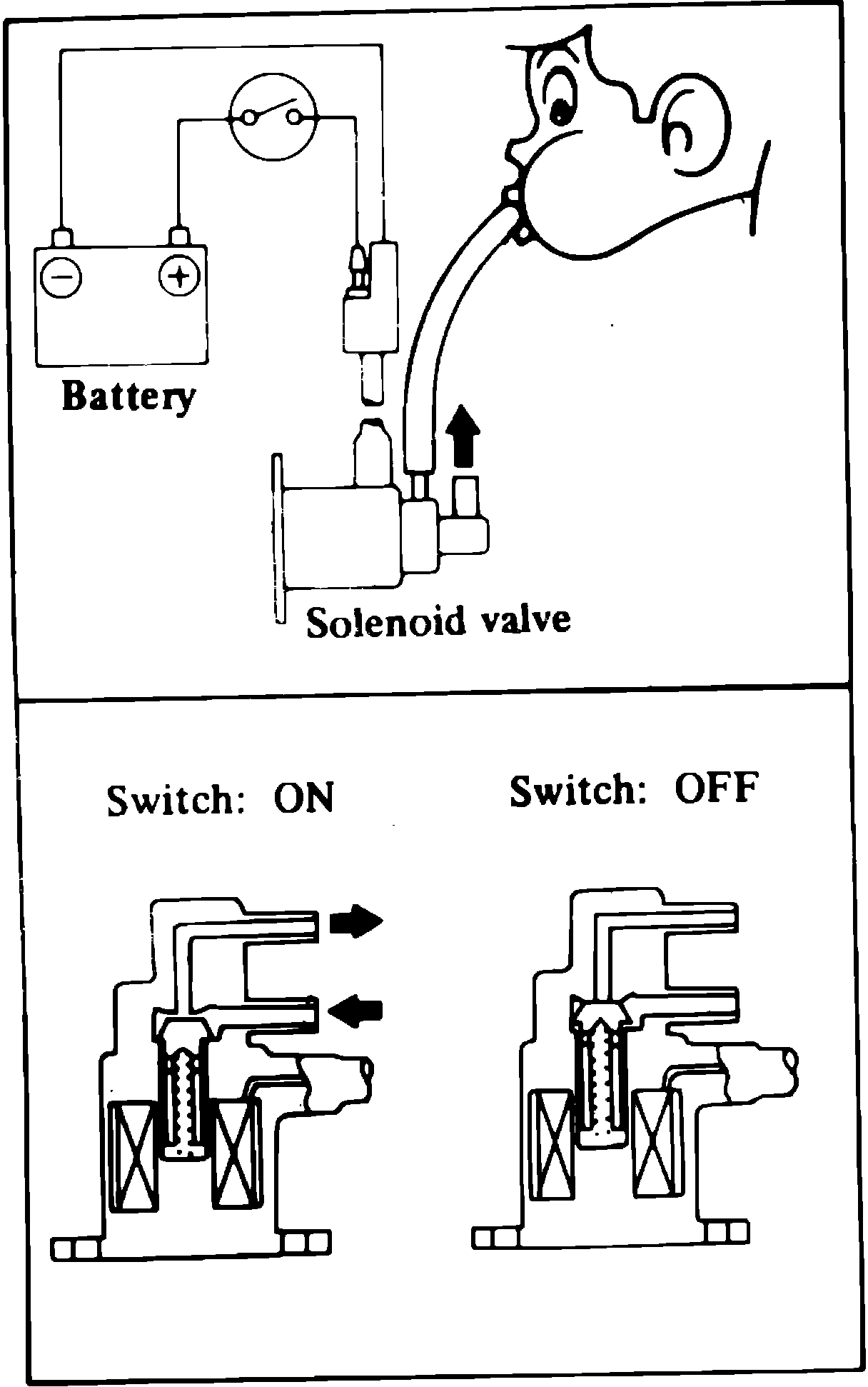

Fig. 22 Vacuum switching valve air flow:
1.
Remove both hoses and harness, solenoid attaching screws and remove valve.
2.
Operate solenoid valve with battery voltage to determine if air flows through valve properly,
Fig. 22.
