Remote Keyless Entry System





REMOTE KEYLESS ENTRY SYSTEM

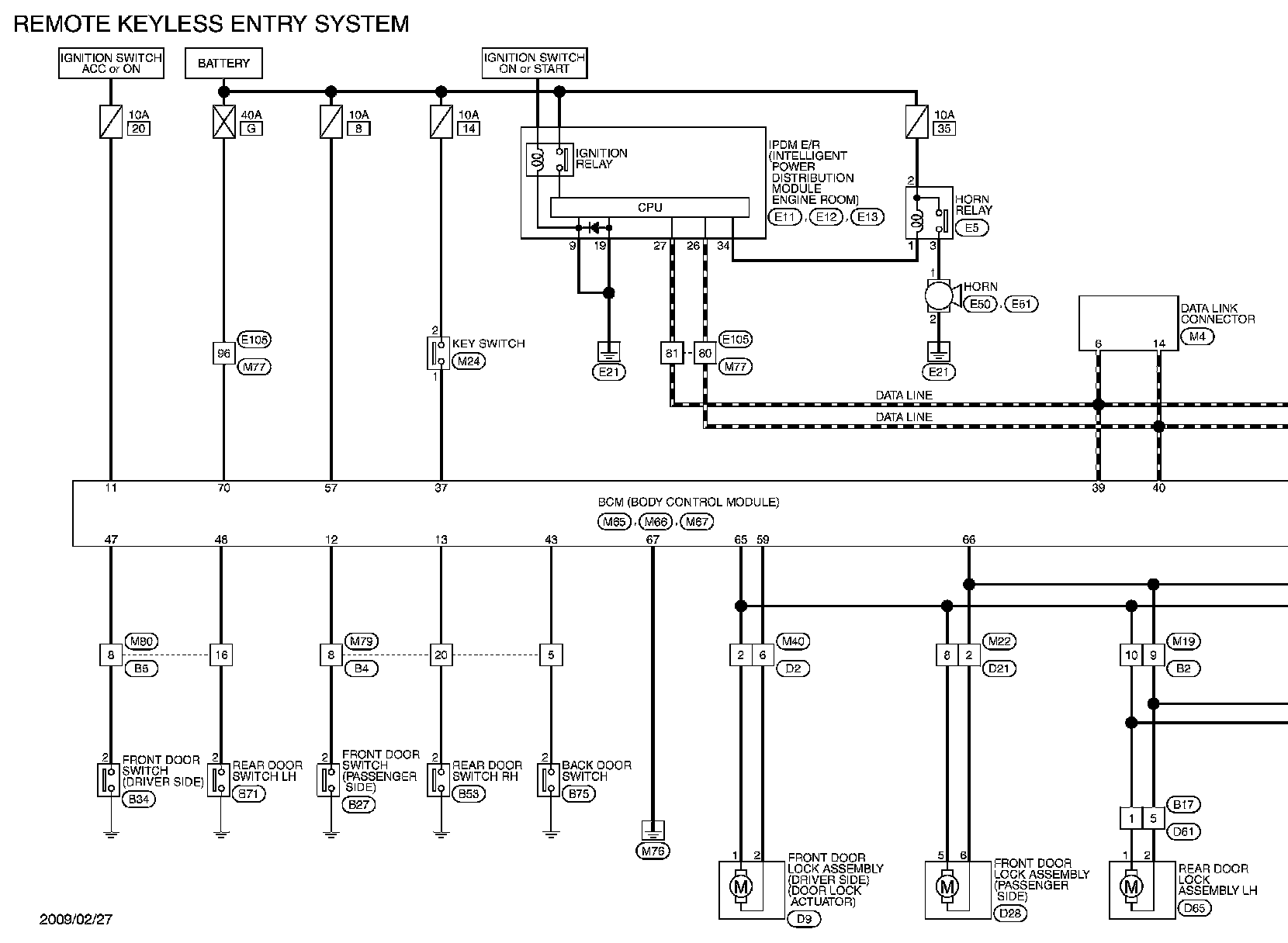

Wiring Diagram - REMOTE KEYLESS ENTRY SYSTEM -

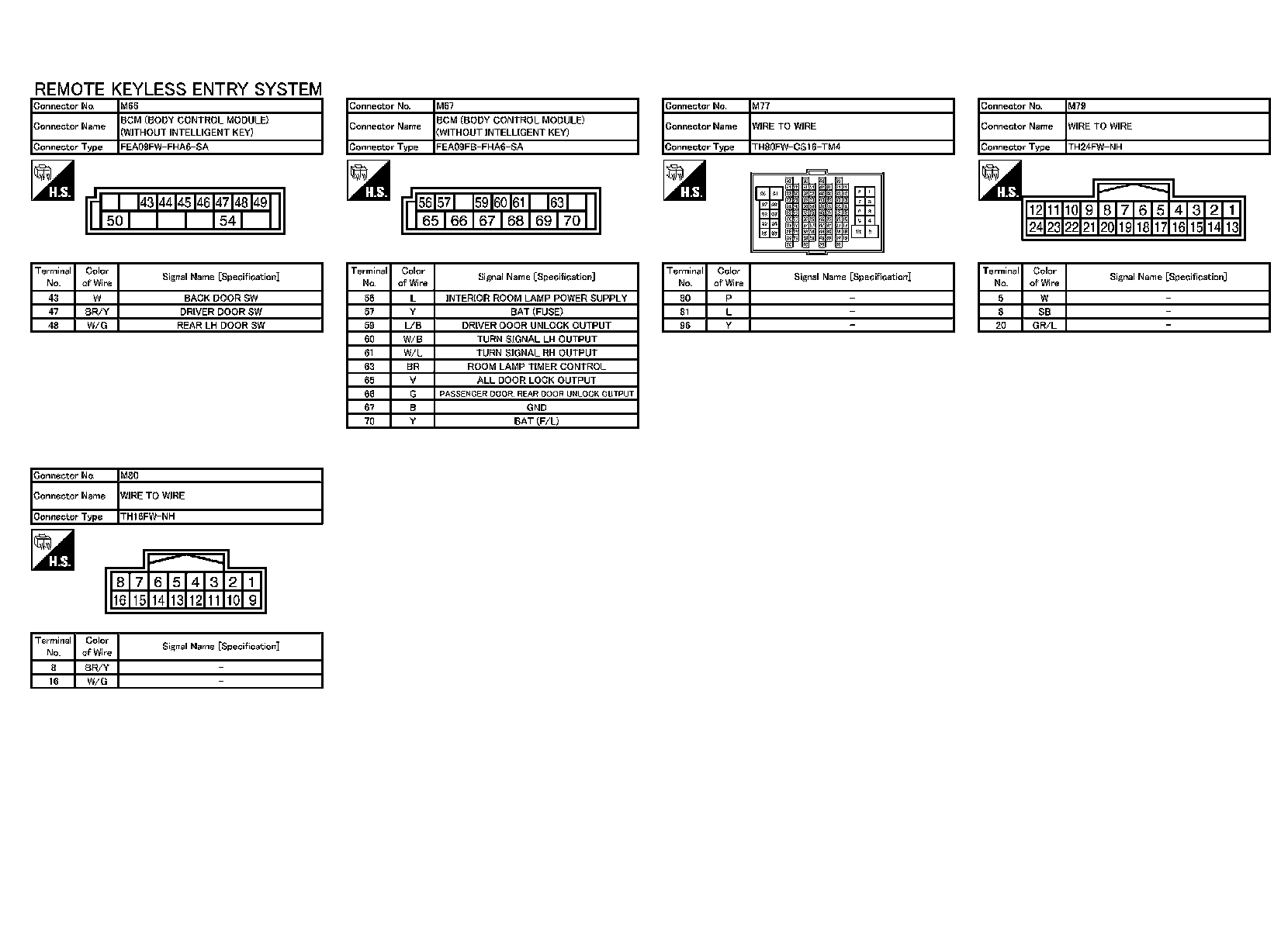

Remote Keyless Entry System - Part 1:

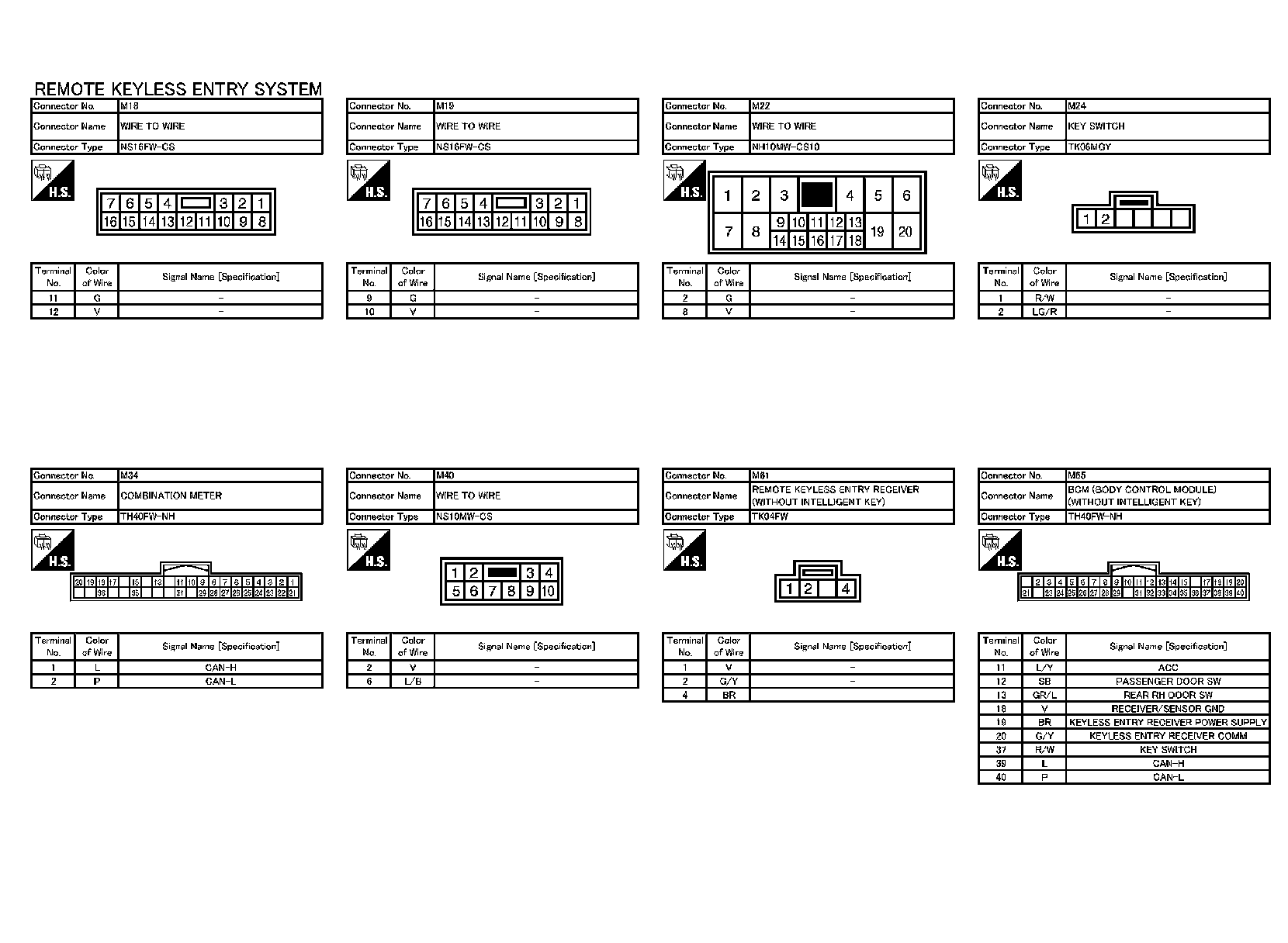

Remote Keyless Entry System - Part 2:

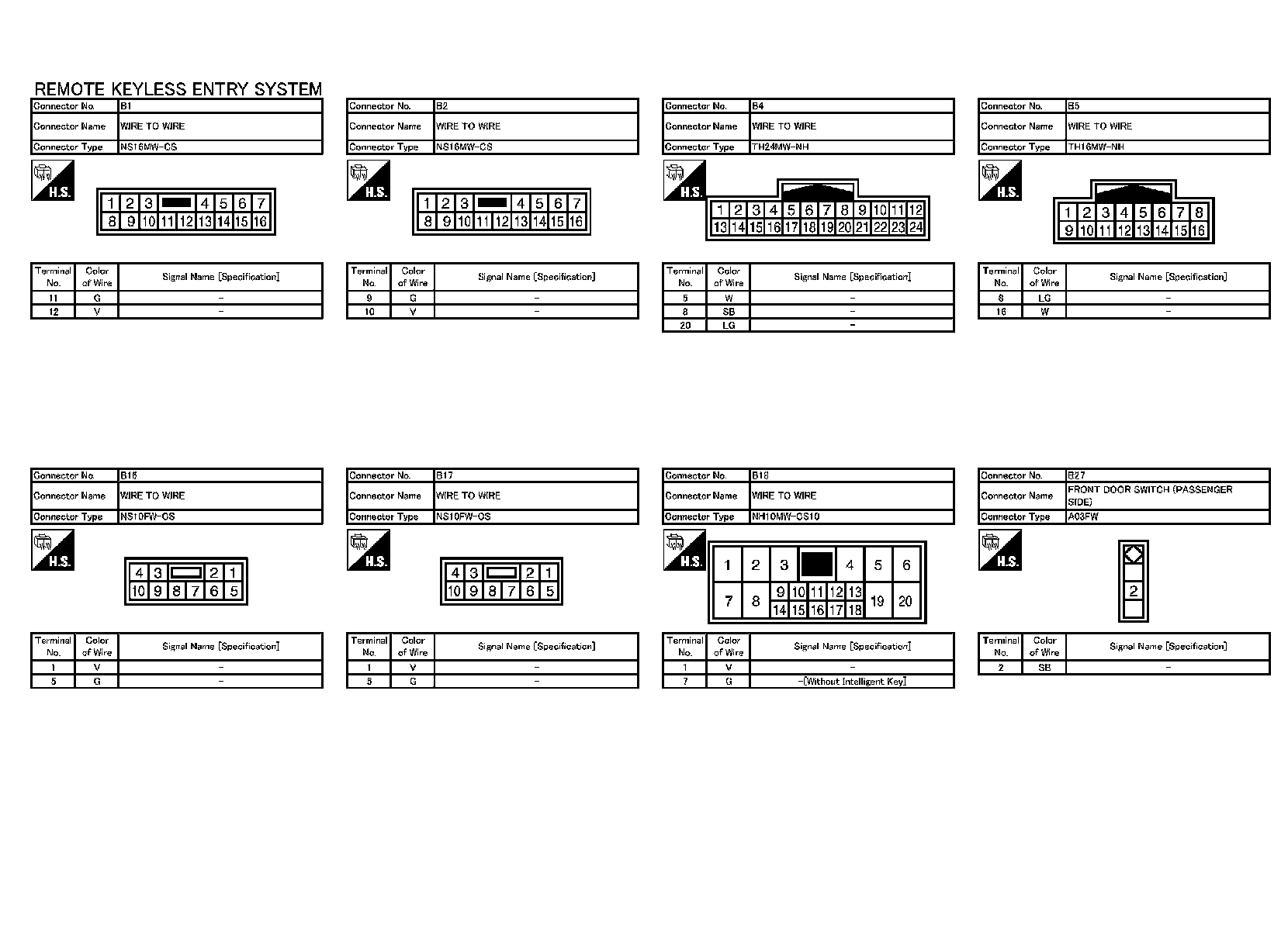

Remote Keyless Entry System - Part 3:

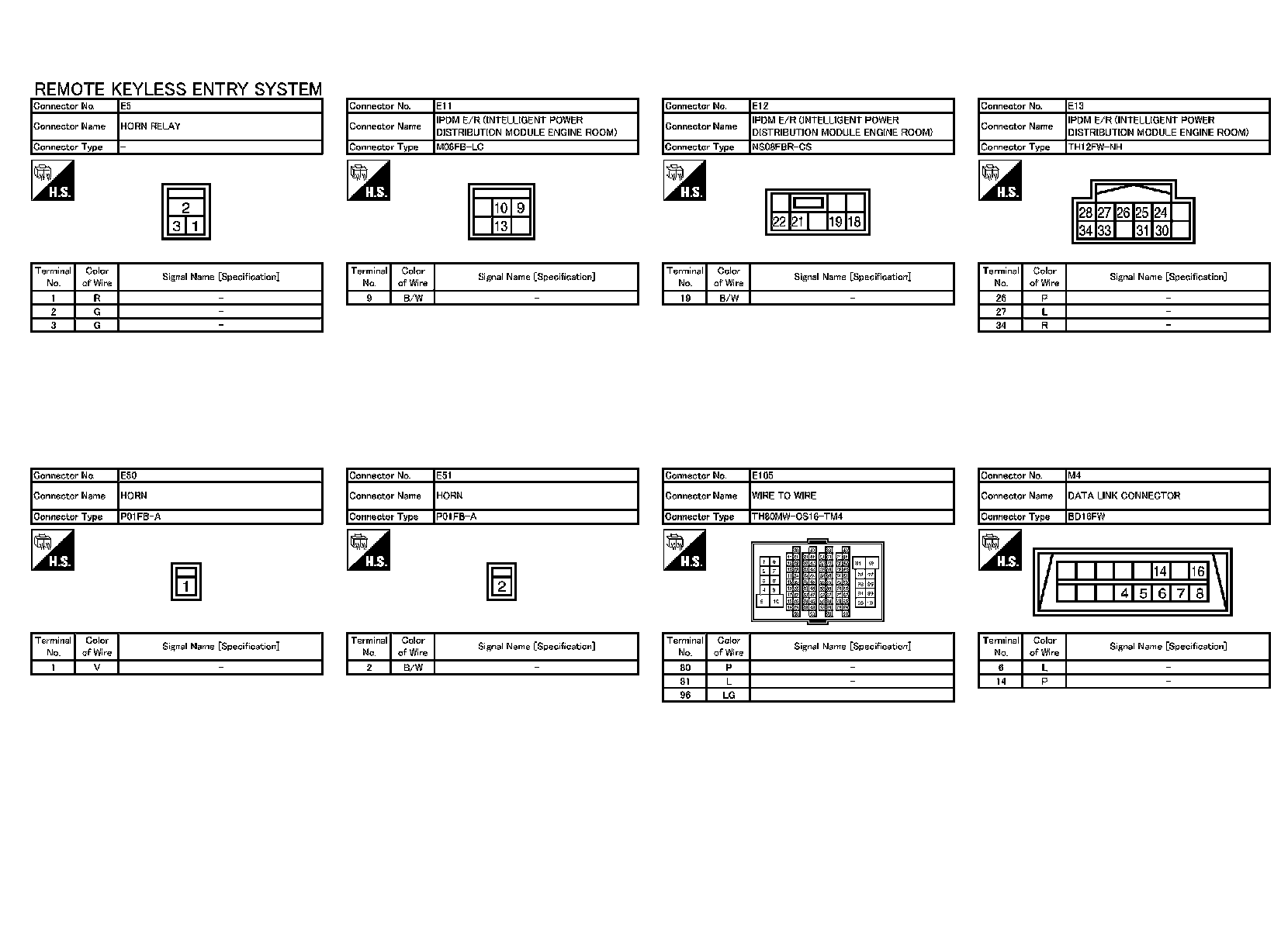

Remote Keyless Entry System - Part 4:

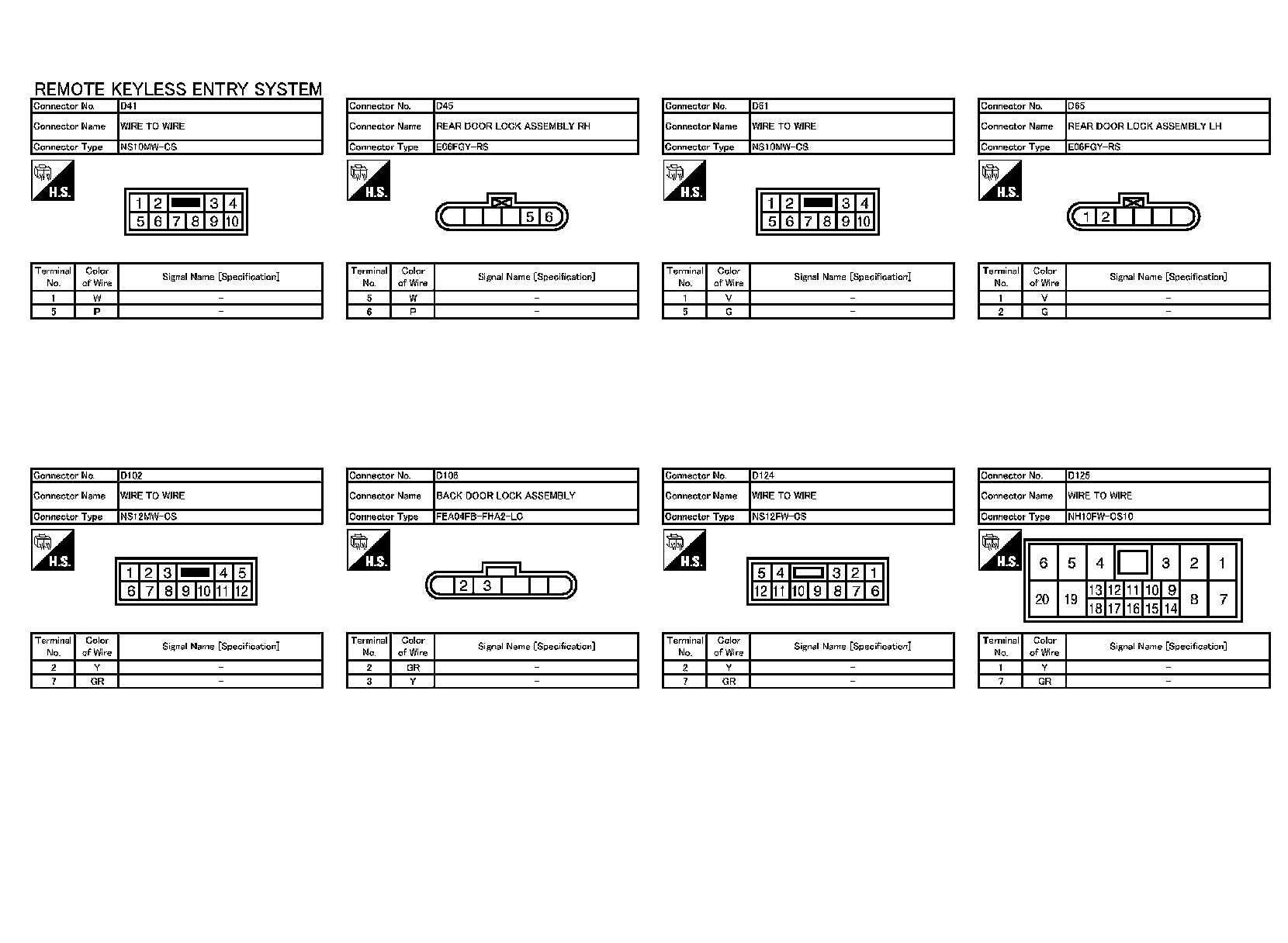

Remote Keyless Entry System - Part 5:

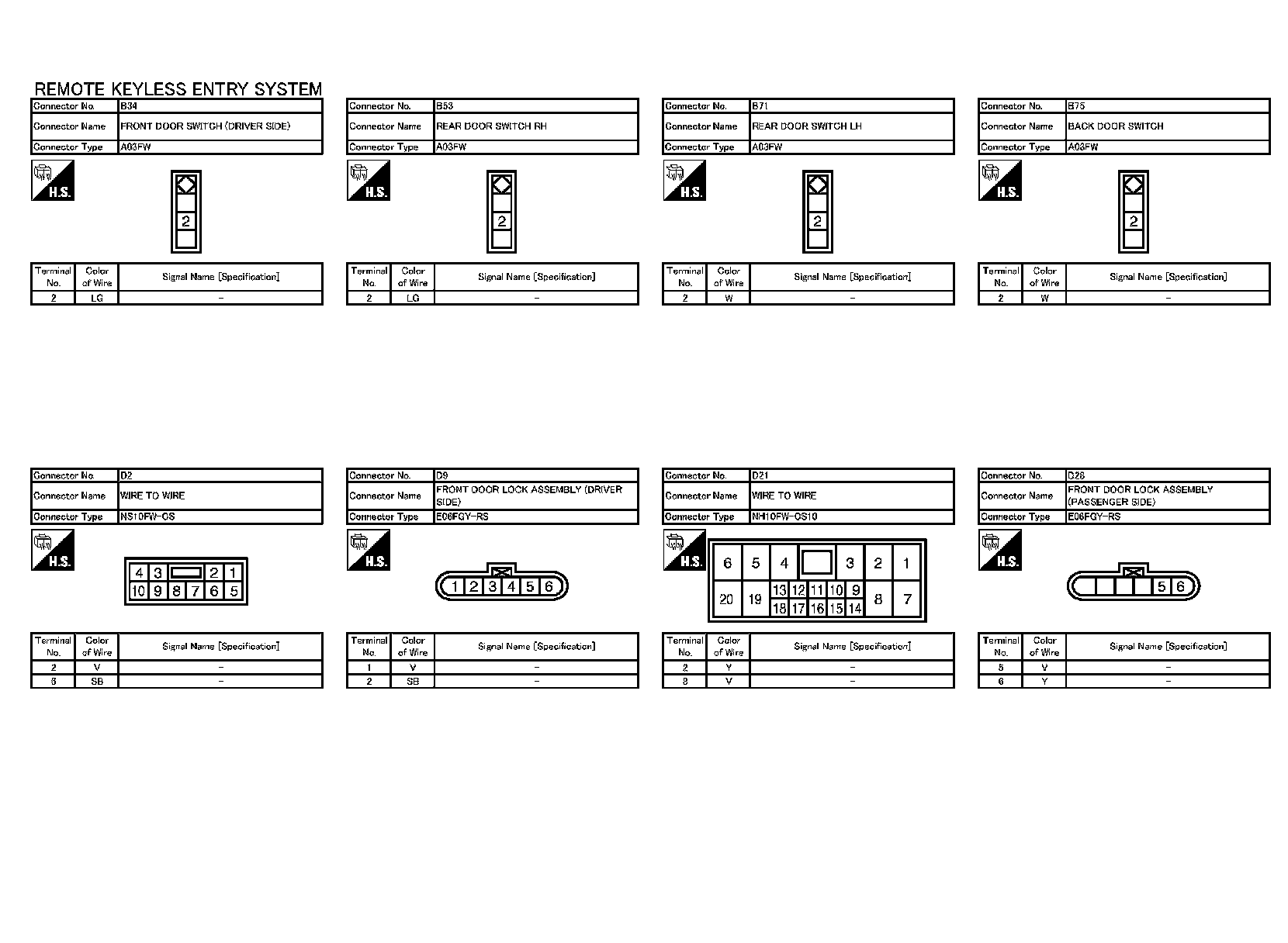

Remote Keyless Entry System - Part 6:






Remote Keyless Entry System - Part 7:






Remote Keyless Entry System - Part 8:
