System Specifications





SERVICE DATA AND SPECIFICATIONS (SDS)


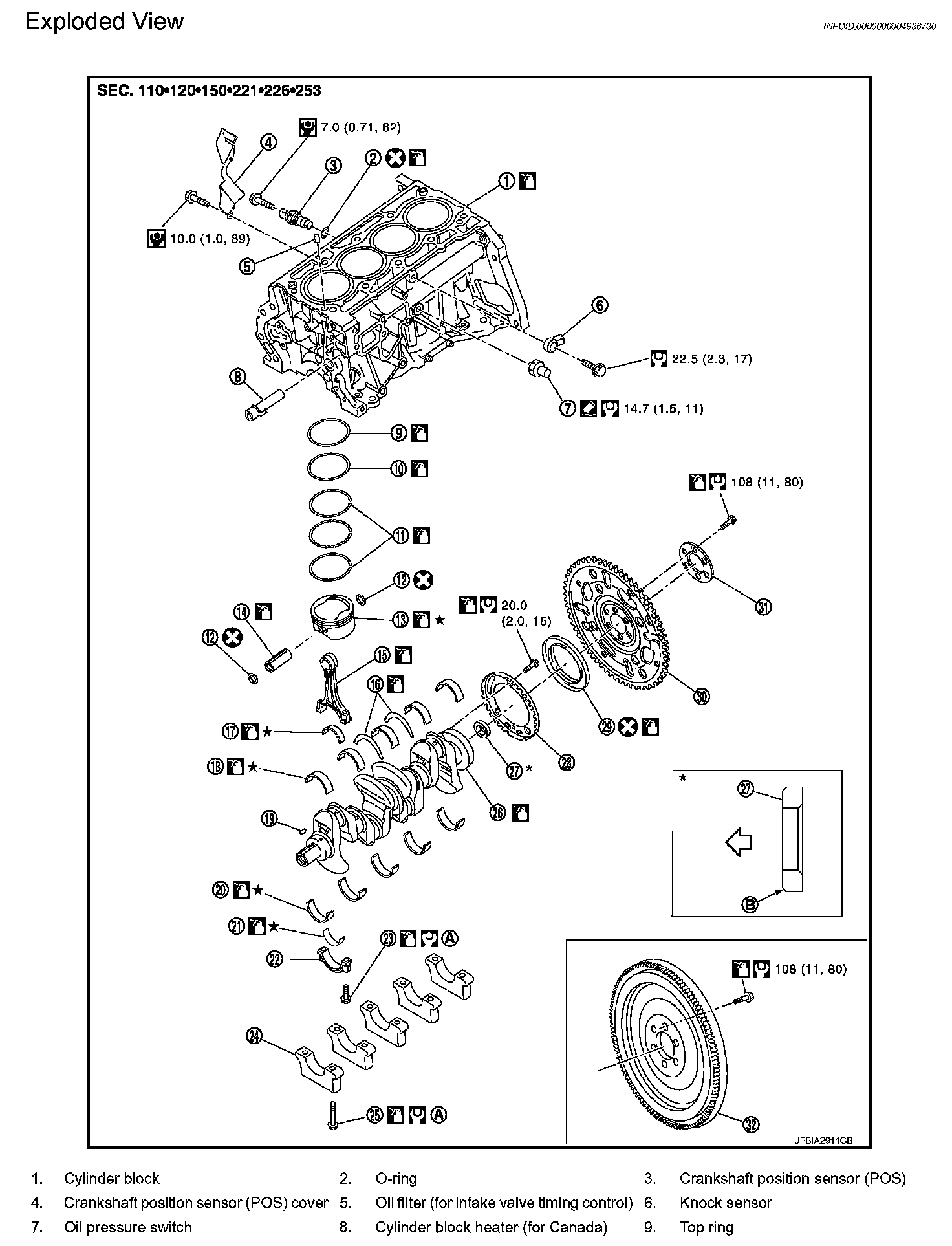

CYLINDER BLOCK









AVAILABLE PISTON






PISTON RING









PISTON PIN

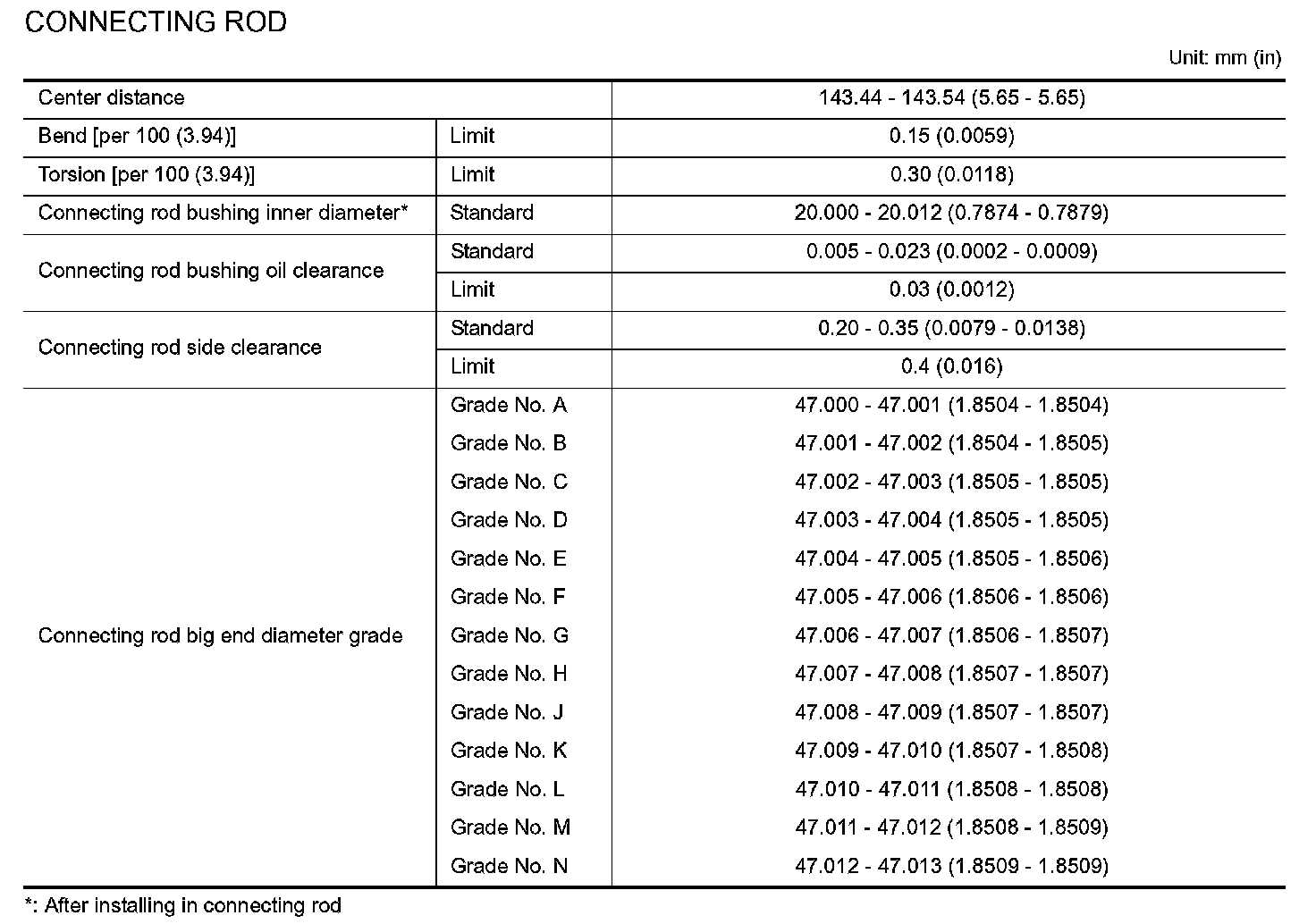

CONNECTING ROD

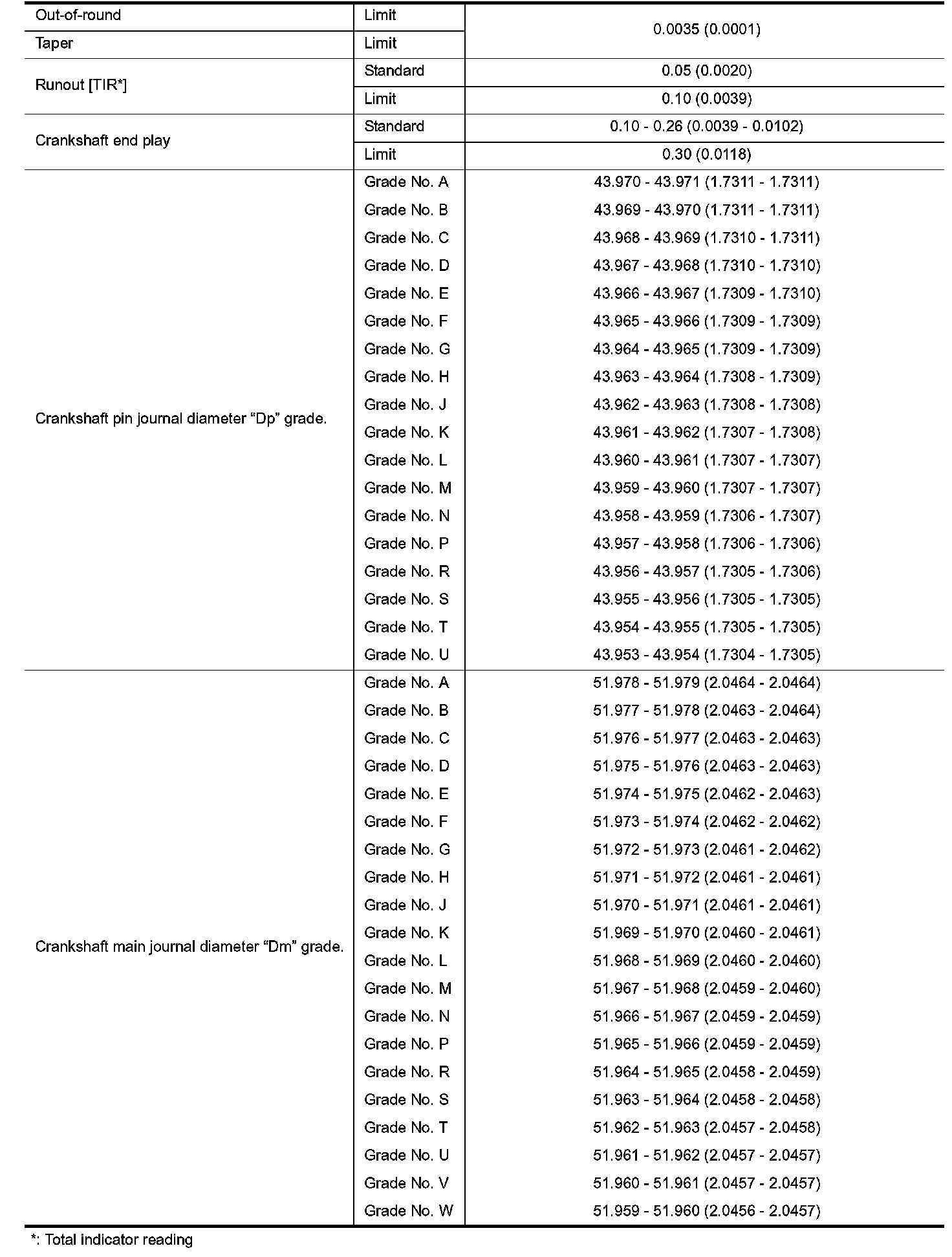

CRANKSHAFT









Connecting Rod Bearing

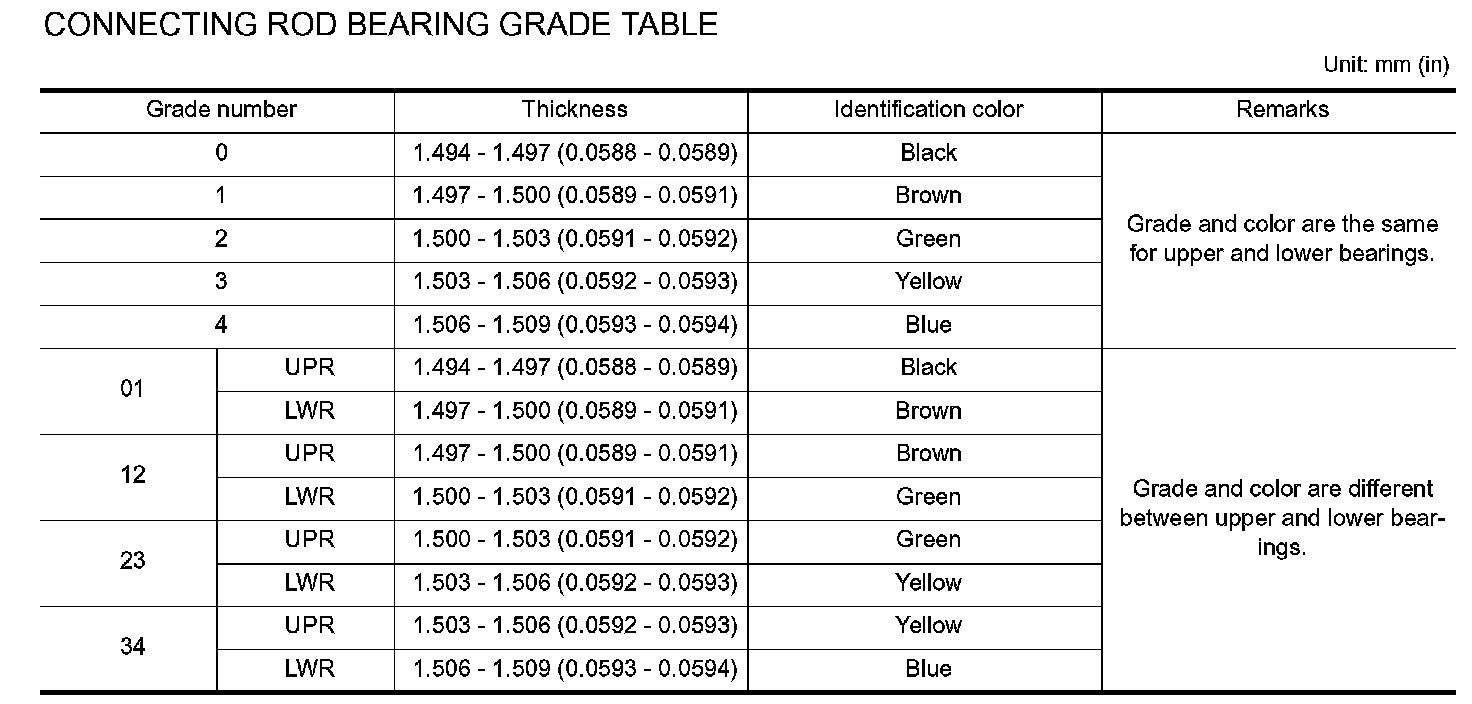

CONNECTING ROD BEARING GRADE TABLE







UNDERSIZE TABLE






CONNECTING ROD BEARING OIL CLEARANCE






Main Bearing

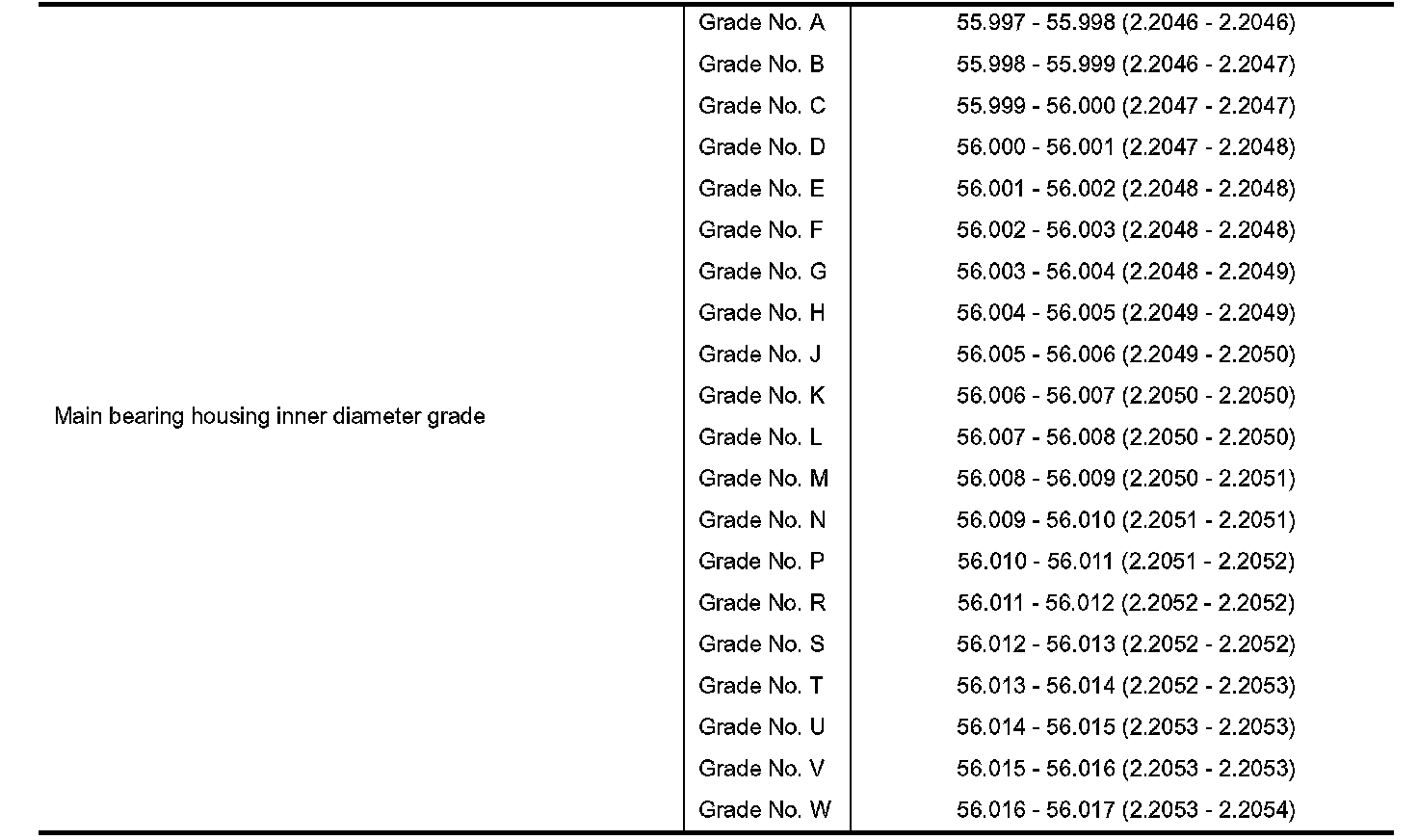

MAIN BEARING GRADE TABLE (ALL JOURNALS)









UNDERSIZE TABLE






MAIN BEARING OIL CLEARANCE





Main Bearing Cap












Tighten main bearing cap bolts in numerical order as shown in the figure with the following procedure:

Arrow Indicates Engine Front.

Crankshaft Pulley


Tighten crankshaft pulley bolt.

Torque 68.6 N.m (7.0 kg-m, 51 ft-lb)

Completely loosen.

Torque 0 N.m (0 kg-m, 0 ft-lb)

Tighten crankshaft pulley bolt.

Torque 29.4 N.m (3.0 kg-m, 22 ft-lb)

Turn another 60 degrees clockwise (angle tightening).
