System Specifications





SERVICE DATA AND SPECIFICATIONS (SDS)


CYLINDER HEAD






VALVE DIMENSIONS

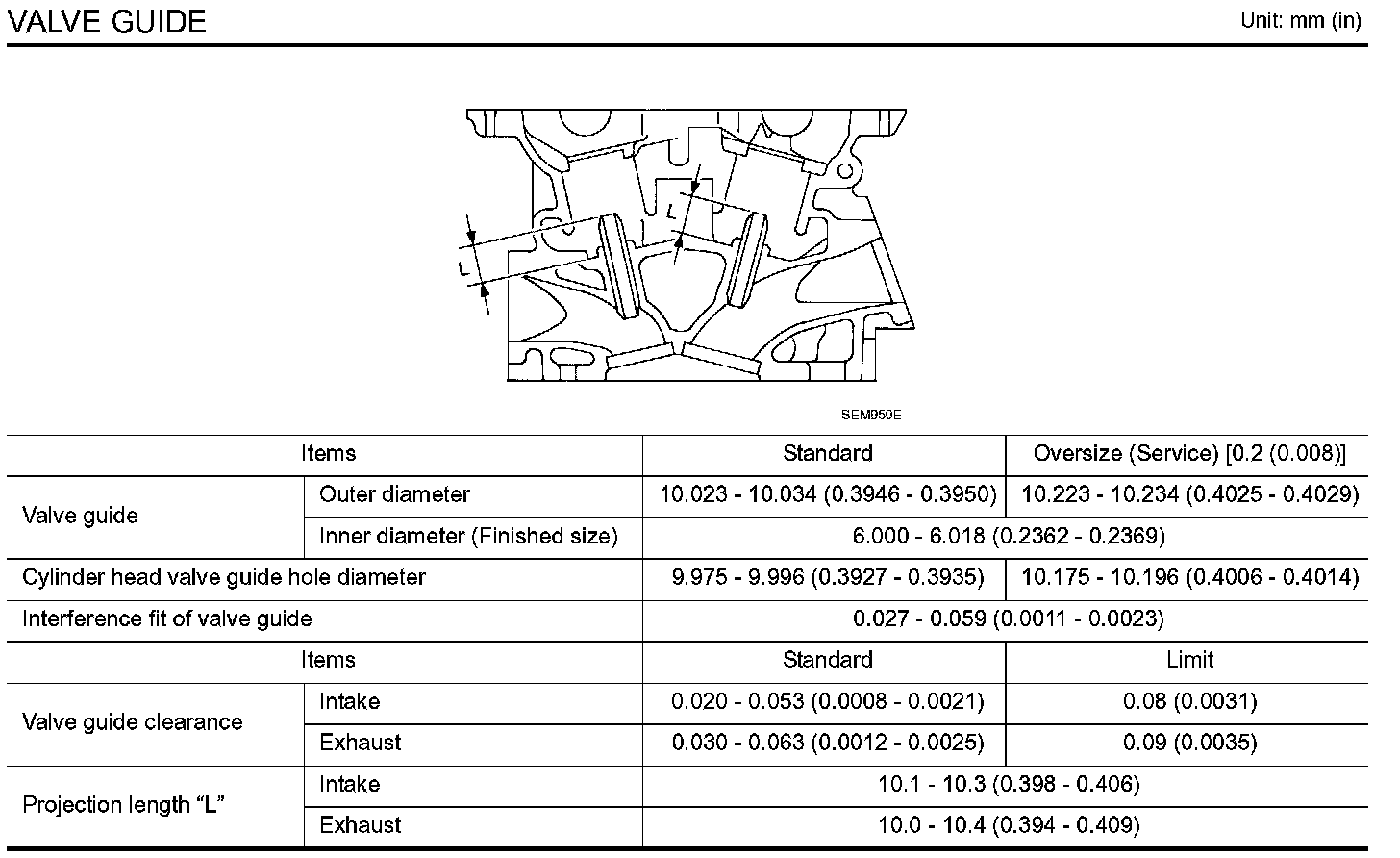

VALVE GUIDE

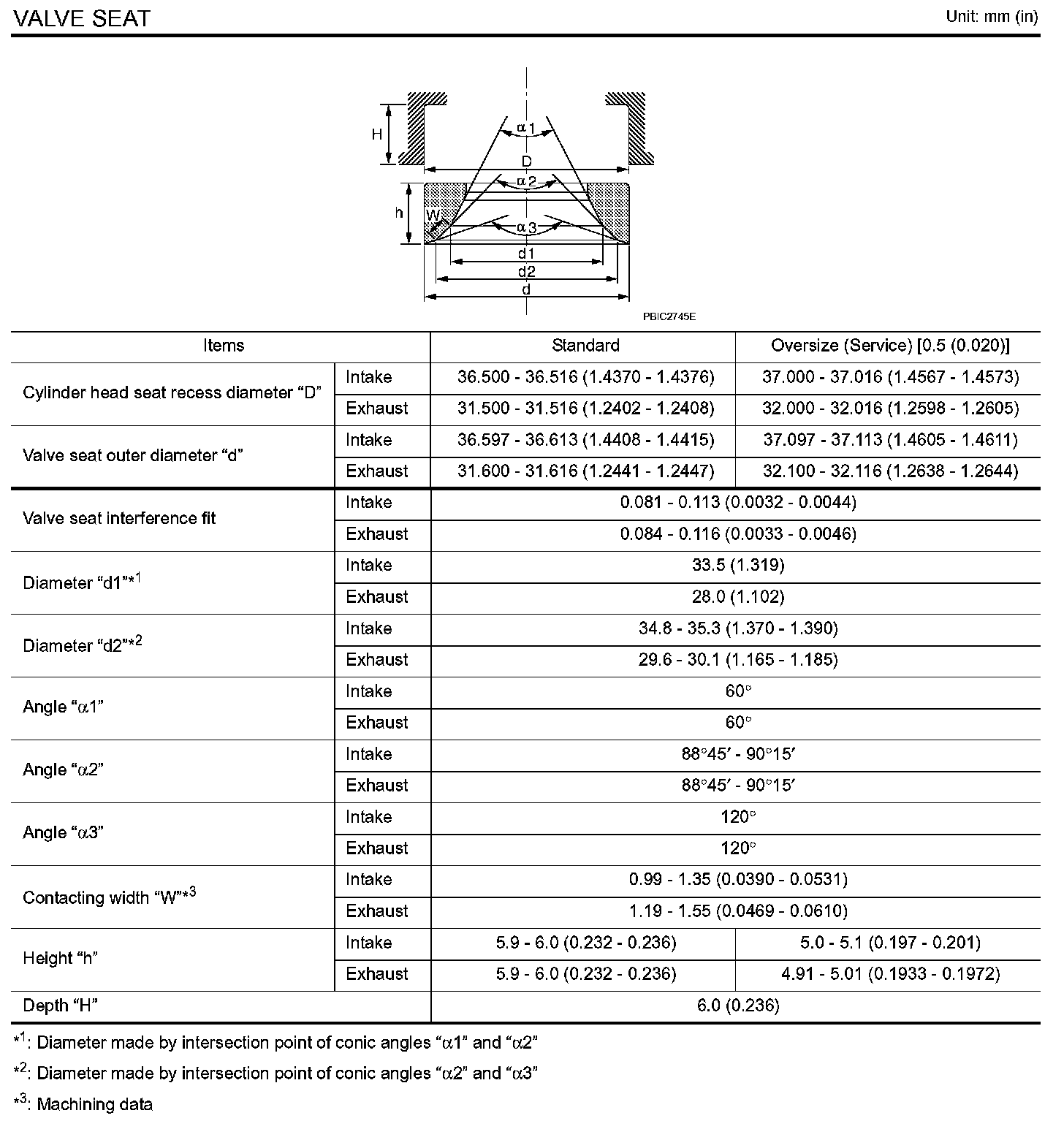

VALVE SEAT






VALVE SPRING

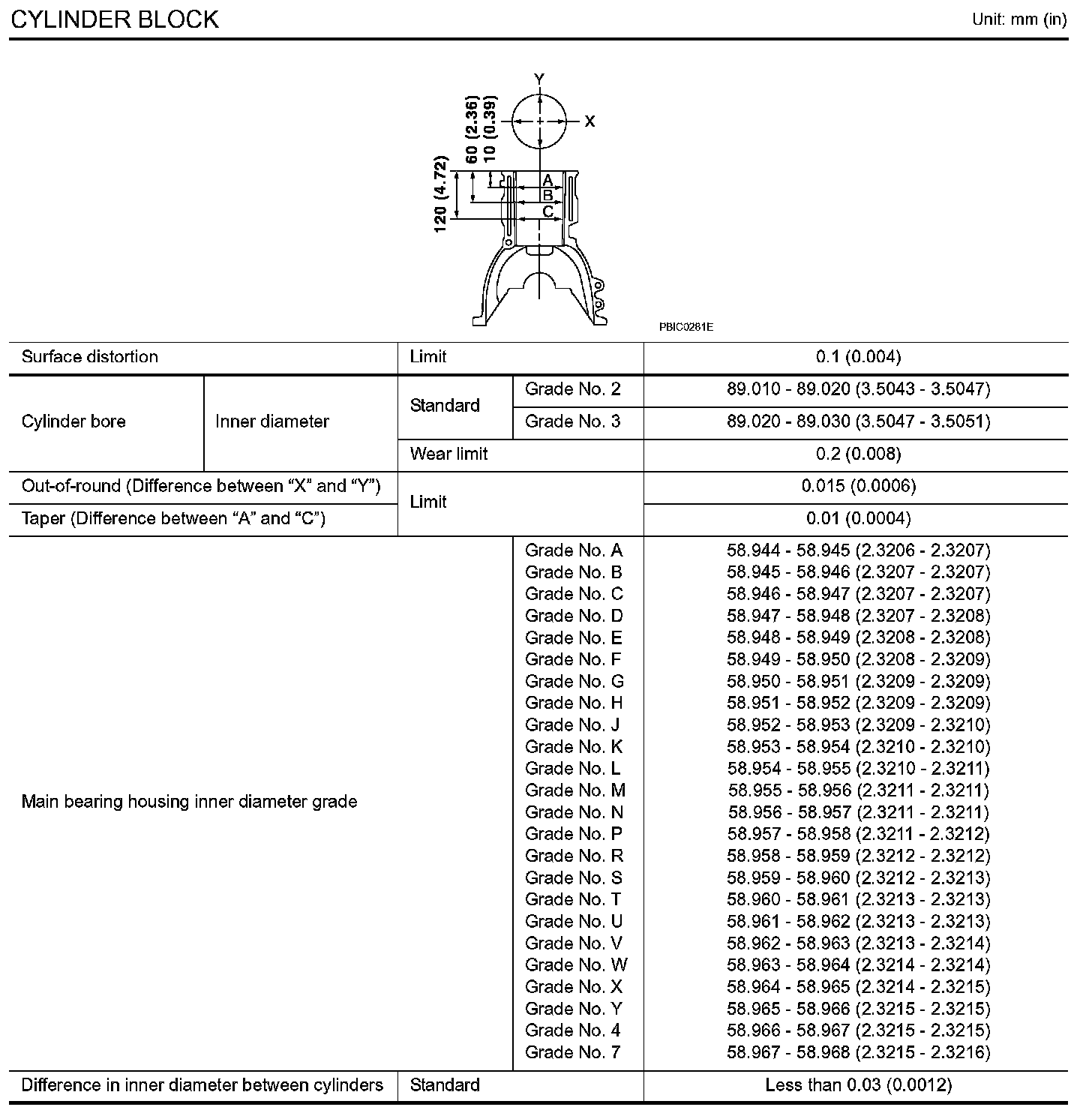

CYLINDER BLOCK






AVAILABLE PISTON






PISTON RING






PISTON PIN

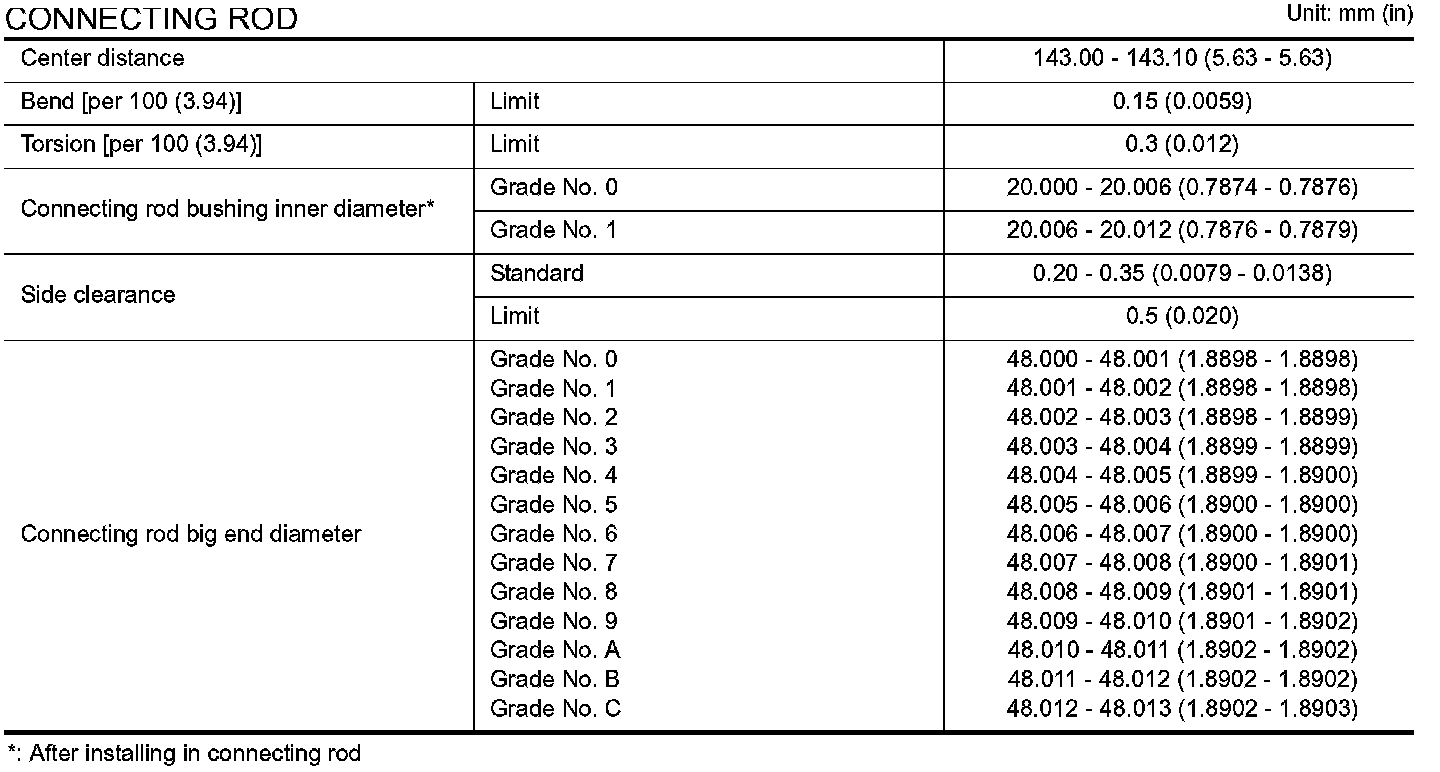

CONNECTING ROD

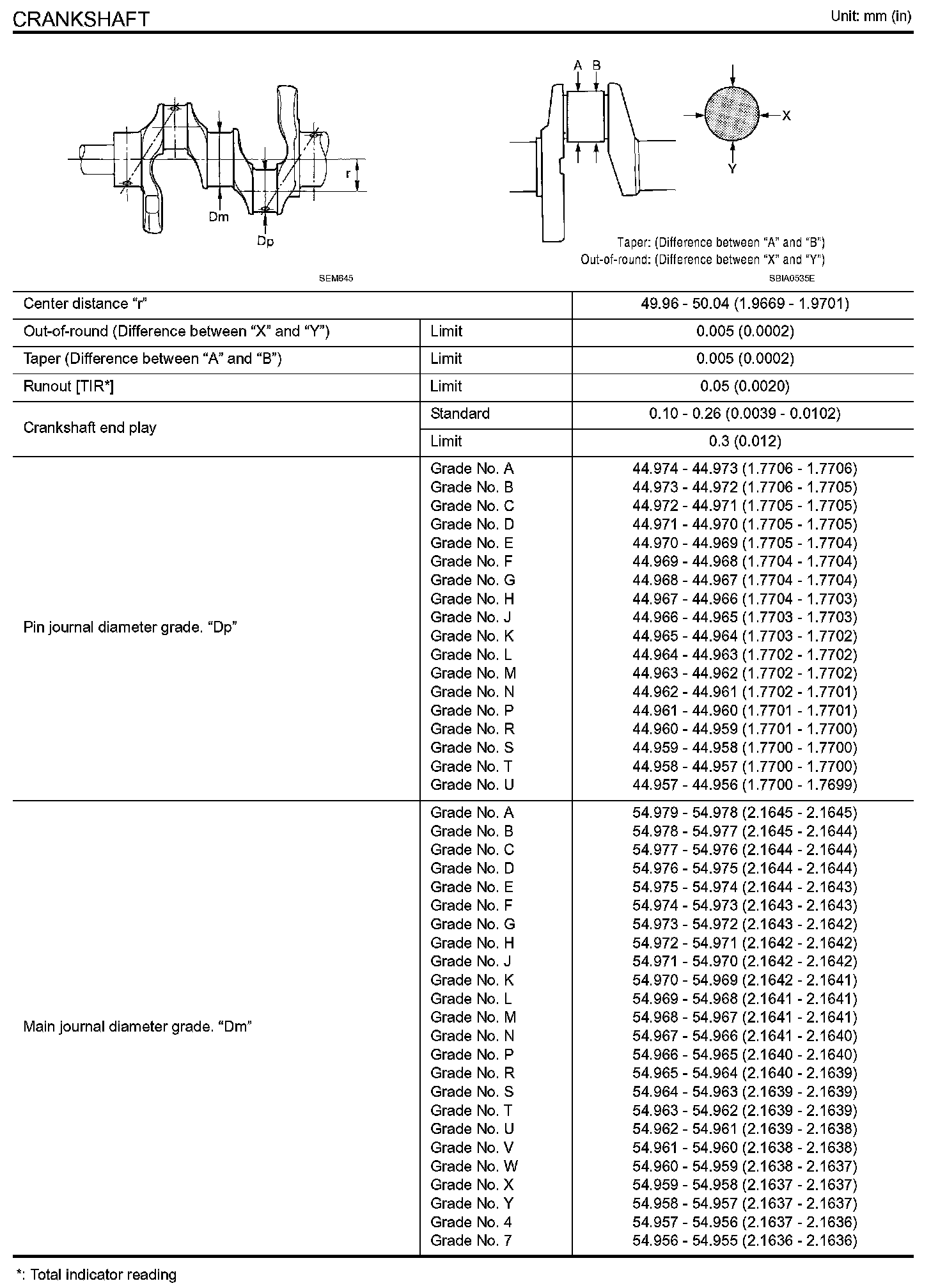

CRANKSHAFT

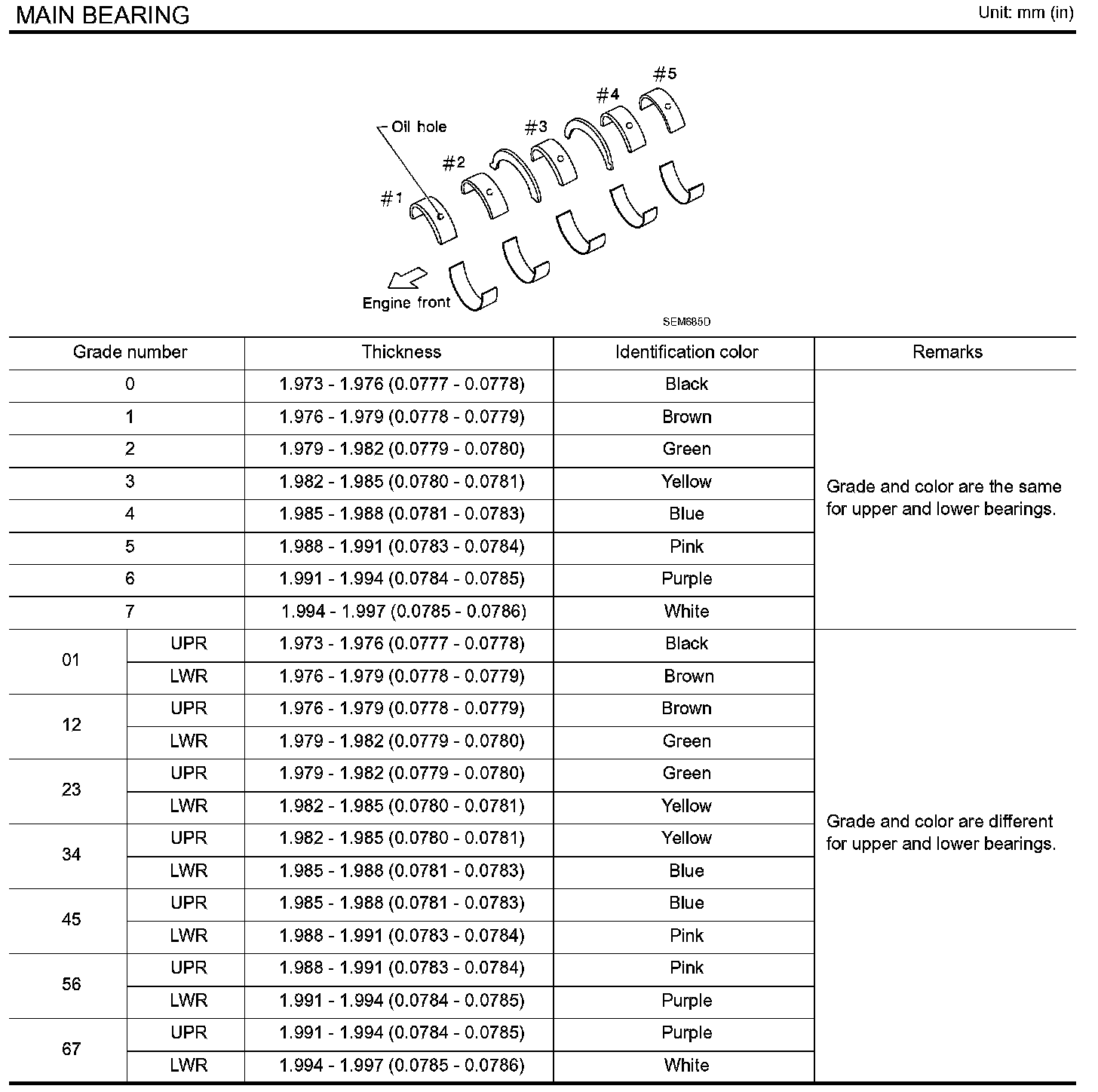

MAIN BEARING






UNDERSIZE






MAIN BEARING OIL CLEARANCE

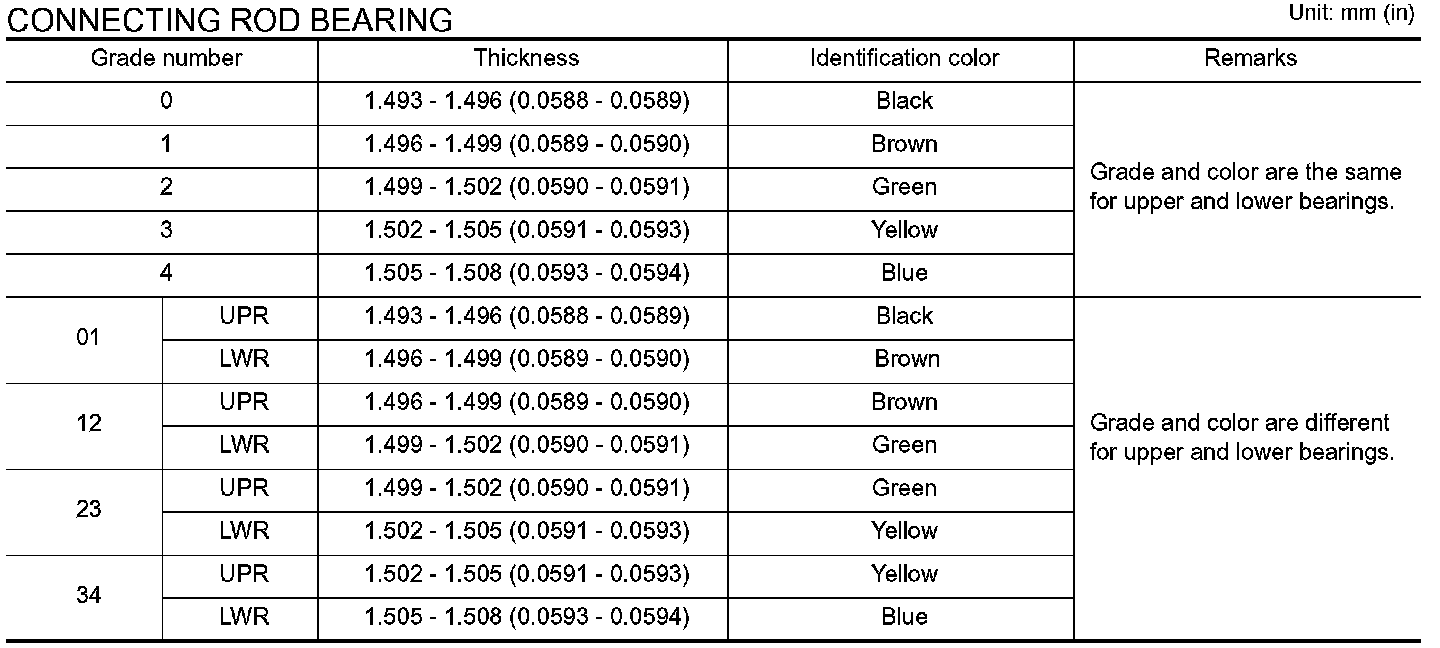

CONNECTING ROD BEARING






UNDERSIZE






CONNECTING ROD BEARING OIL CLEARANCE






Main Bearing Cap Torque

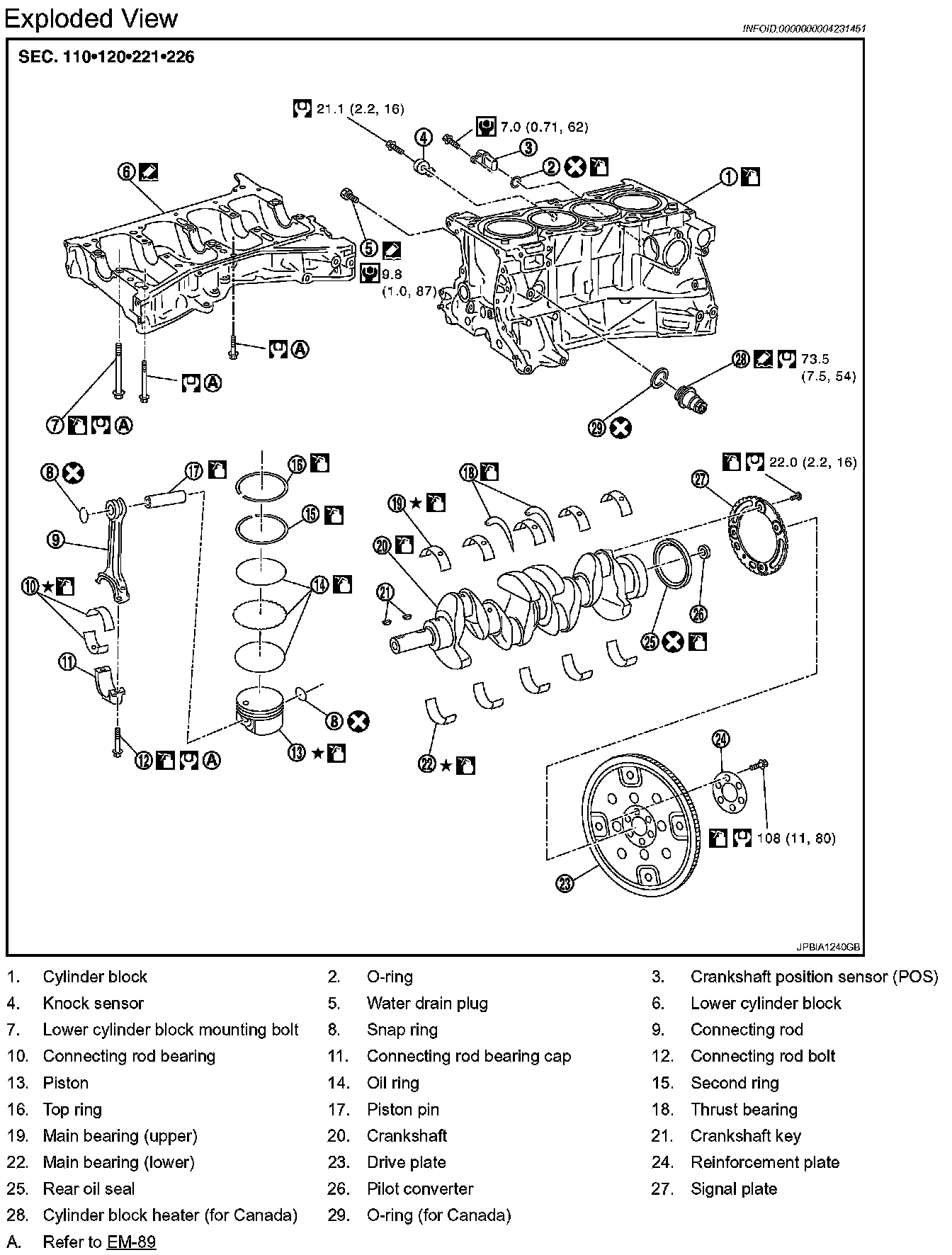

Refer to Component for symbols in the figure.



Crankshaft Pulley Bolt

Tighten crankshaft pulley bolt.

Torque 42.1 N.m (4.3 kg-m, 31 ft-lb)
