Starter Motor: Service and Repair

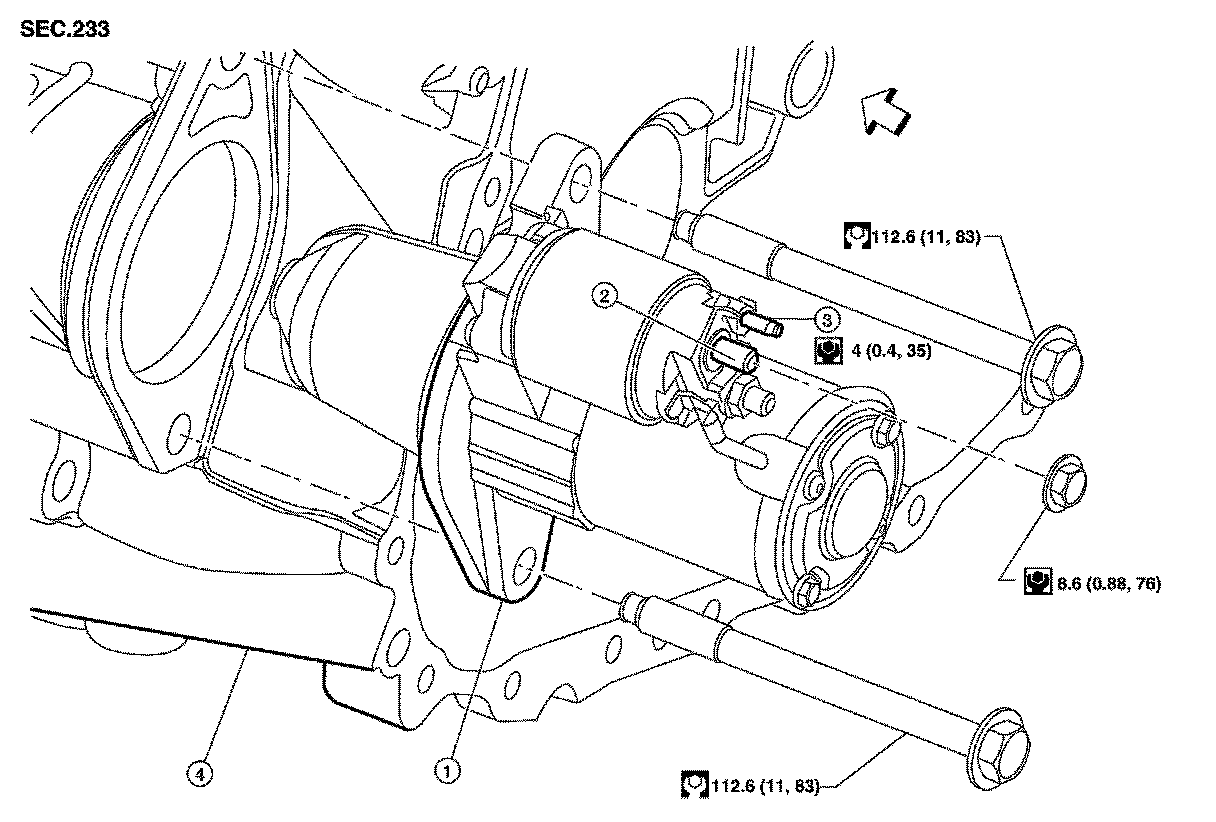

STARTING SYSTEMRemoval and Installation QR25DE REMOVAL 1.Disconnect the battery negative terminal.
Removal and Replacement.
2.Raise vehicle.
3.Disconnect "S" terminal connector.
4.Remove "B" terminal nut.
5.Remove
starter motor bolts.
6.Remove
starter motor.
INSTALLATION Installation is in the reverse order of removal.
CAUTION: Be sure to tighten "B" terminal nut carefully.
