Steering Gear: Service and Repair

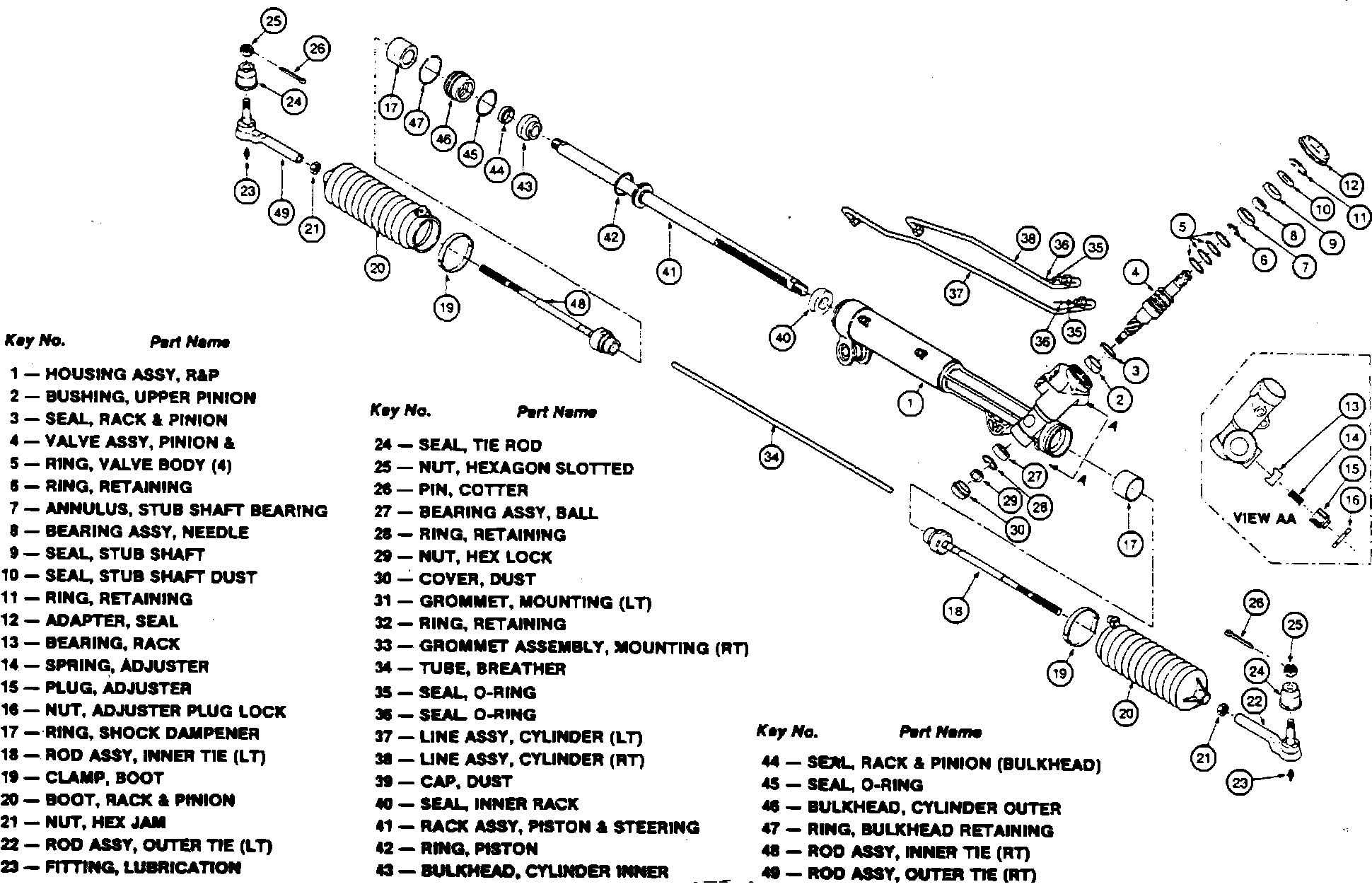

Fig. 1 Exploded view, power rack & pinion assembly. Celebrity, Century, Citation, Cutlass Ciera, Omega, Phoenix & 6000; 1982-85 Skylark; 1985-87 DeVille, Electra, Fleetwood & 98; 1986-87 Eldorado, LeSabre, Riviera, Seville, Toronado & 88:

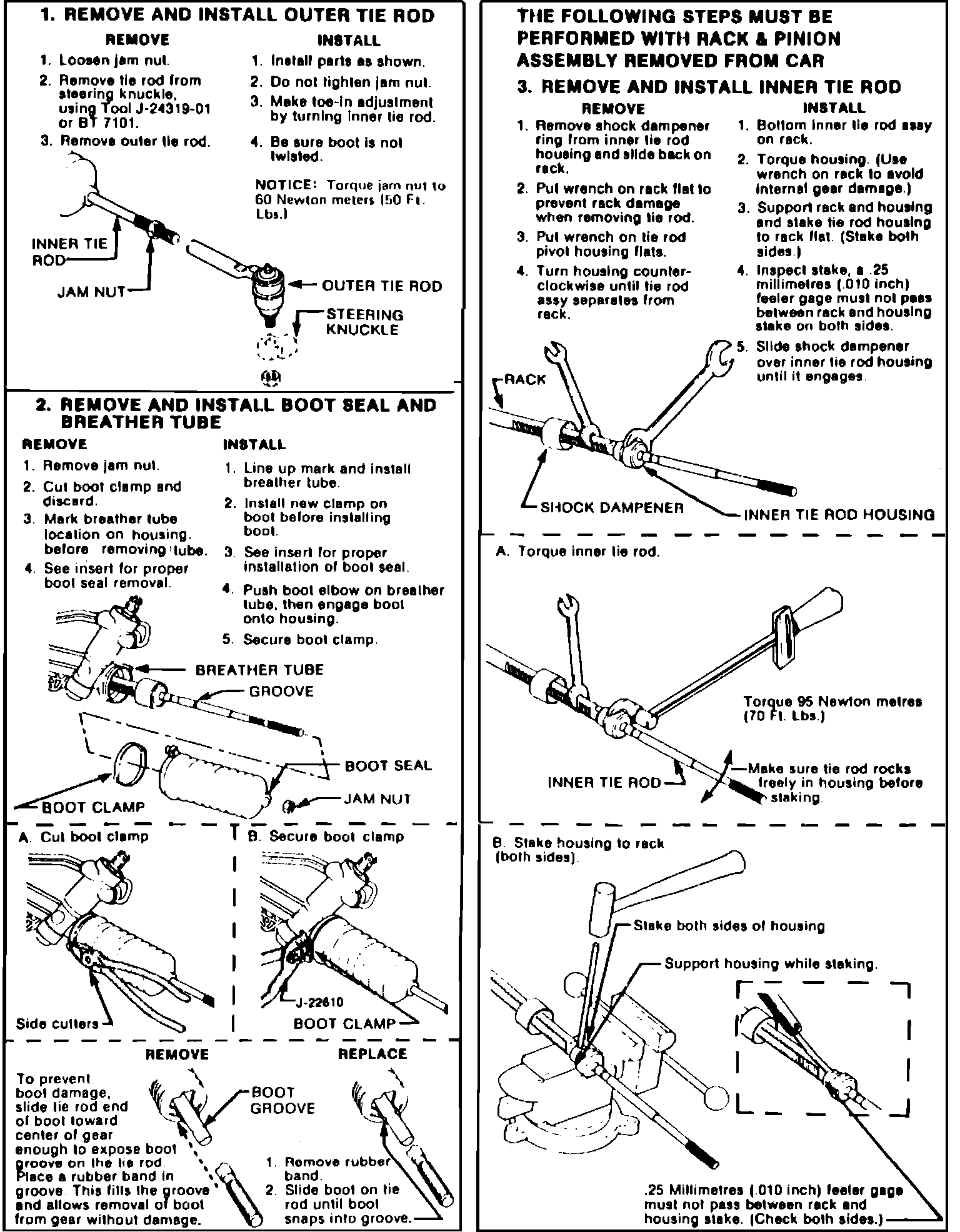

Fig. 2 Service procedures, power rack & pinion assembly. (Part 1 of 3):

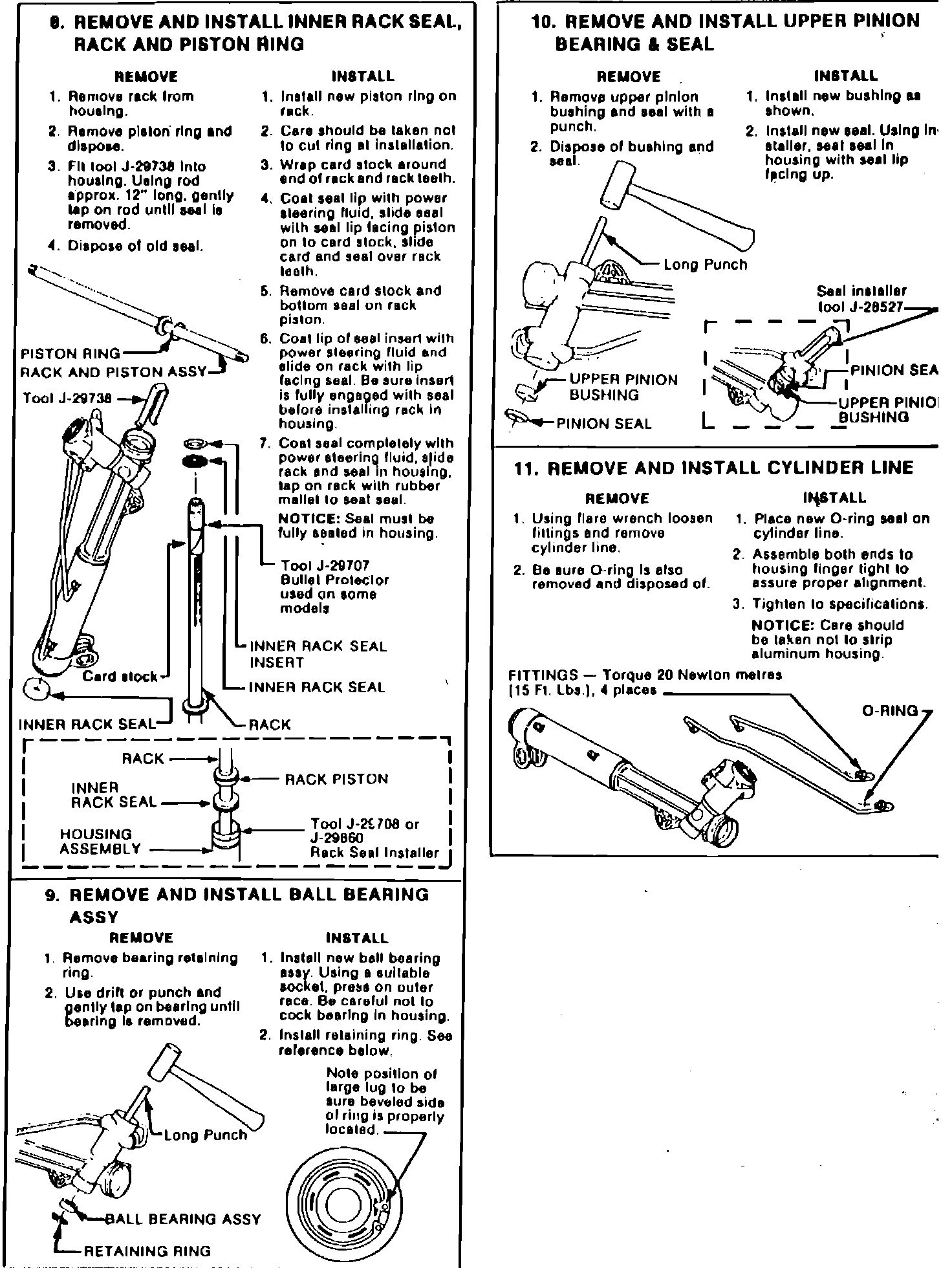

Fig. 2 Service procedures, power rack & pinion assembly. (Part 2 of 3):

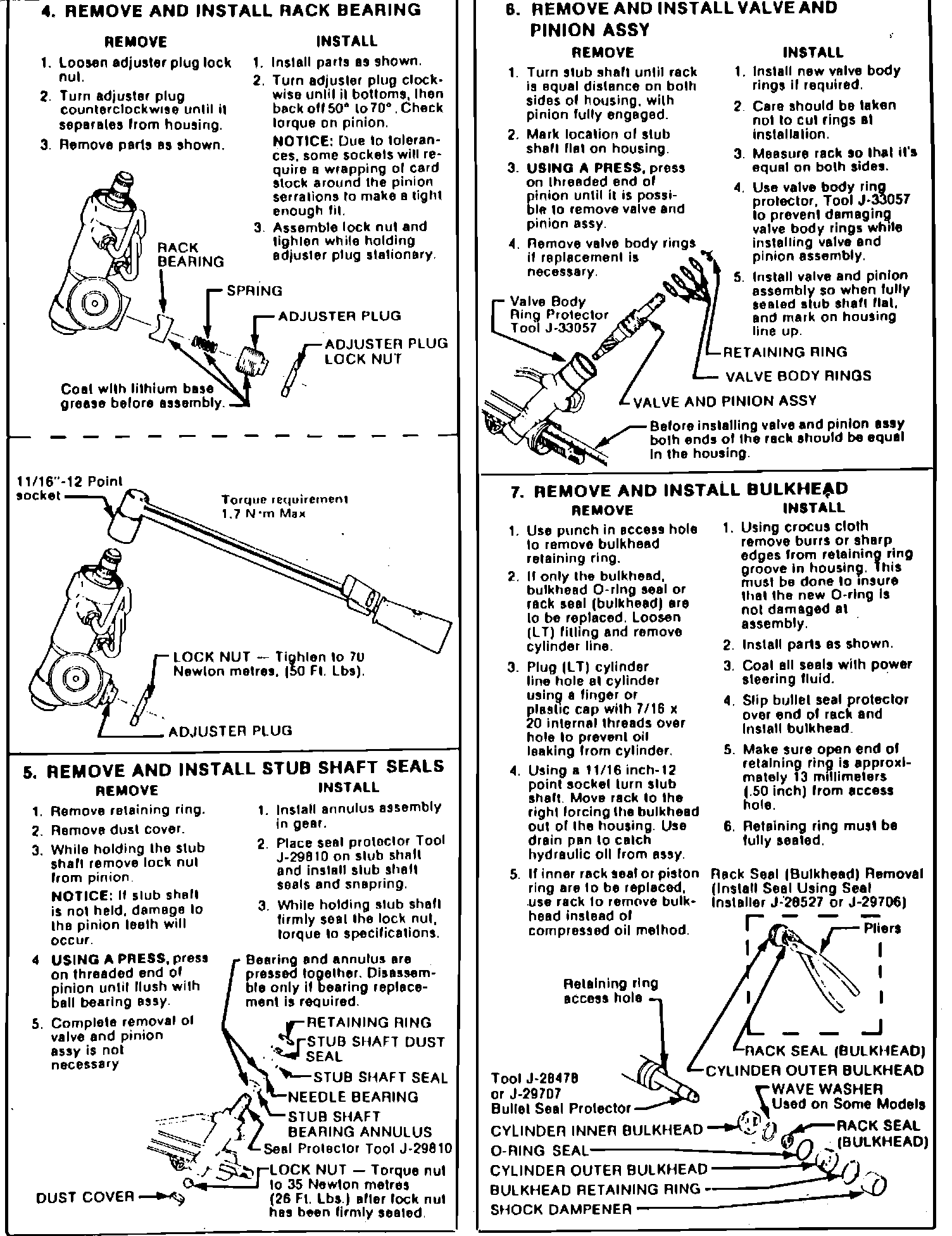

Fig. 2 Service procedures, power rack & pinion assembly. (Part 3 of 3):

CELEBRITY, CENTURY, CITATION, CUTLASS CIERA, OMEGA, PHOENIX & 6000; 1982-85 SKYLARK; 1986-87 ELDORADO, LESABRE, RIVIERA, SEVILLE, TORONADO & 88

For service procedures this power rack and pinion steering gear assembly, refer to Figs. 1 and 2.
