Tools - End Play Checking

Number 83-I-123 Section 7 Date 08/83

Subject: END PLAY CHECKING TOOLS - THM 700-R4 TRANSMISSION (ALL)

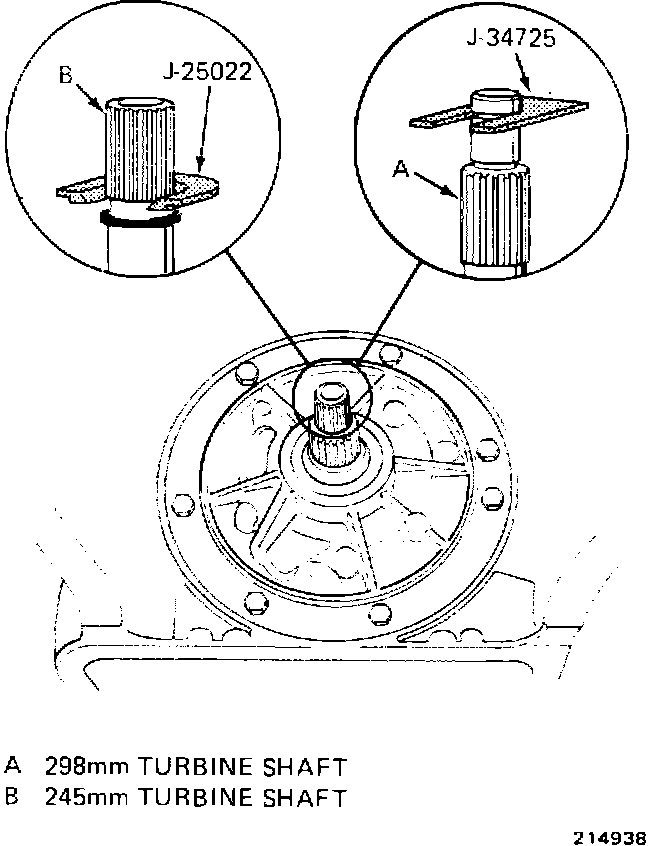

There are two end play checking fixture adapters available for checking end play on THM 700-R4 transmissions (see illustration)..

J-34725 is used for 298 mm style turbine shafts and J-25022 is used for 245 mm style turbine shafts..

Be certain to use the correct tool and follow the Service Manual procedure when checking end play.
