A/T - THM 700-R4 Service Manual Update
Number
84-7-37
Date 9/84
Subject:
1984 THM 700-R4 SERVICE MANUAL UPDATE - ALL THM 1984 700-R4

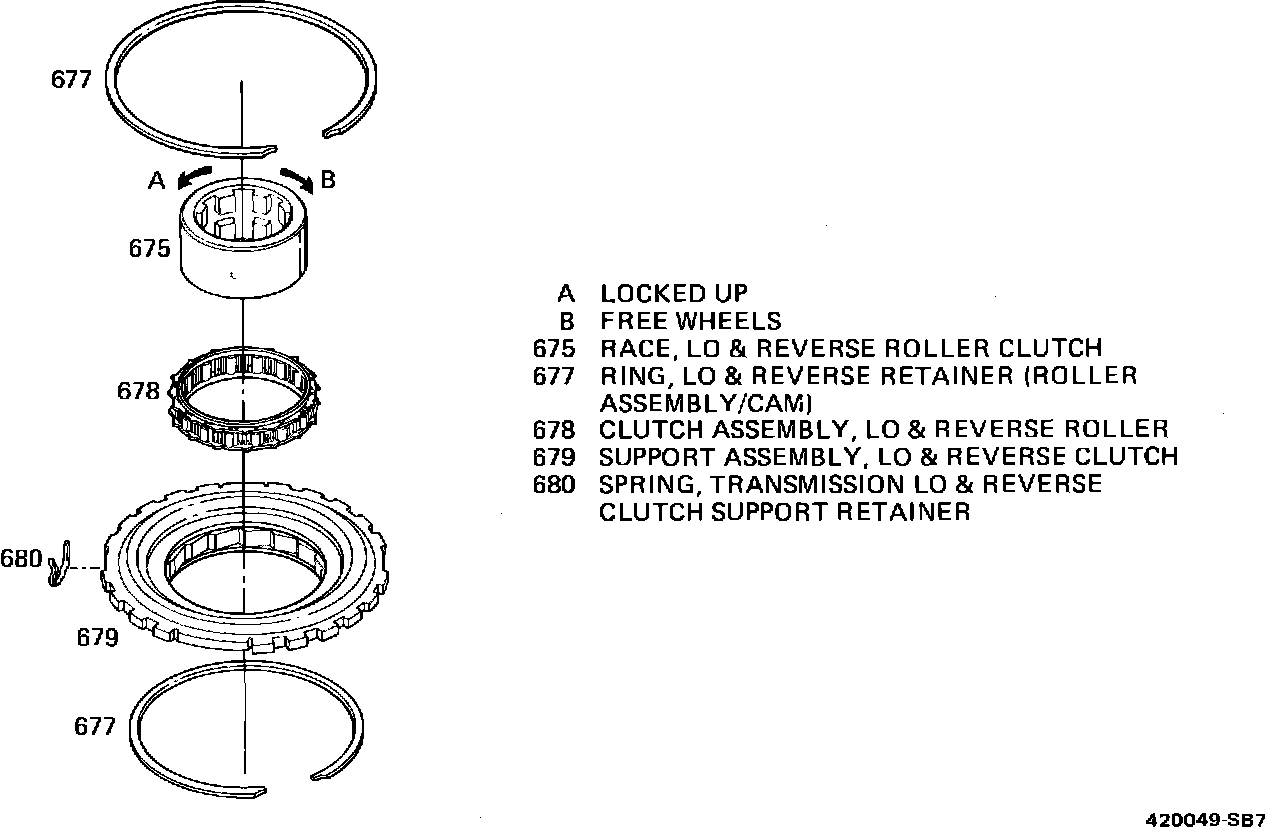

Please update your 1984 service manual by inserting the following artwork on page 700-R4-49, Figure 79..
This revision consists of a change in the rotation of "A" and "B" (see illustration).
