Clutch Switch: Service and Repair

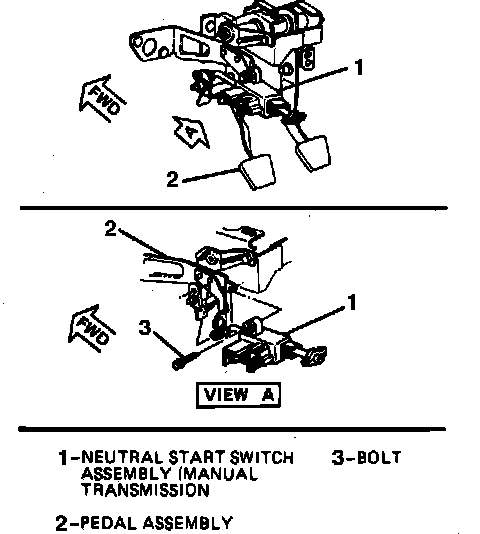

Fig. 10 Clutch start switch replacement:
1.
Disconnect battery ground cable.
2.
Disconnect electrical connector from switch.
3.
Remove switch attaching bolt. Rotate switch to disconnect shaft from clutch pedal hole, then remove switch from vehicle,
Fig. 10. 4.
Reverse procedure to install.
