Engine Controls - Revised System Performance Check
Number
85-SM-18
Date
5/85
Subject:
SYSTEM PERFORMANCE CHECK

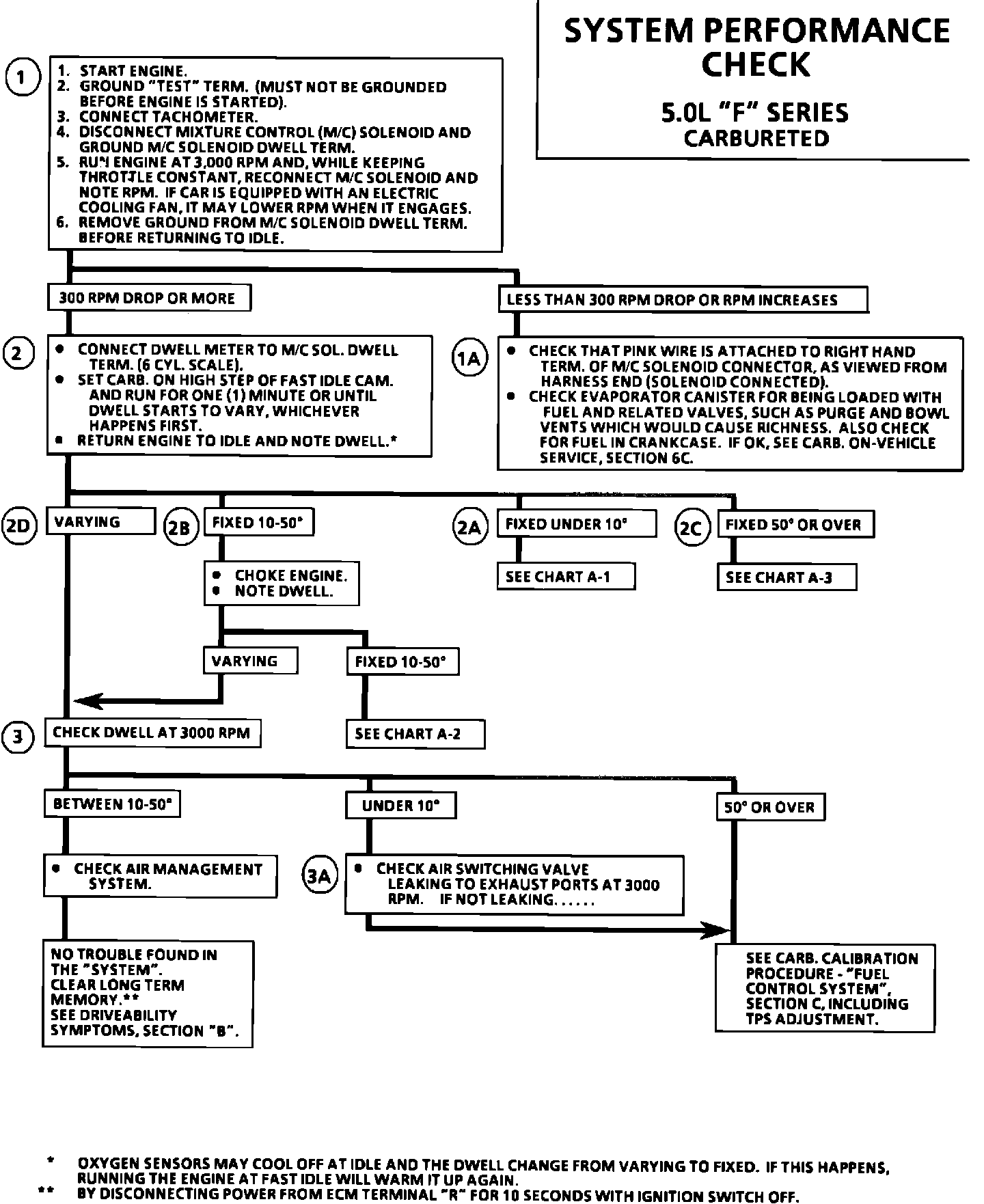

FIGURE 1 - SYSTEM PERFORMANCE CHECK-CHART:

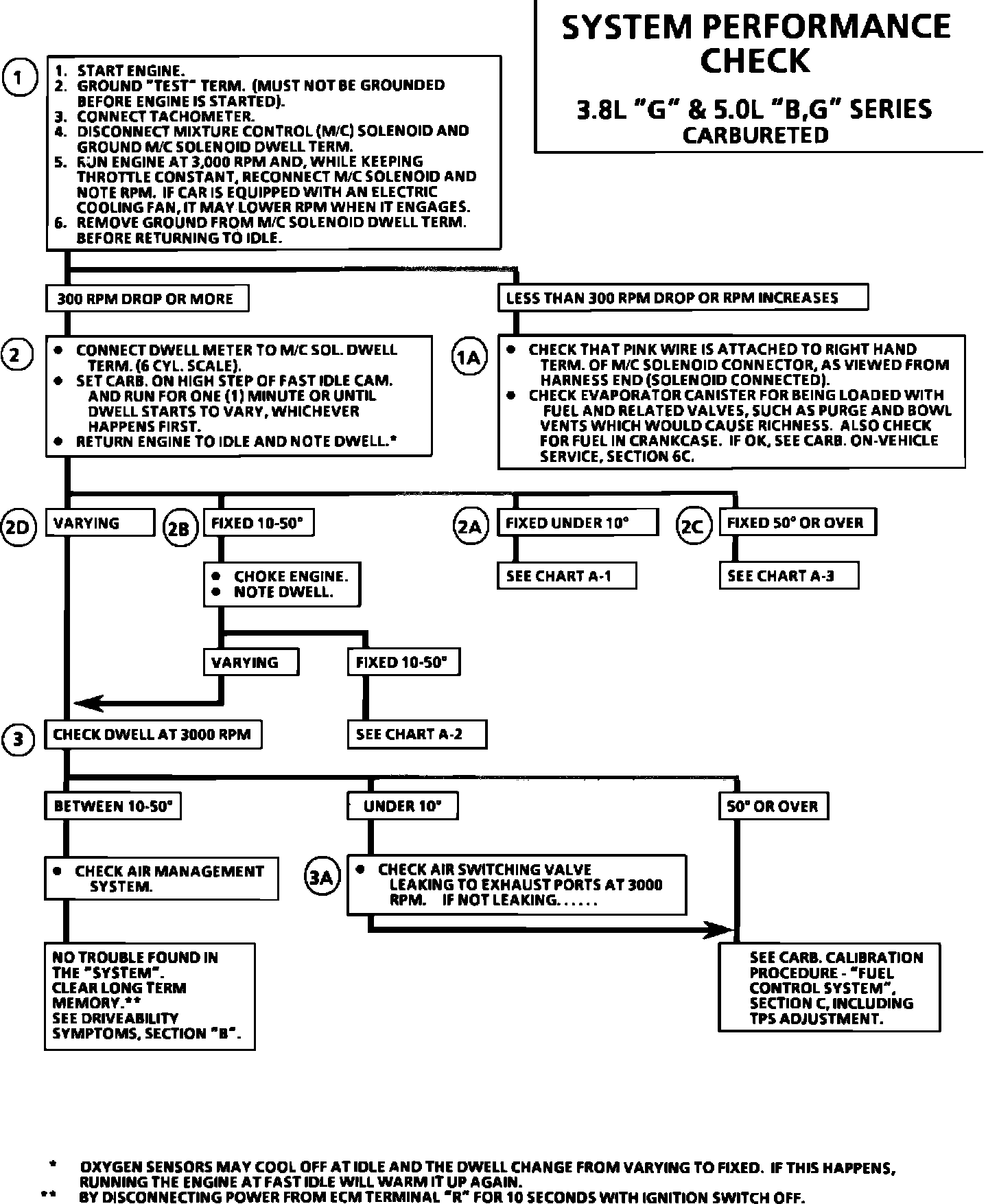

FIGURE 2 - SYSTEM PERFORMANCE CHECK-CHART:
Attached are the revised System Performance Check pages for Section 6E1 for your Firebird and Grand Prix, Bonneville, Parisienne Service Manuals.
