System Check - Compressor Controls

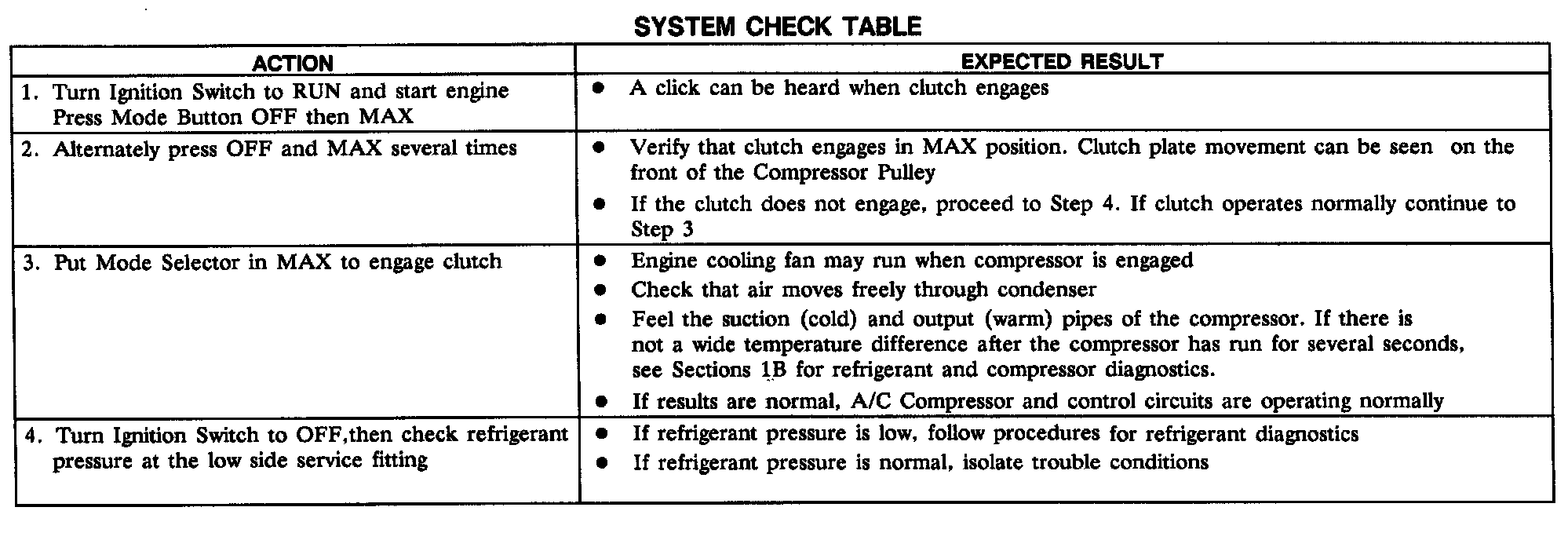

System Check Table:

System Check
1. Complete the A/C System Check as a guide to normal operation of the entire A/C System and for references to diagnostic tests.

2. Use the System Check Table as a guide to normal A/C Compressor operation.

3. Refer to System Diagnosis when a result is not normal.

System Diagnosis
1. Use the Isolation Test to choose the proper diagnostic test.

2. Tests follow the Isolation Test.
