Sedan

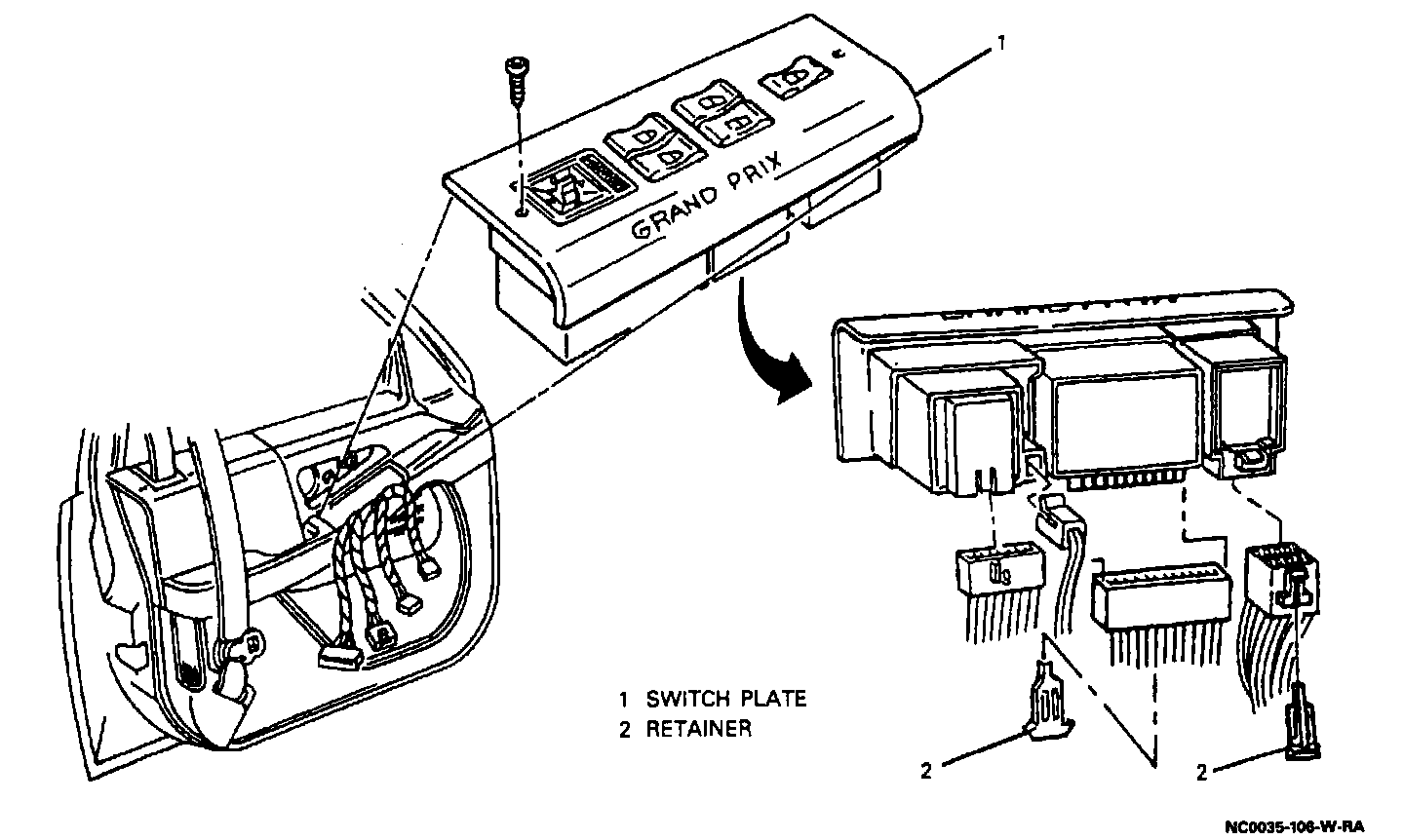

Power Window Switch Assembly:

NOTICE: When removing a door trim panel or switch plate, the ignition switch must be in the OFF position. This will eliminate the possibility of shorting out the switch if a screwdriver, awl or metal object is used to remove the switch from the harness.

Remove or Disconnect

1. Screws from switch plate assembly.
2. Switch plate assembly from trim panel.
3. Retainer(s) from connector{s).
4. Connector(s) from switch plate assembly.

Install or Connect

1. Connector(s) to switch plate assembly.
2. Retainer(s) to connector(s).
3. Switch plate assembly to trim panel cutout. Press firmly to secure.
4. Screws to switch plate assembly.
