Engine Controls - Manual Update Revised Chart C-3
Group Ref.: Engine Fuel & EmissionBulletin No.: 316519
Date: May, 1994
SERVICE MANUAL UPDATE
SUBJECT:

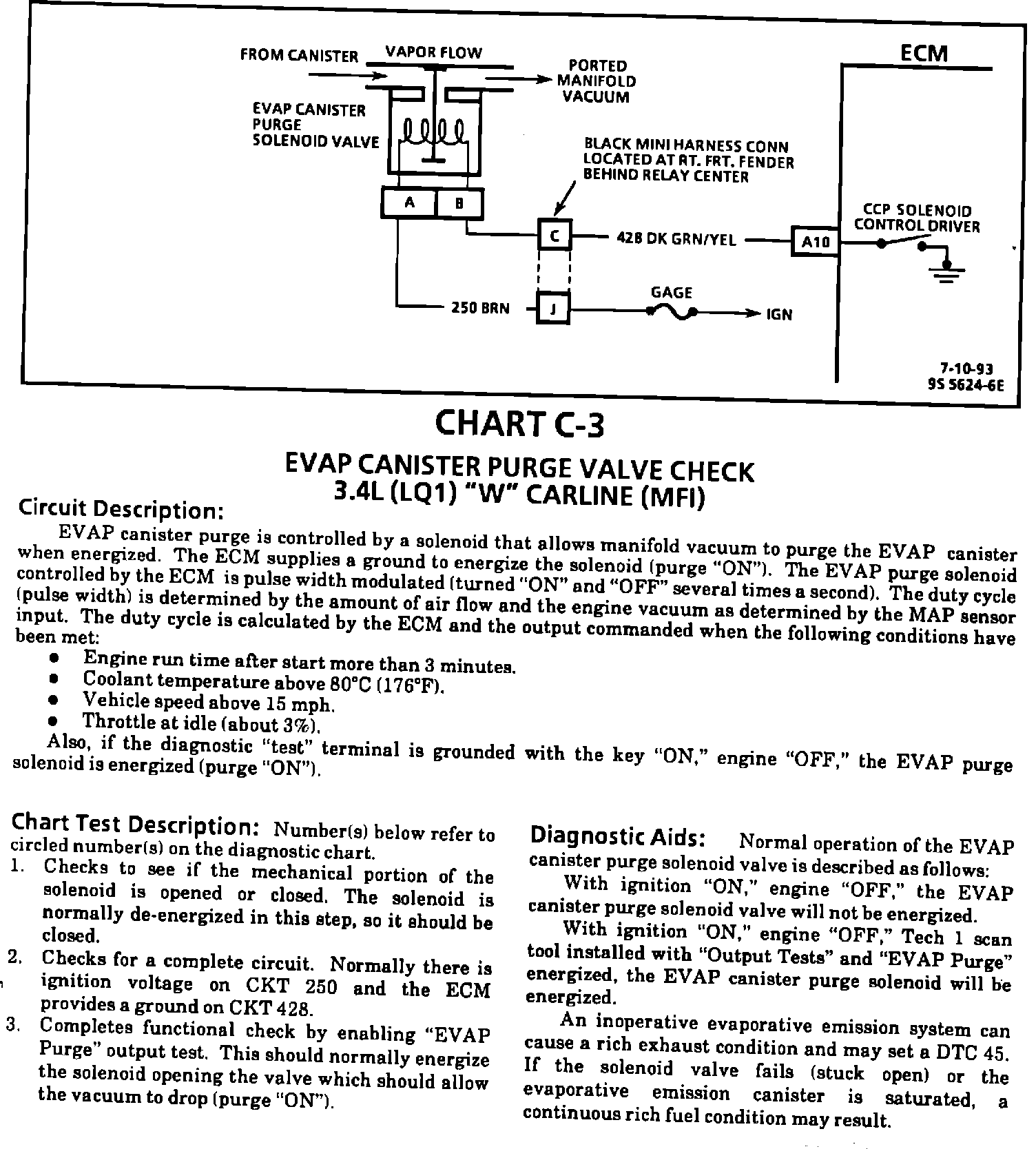

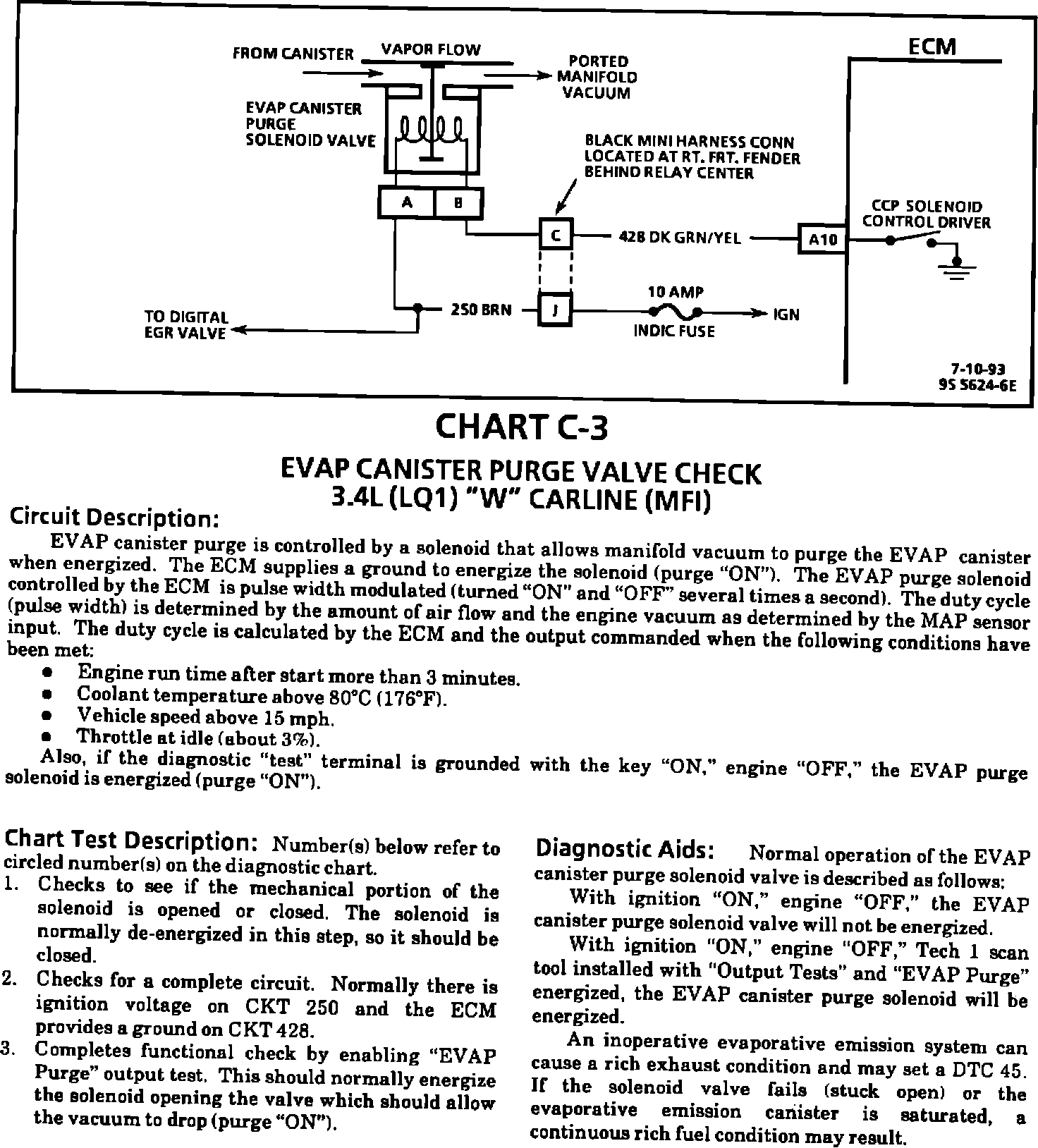

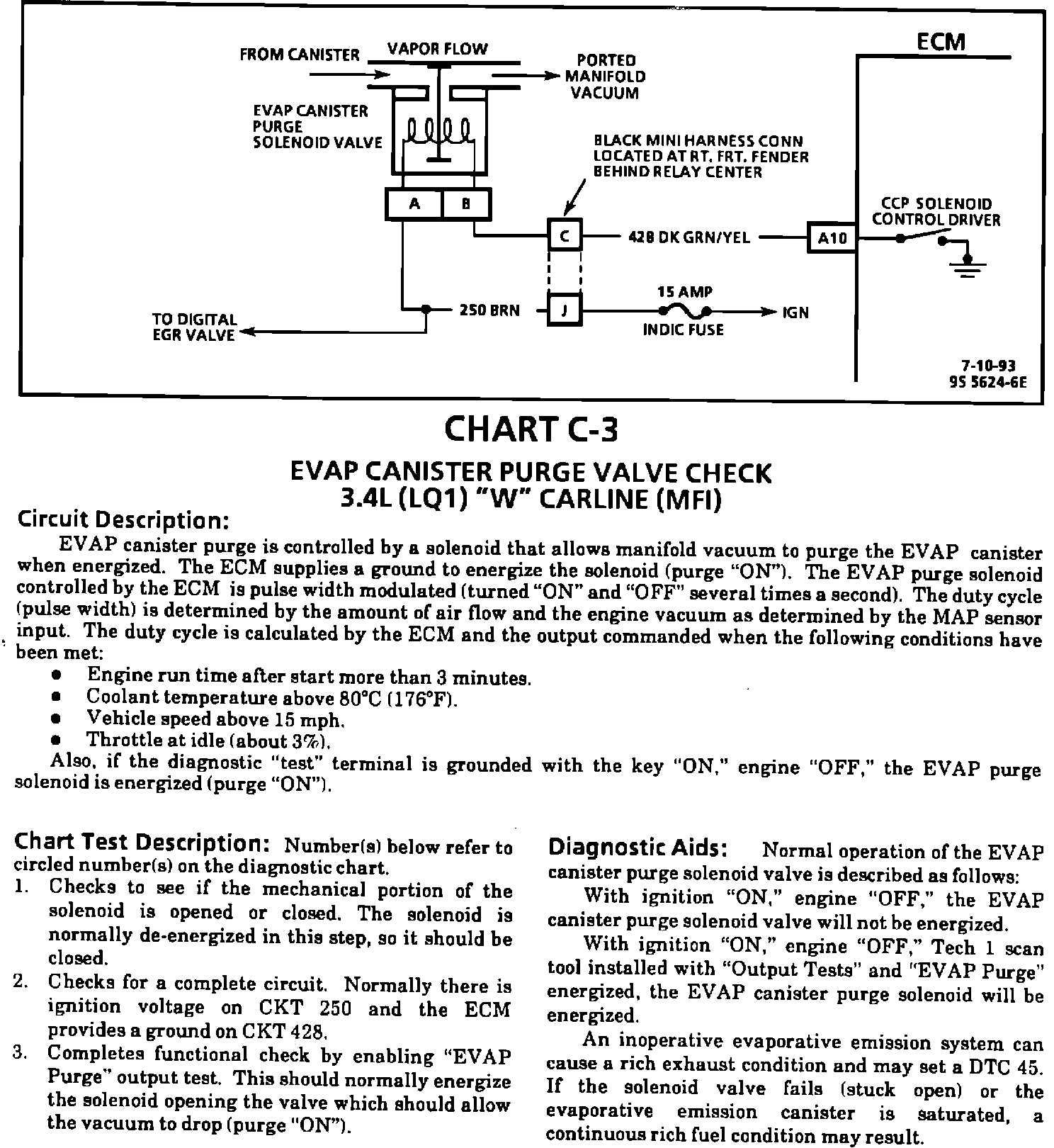

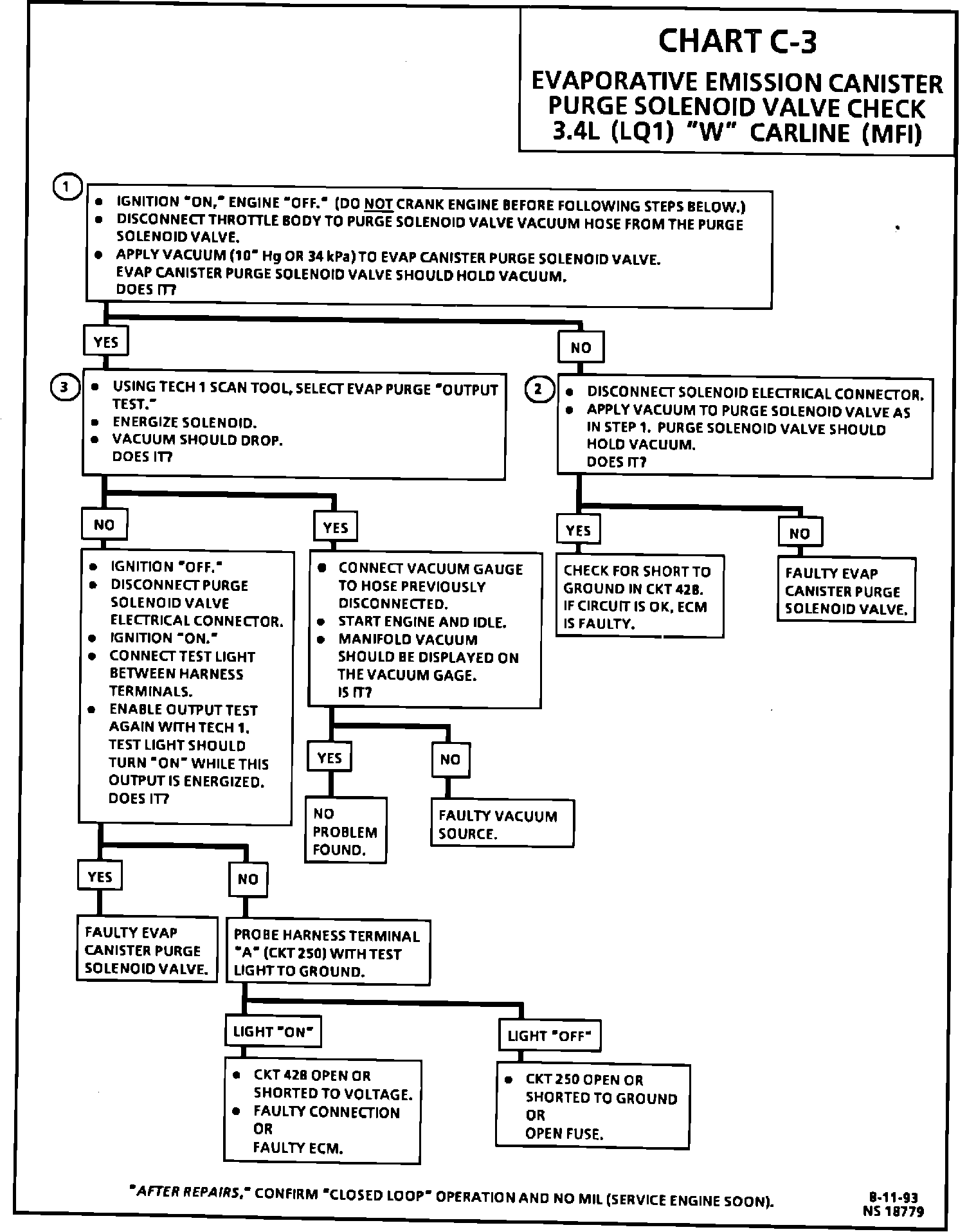

SECTION 6E3 - DRIVEABILITY AND EMISSIONS - C-3 EVAP CANISTER PURGE VALVE CHECK REVISION
MODELS:
1991-93 CHEVROLET LUMINA
1991-93 OLDSMOBILE CUTLASS SUPREME
1991-93 PONTIAC GRAND PRIX WITH 3.4L V6 ENGINE (VIN X - RPO LQ1)
This bulletin contains revisions to Chart C3. Add a reference to this bulletin on the following pages of your copy of the Service Manual.
1991 ................................................................ 6E3-C3-4
1991 ................................................................ 6E3-C3-5
1992 ................................................................ 6E3-C3-4
1992 ................................................................ 6E3-C3-5
1993 ................................................................ 6E3-C3-4
1993 ................................................................ 6E3-C3-5
