Power Window Switch: Service and Repair

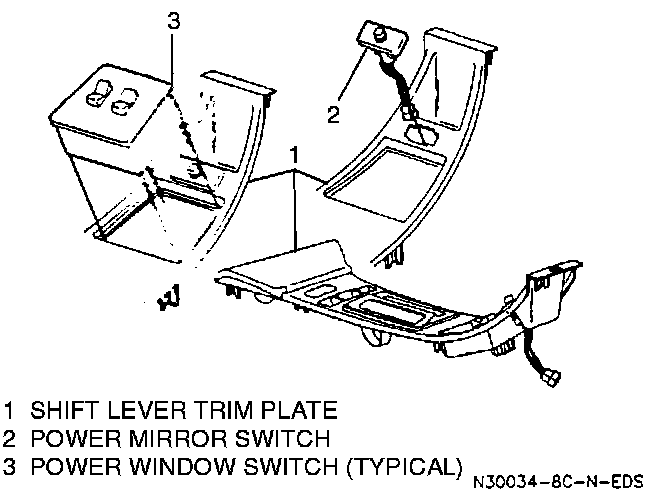

Power Window & Mirror Switches:
Remove or Disconnect 1.
Negative battery cable.
2.
Console trim plate.
Service and Repair 3.
Electrical connectors.
4.
Switches from trim plate.
Install or Connect 1.
Switched to trim plate.
2.
Electrical connectors.
3.
Console trim plate.
4.
Negative battery cable.
