Control Assembly: Service and Repair

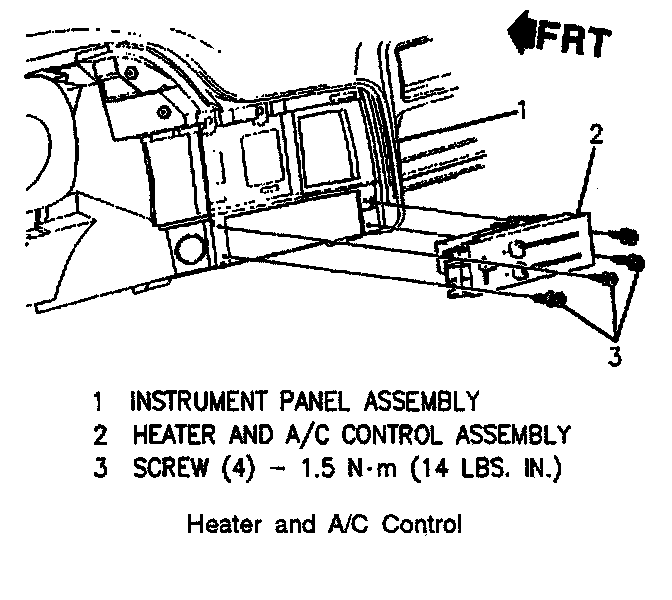

HEATER AND A/C CONTROL ASSEMBLY






REMOVE OR DISCONNECT
1. Negative battery cable.
2. Steering column filler.
3. Right trim plate. Instrument Panel Trim Plate - Right
4. Four screws from Instrument Panel (I/P).
5. Electrical connector and vacuum harness.

INSTALL OR CONNECT
1. Electrical connector and vacuum harness.
2. 4 screws.

TIGHTEN
- Screws to 1.5 Nm (14 lbs. in.).

3. Trim plate.
4. Steering column filler.
5. Negative battery cable.
