Control Assembly, HVAC

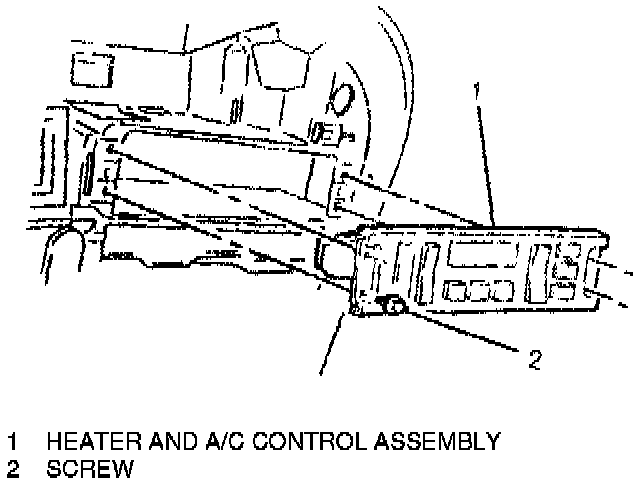

Heater And A/C Control:
REMOVE OR DISCONNECT 1.
Instrument Panel
(I/P) trim plate, (snap out).
2.
Heater and A/C control screws.
-
Pull assembly rearward.
3.
Electrical connector.
4.
Heater and A/C control.
INSTALL OR CONNECT 1.
Electrical connector.
2.
Heater and A/C control to I/P.
3.
Heater and A/C control screws.
-
Tighten screws to
1.9 Nm (17 lb. in.). 4.
I/P trim plate,
