Service Procedure

1. Raise vehicle and disconnect negative battery cable.

NOTICE:
Prior to disconnecting battery cable, preset radio stations should; be reviewed and recorded, then reset for customer prior to vehicle delivery.

2. Remove left side sound insulator (from below instrument panel).

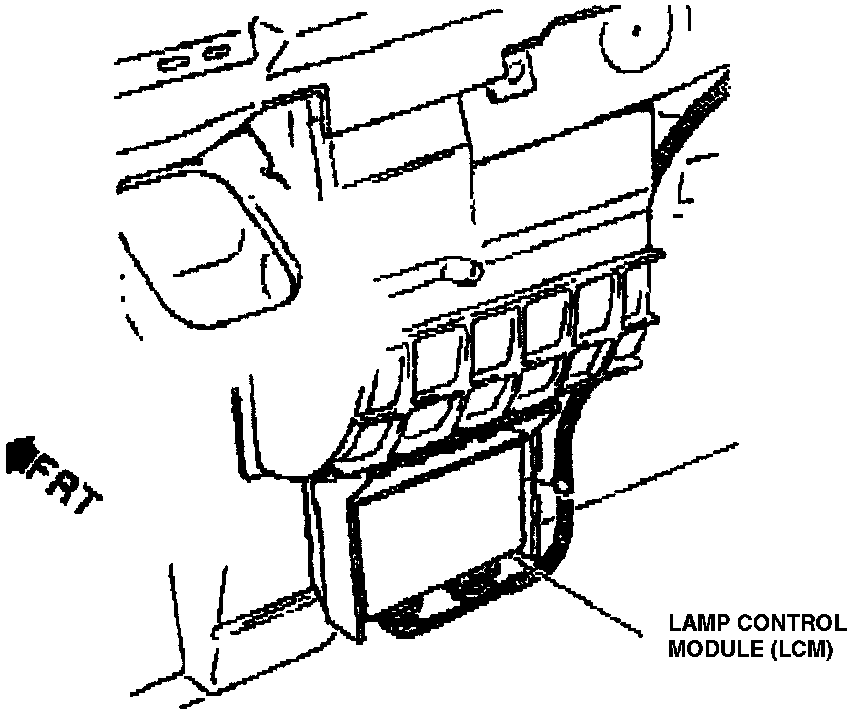

3. Reposition carpet around lamp control module (see illustration for location of module).

4. Remove lamp control module from mounting bracket.

5. Disconnect connectors (2) from lamp control module.

6. Install connectors to new lamp control module and install module in mounting brackets.

7. Reinstall carpet and right side sound insulator panel.

8. Reconnect battery cable, ensure radio stations are returned to preset positions and reset clock.

9. Check for proper operation of exterior lamps.

10. Install Campaign Identification Label.
