1ST/2ND Blocker Rings

ASSEMBLE
1. Three piece 1st gear blocker ring assembly, using a twisting motion to fully seat.
2. Three piece 1st gear blocker ring assembly, with needle bearing and bearing sleeve, to 1st gear.
3. Three piece 2nd gear blocker ring assembly, using a twisting motion to fully seat.
4. Three piece 2nd gear blocker ring assembly, with thrust washer, to 2nd gear.

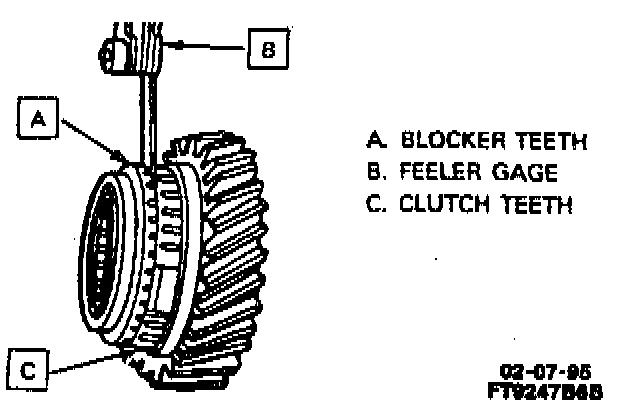

Measure
- Gap between vertical faces of blocker teeth and clutch teeth. Nominal gap is 0.81 - 1.40 mm (0.032 - 0.055 in.) for new blocker ring assemblies.
