Power Window Switch: Service and Repair

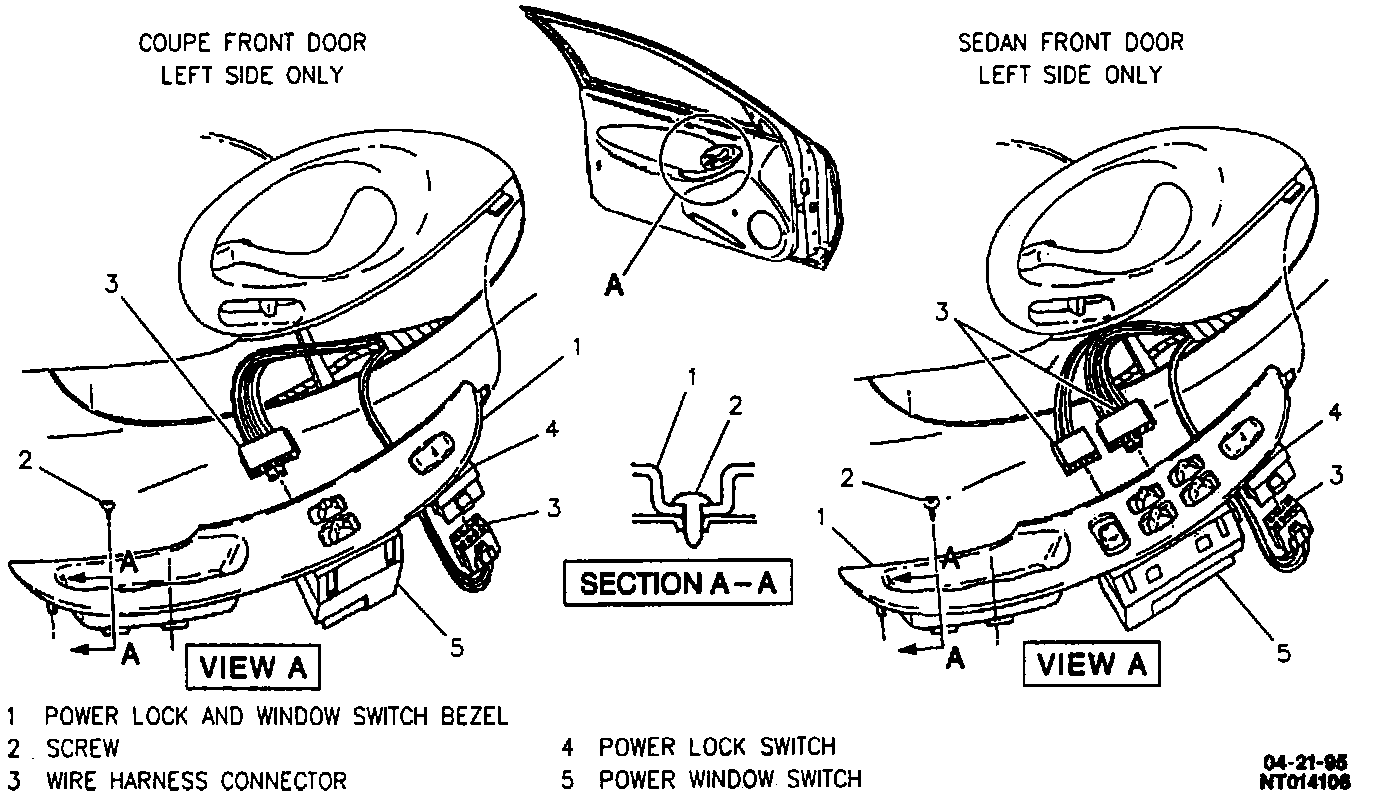

Front LH Power Door Lock & Window Switch:

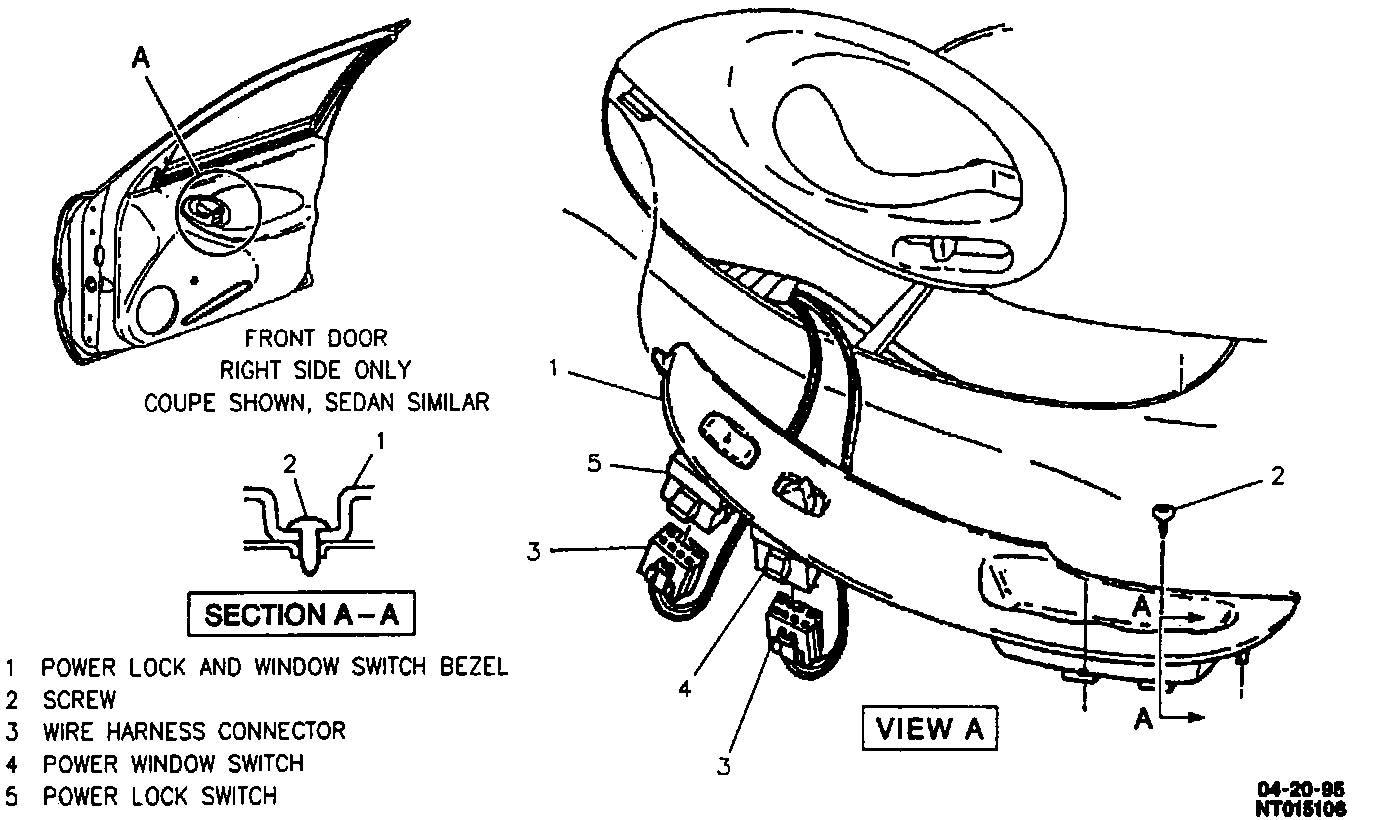

Front RH Power Door Lock & Window Switch:






Remove or Disconnect

1. Screws.
2. Bezel from door trim.
3. Wire harness connector from power door lock switch.
4. Wire harness connector from power door window switch.
5. Power door lock switch from bezel.
6. Power door window switch from bezel.

Install or Connect

1. Power door window switch to bezel.
2. Power door lock switch to bezel.
3. Wire harness connector to power door lock switch.
4. Wire harness connector to power door window switch.
5. Bezel to door trim.
6. Screws.
