Torque Specifications

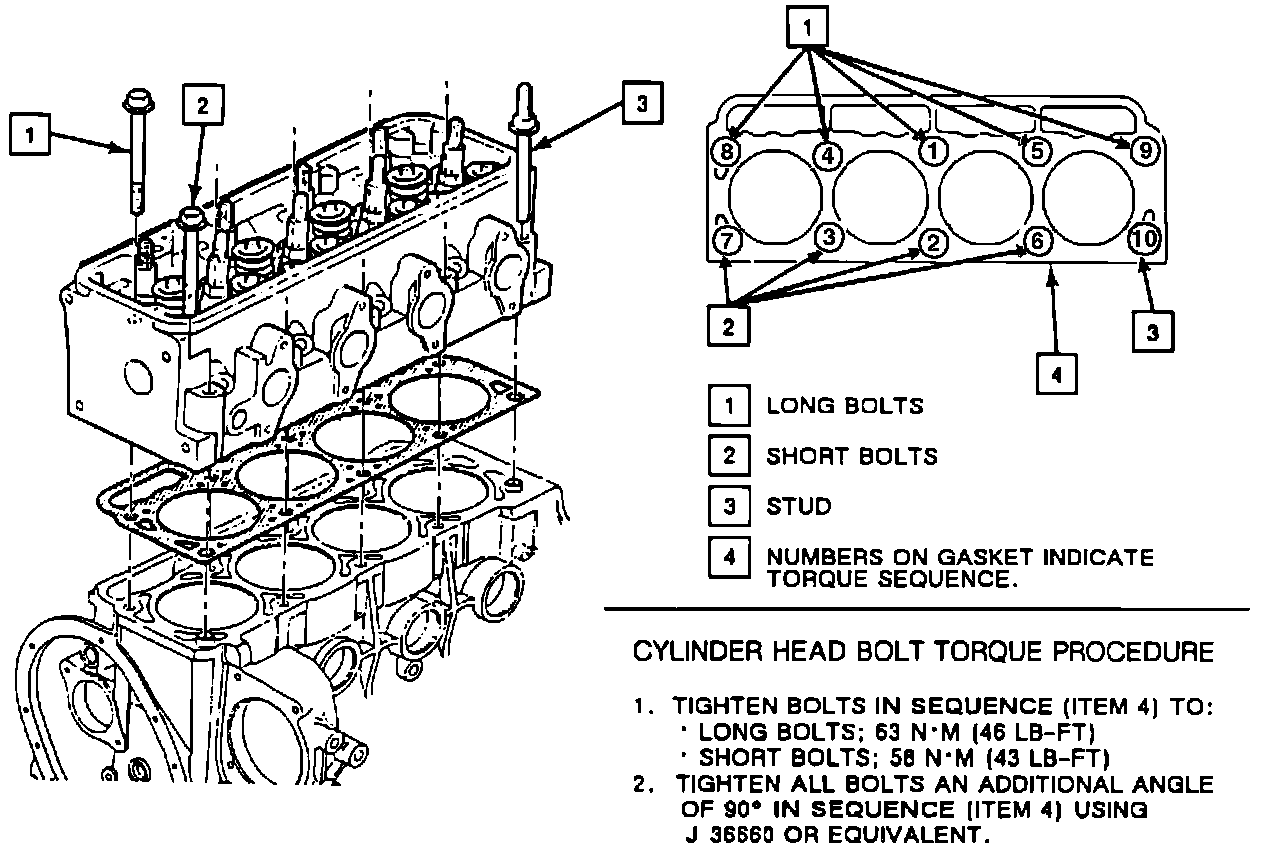

Cylinder Head BoltsCylinder Head Tightening Sequence & Torque Specifications:
In the sequence shown (refer to figure 11):
^
Torque long bolts to
63 Nm (46 ft lbs) ^
Torque short bolts to
58 Nm (43 ft lbs) ^
Tighten all bolts an additional angle of
90° (1/4 turn)
