Drive Belt: Service and Repair

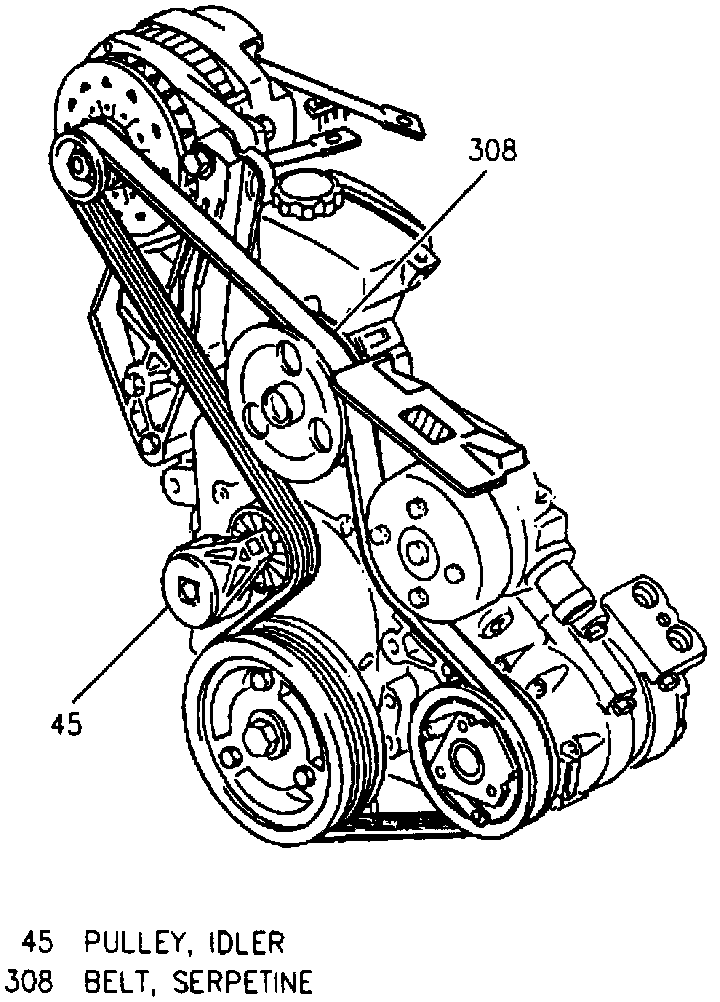

Fig. 18 Serpentine Belt Routing:
1.
Disconnect battery ground cable.
2.
Remove belt shield bolt and shield.
3.
Lift or rotate tensioner using a 3/8 inch breaker bar.
4.
Remove serpentine
drive belt.
5.
Reverse procedure to install. Refer to
Fig. 18 for belt routing.
