Wheel Alignment - Specifications Revised

File In Section: 3 - Steering/Suspension

Bulletin No.: 63-31-03

Date: October, 1996

SERVICE MANUAL UPDATE

Subject:
Section 3A - Revised Wheel Alignment Specifications

Model:
1997 Pontiac Grand Prix

This bulletin is being issued to revise the wheel alignment specifications found in Section 3A of the Service Manual.

Important:
All units listed are in degrees.





Front Wheel Alignment Specifications

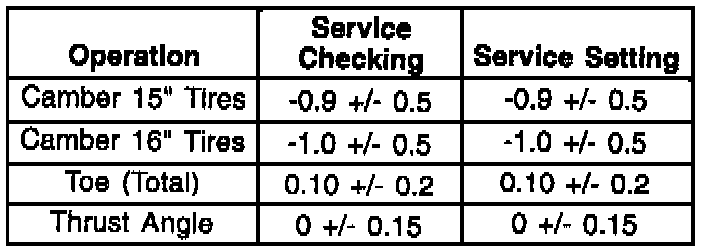

Rear Wheel Alignment Specifications
