Throttle Body Torque and Sequence

The Throttle Body is an intergal part of the Upper Manifold Assembly.

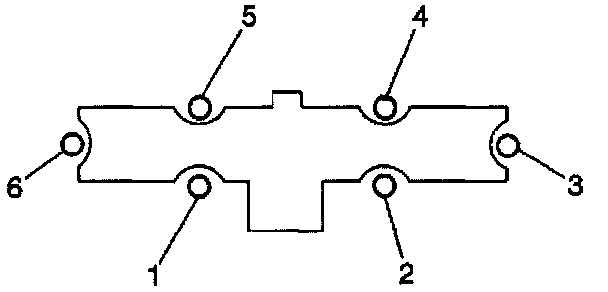

Tighten the upper manifold bolts/studs to the tightening sequence shown. Tighten the upper manifold bolts/studs to 30 Nm (22 lb. ft.).
